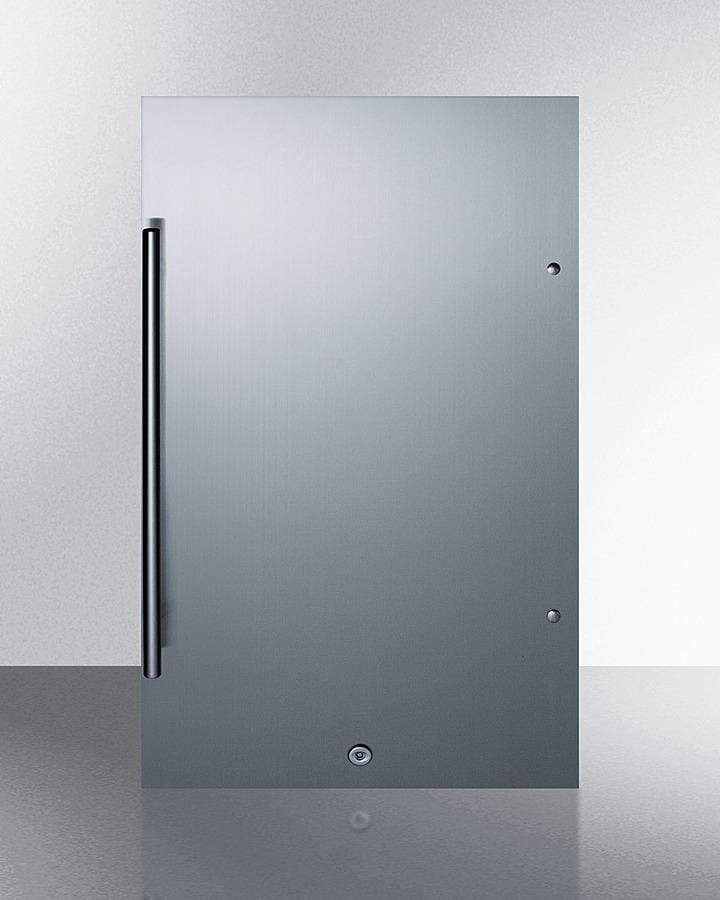

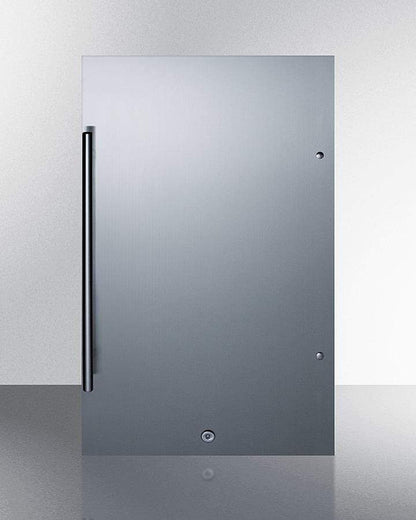

Summit Commercially Approved, ENERGY STAR Certified Outdoor All-Refrigerator for Built-In or Freestanding Use with a Shallow 17.25" Depth, Stainless Steel Door, and Front Lock / SPR196OS
Summit brings energy efficiency to the outdoors with the SPR196OS, an ENERGY STAR certified all-refrigerator approved for outdoor use.

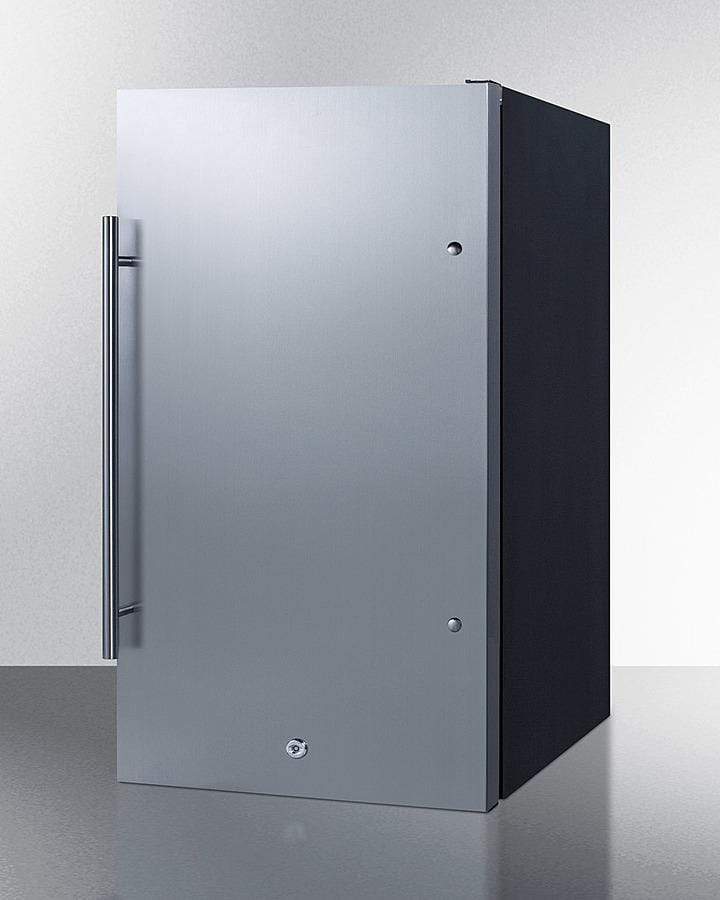

The SPR196OS features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a jet black cabinet with a sealed back for safe installation outdoors and protection from the elements. The user-reversible stainless steel door adds durability and elegance to any outdoor setting and the stainless steel pro-style handle completes the look. A factory-installed lock keeps contents secure, while a right-angle plug and integrated hinge provide added flexibility in placing the unit. Two leveling legs keep the unit level on uneven surfaces.

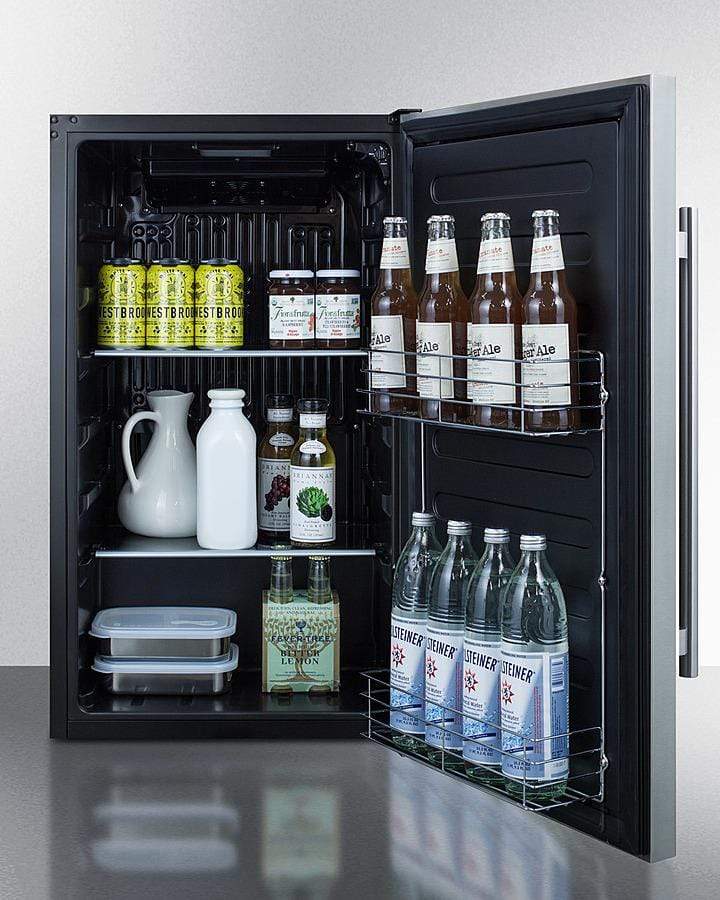

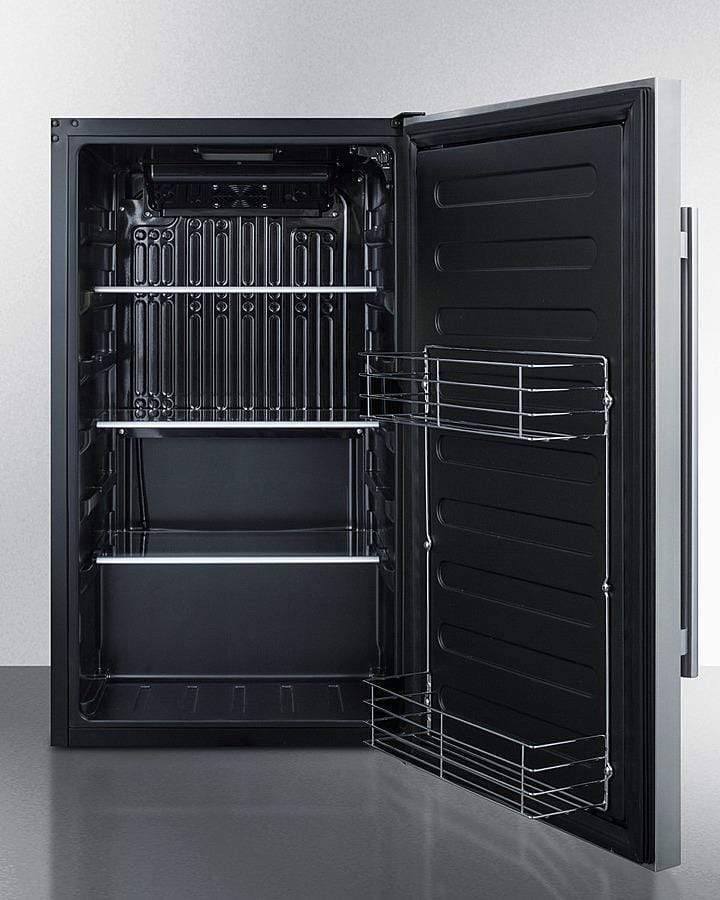

Inside, the SPR196OS utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.
The SPR196OS is ENERGY STAR certified and designed for built-in or freestanding outdoor use. For a similar unit with a glass door, see the SPR489OS.
FEATURES:
|
100% CFC free - Environmentally friendly design does not contain ozone-damaging chemicals |
Factory installed lock - Keyed lock offers added security, with two keys included |
|
17.25" shallow depth - Ideal for home wet bars, island kitchens, and other applications with limited footprint space |
Fully finished black cabinet - Allows the unit to be used freestanding |
|
Adjustable shelves - Three glass shelves with brake system ensures safe, optimal storage |
LED lighting - Automatically illuminates when the door is open for an attractive and energy efficient view |
|
Adjustable thermostat - Dial thermostat with seven temperature settings offers easy temperature management |
Professional handle - Stainless steel handle adds an attractive touch |
|
Automatic defrost - Reduced user maintenance with auto defrost system |
Reversible door - User-reversible door swing makes it easy to adjust to your setting as needed |
|
Black interior finish - Allows for easy cleaning and organization within the interior of the unit |
Right-angle plug - Provides flexibility in unit placement without needing added depth |
|
CARB Compliant - Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations |
Sealed back - Space saving design with easier cleanability and added protection from the elements |
|
Commercially approved - ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings |
Stainless steel door - Stainless steel door affords added durability |
|
Door racks - Two chrome racks accommodate a variety of sizes for optimal interior storage |
Versatile construction - Versatile design allows for residential use |
|
ENERGY STAR certified - Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs |
Weatherproof design - Approved for use in the outdoors with a stainless steel door for added durability |
SPECIFICATIONS:
Overview
| Height of Cabinet |
33.0" (84 cm) |
| Width |
19.0" (48 cm) |
| Depth |
17.25" (44 cm) |
| Depth with Handle |
19.0" (48 cm) |
| Depth with door at 90° |
35.0" (89 cm) |
| Capacity |
3.13 cu.ft. (89 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
259.0kWh/year |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
70.0 lbs. (32 kg) |
| Shipping Weight |
75.0 lbs. (34 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101065441 |
Refrigerator Features
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.88oz. |
| High Side PSI |
320 |
| Low Side PSI |
120 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
34 to 50ºF |
| Sound Level |
33.4 dB |
Dimensions
| Interior Height |
29.0" (74 cm) |
| Interior Width |
16.0" (41 cm) |
| Interior Depth |
12.75" (32 cm) |
| Compressor Step Height |
7.0" (18 cm) |
| Compressor Step Width |
16.0" (41 cm) |
| Compressor Step Depth |
6.25" (16 cm) |
AVAILABLE UPGRADES:
Exterior
| HG - Hospital grade cord |
Add a hospital grade cord equipped with green dot plug with the HG suffix |
| Latch for door |
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles |
| LHD - Left hand door swing |
Door reversal to left hand swing |
| Extra key |
Extra keys available for purchase |
| ODA - Open door alarm |
Add an open door alarm to audibly buzz when the door is left ajar. |
OTHER AVAILABLE MODEL:
| SPR196OS24 |
24" Wide Outdoor All-Refrigerator for Built-In or Freestanding Use with a Shallow 17.25" Depth, Slide-Out Storage Compartment, Stainless Steel Exterior, Outdoor Cover, and Front Lock
|
| SPR196OSCSS |
Commercially Approved, ENERGY STAR Certified Outdoor All-Refrigerator for Built-In or Freestanding Use with a Shallow 17.25" Depth, Stainless Steel Door and Cabinet, and Front Lock
|
| SPR196OSADA |
Commercially Approved, ADA Compliant, ENERGY STAR Certified Outdoor All-Refrigerator for Built-In or Freestanding Use with a Shallow 17.25" Depth, Stainless Steel Door, and Front Lock
|
RESOURCES:
BROCHURE
USE & CARE
TECHNICAL DRAWING
ENERGY GUIDE
