Summit's shallow depth series of built-in undercounter refrigeration includes residential outdoor options with pull-out side compartments for added storage convenience in a modern style.

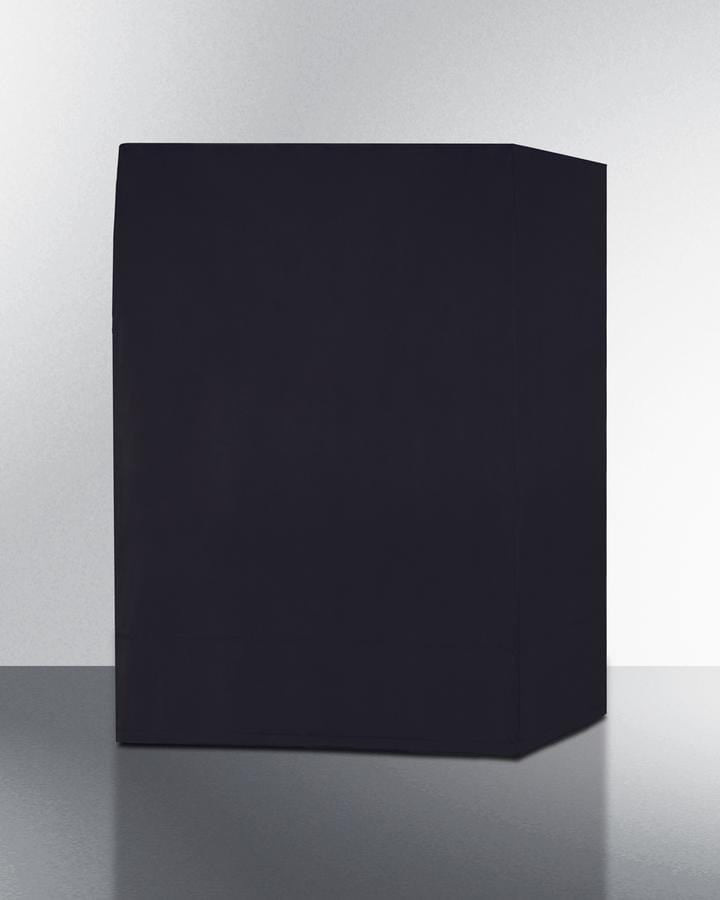

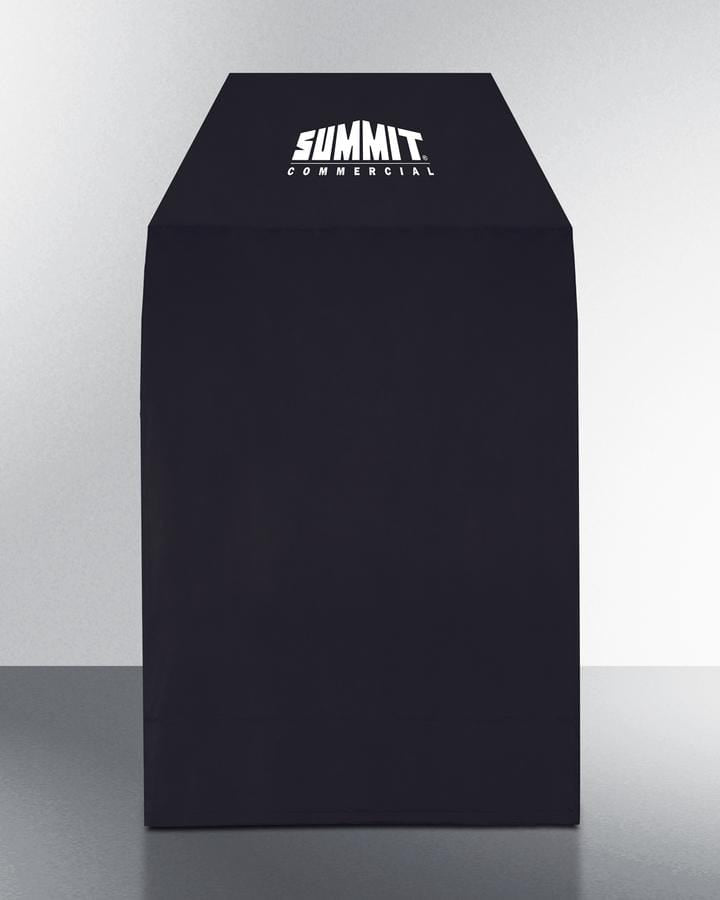

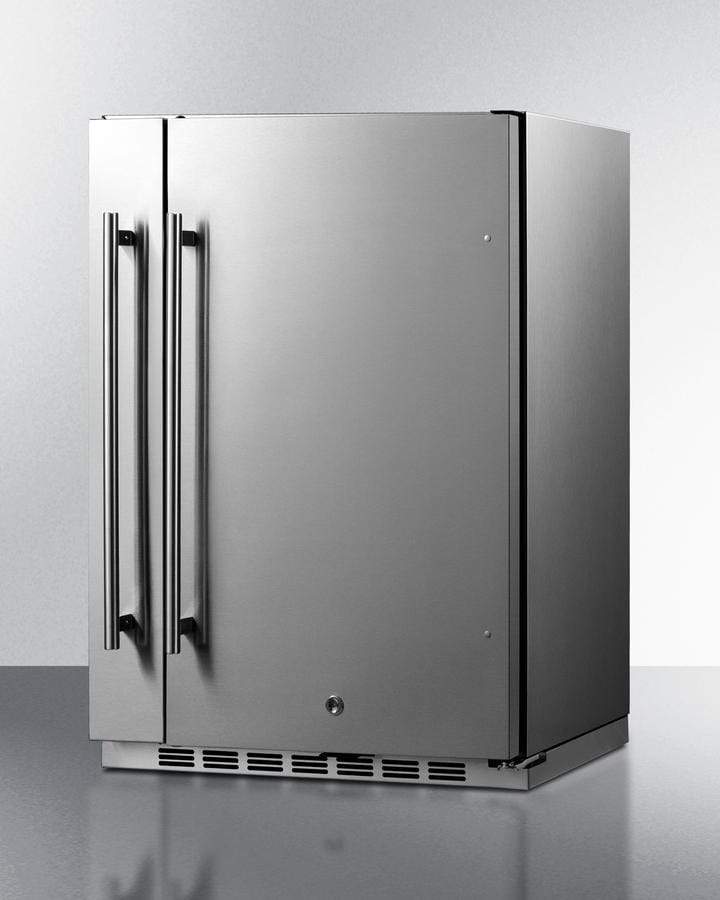

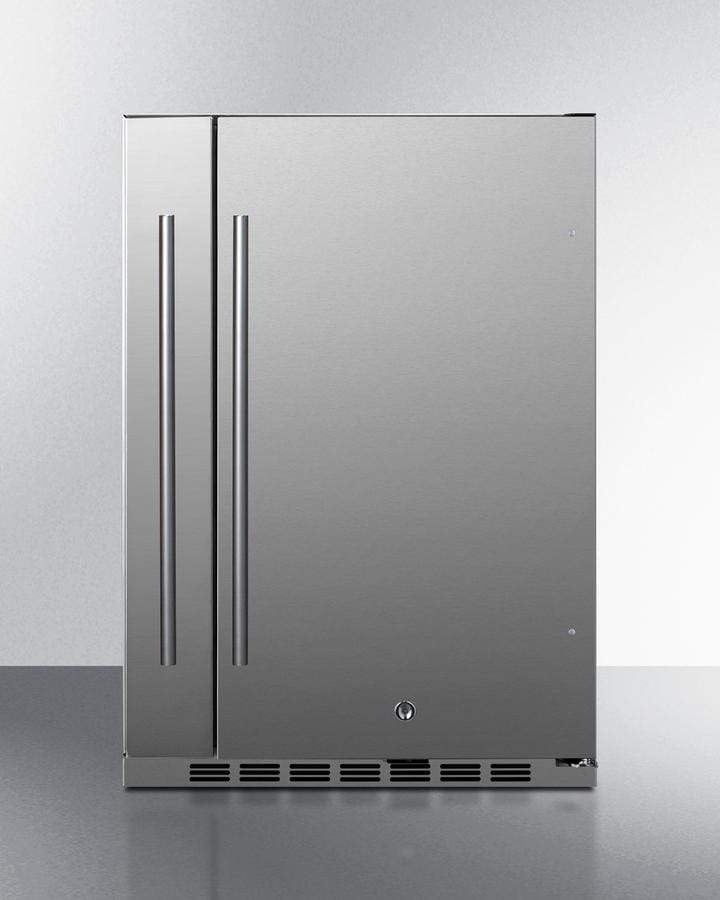

The SPR196OS24 is sized at just 24 inches wide and 17.25 inches deep, with a front-breathing design for built-in installation under counters and a fully finished stainless steel wrapped cabinet to also allow freestanding use. The sealed back ensures safe installation outdoors and protection from the elements. The stainless steel refrigerator door and storage drawer front bring elegance to any setting, with pro-style handles to complete the look. A factory-installed lock offers added security in the refrigeration compartment, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. For added protection against the elements, we include a vinyl outdoor cover to ensure proper protection while not in use. Two leveling legs keep the unit level on uneven surfaces.

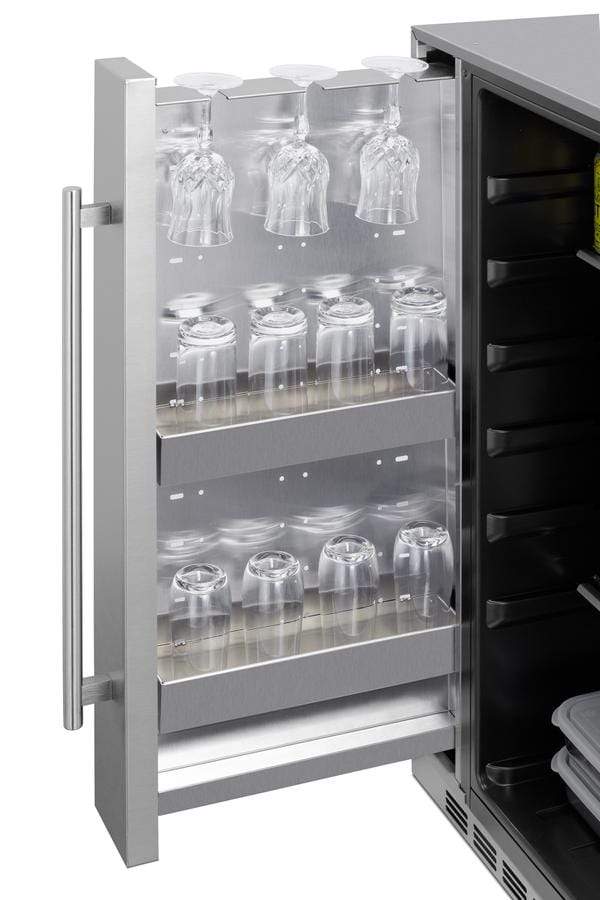

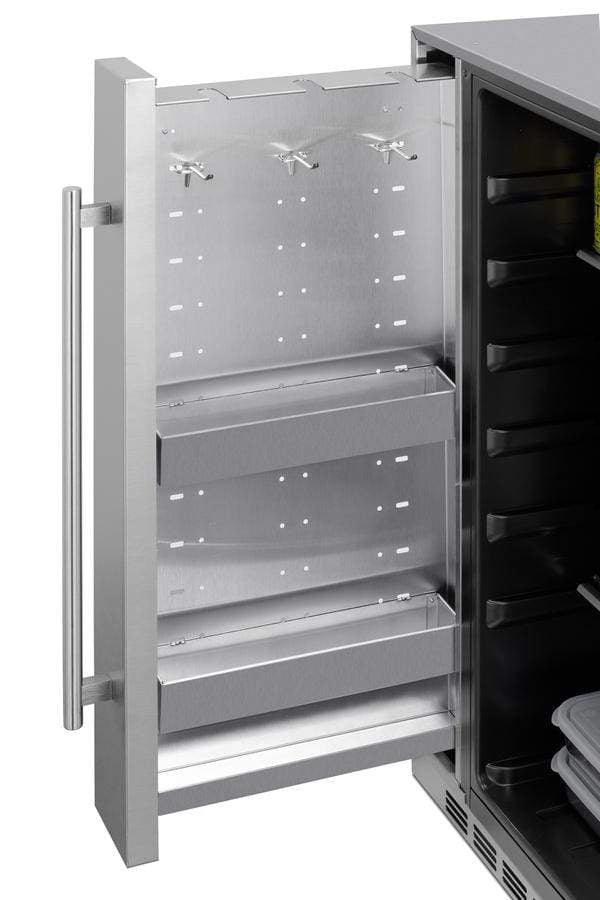

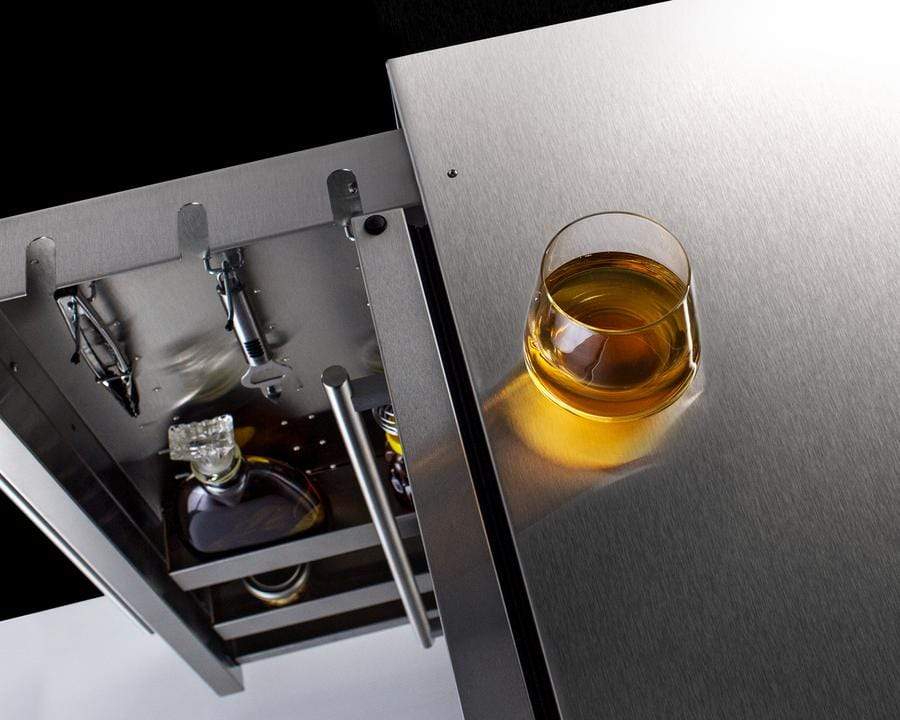

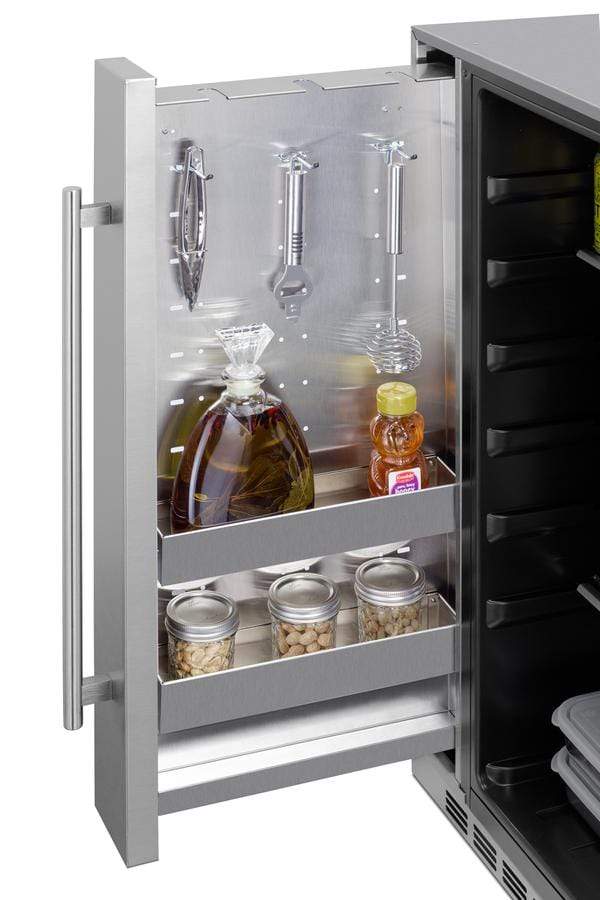

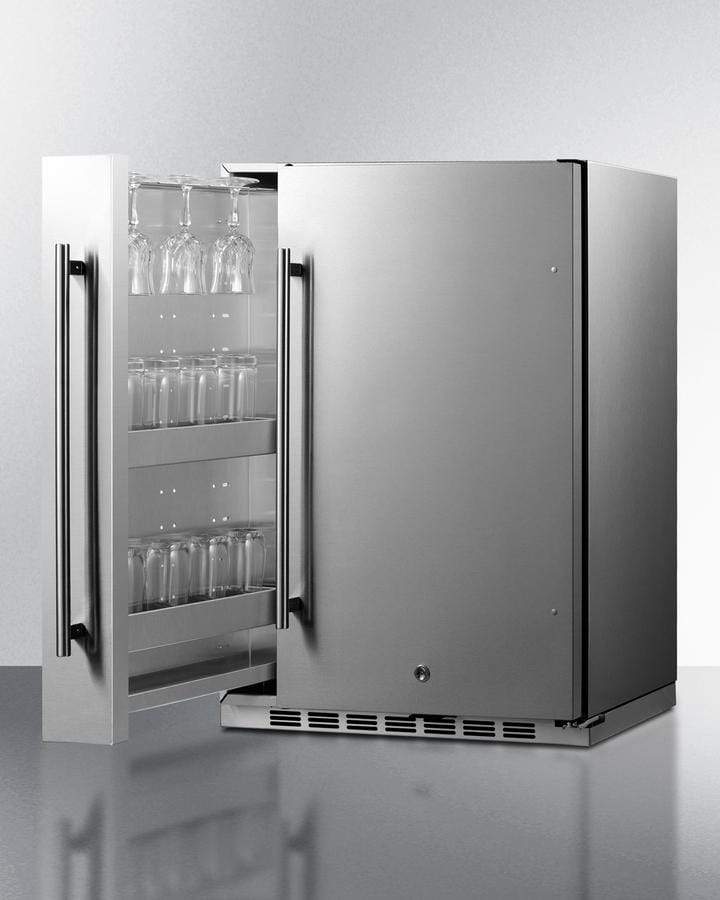

For added storage convenience, this unit includes a non-refrigerated pull-out storage compartment in complete stainless steel, with a matching handle to the refrigerator section. The interior features two height adjustable stainless steel full-width shelves providing storage space for non-heat sensitive items such as glassware and sealed, shelf-stable foods including canned goods, dried fruits, crackers, and certain boxed foods like mac and cheese. We include three adjustable two-prong peg hooks that let you hang lighter accessories such as tongs and other cooking utensils. The upper part of the cabinet is slotted, allowing you to suspend slimmer glasses from the ceiling.

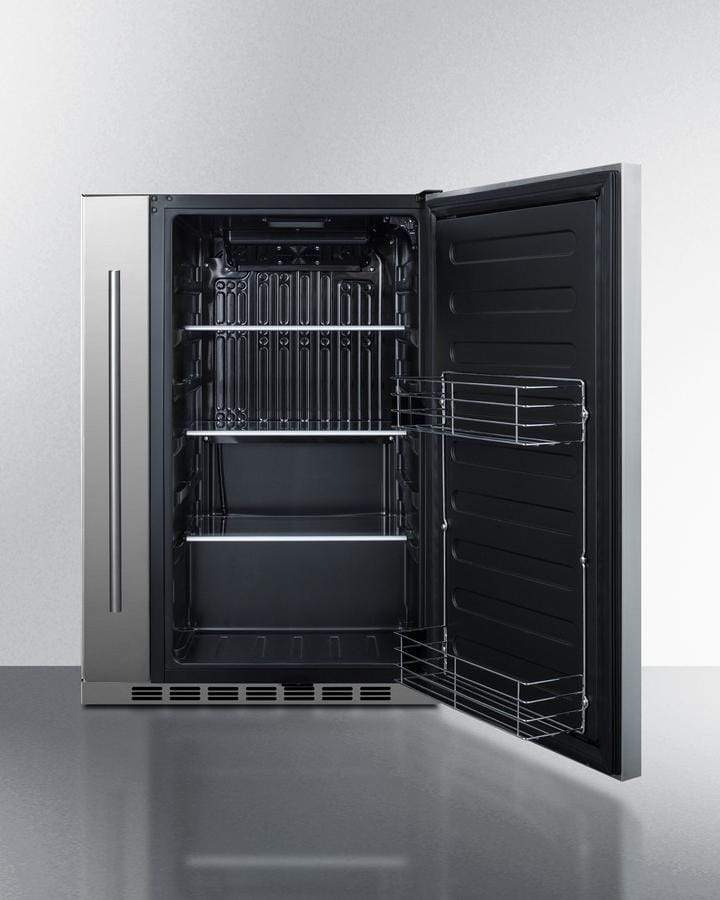

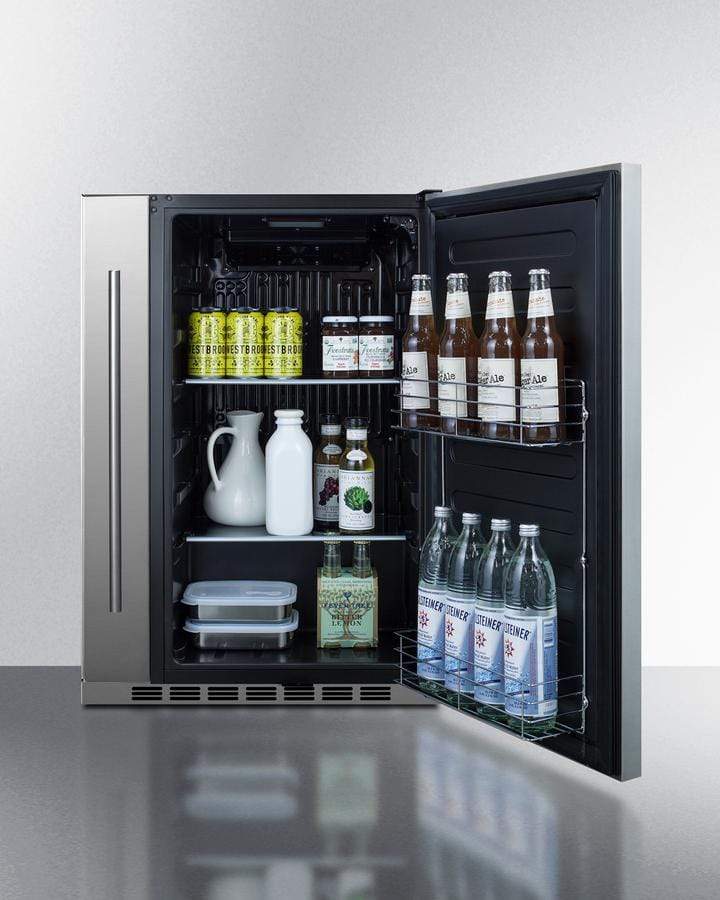

Inside, the SPR196OS24 utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.
With its unique space-saving design and convenient shallow depth fit, the SPR196OS24 is the perfect addition to any outdoor home bar or residential space.
| Height of Cabinet | 34.25" (87 cm) |
| Width | 23.75" (60 cm) |
| Depth | 17.25" (44 cm) |
| Depth with Handle | 19.0" (48 cm) |
| Depth with door at 90° | 35.0" (89 cm) |
| Capacity | 3.13 cu.ft. (89 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079097 |
| Door Swing | RHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.88oz. |
| High Side PSI | 320 |
| Low Side PSI | 120 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 34 to 50ºF |
| Sound Level | 33.4 dB |
| Interior Height 1 | 29.0" (74 cm) |
| Interior Width 1 | 4.25" (11 cm) |
| Interior Depth 1 | 12.75" (32 cm) |
| Interior Height | 29.0" (74 cm) |
| Interior Width | 16.0" (41 cm) |
| Interior Depth | 12.75" (32 cm) |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 16.0" (41 cm) |
| Compressor Step Depth | 6.25" (16 cm) |
| Extra key | Extra keys available for purchase |
| SPR196OS |
Commercially Approved, ENERGY STAR Certified Outdoor All-Refrigerator for Built-In or Freestanding Use with a Shallow 17.25" Depth, Stainless Steel Door, and Front Lock |
| SPR196OSCSS |
Commercially Approved, ENERGY STAR Certified Outdoor All-Refrigerator for Built-In or Freestanding Use with a Shallow 17.25" Depth, Stainless Steel Door and Cabinet, and Front Lock |
| SPR196OSADA |
Commercially Approved, ADA Compliant, ENERGY STAR Certified Outdoor All-Refrigerator for Built-In or Freestanding Use with a Shallow 17.25" Depth, Stainless Steel Door, and Front Lock |
BROCHURE
USE & CARE
TECHNICAL DRAWING
ENERGY GUIDE
