Summit's line of commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor kitchen space.

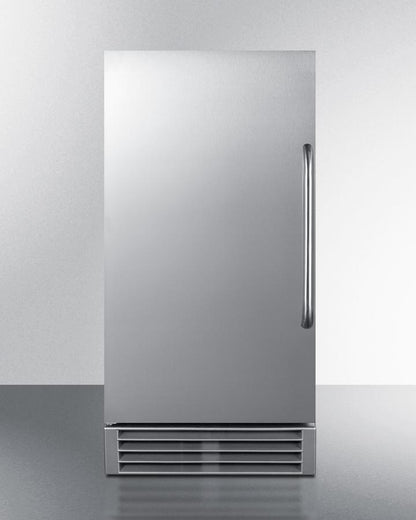

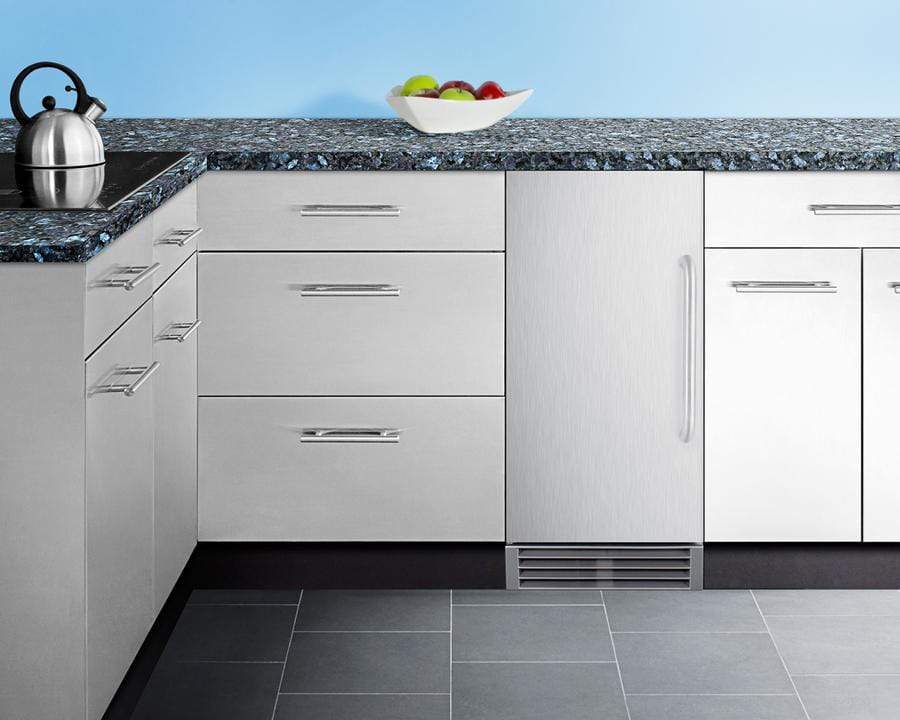

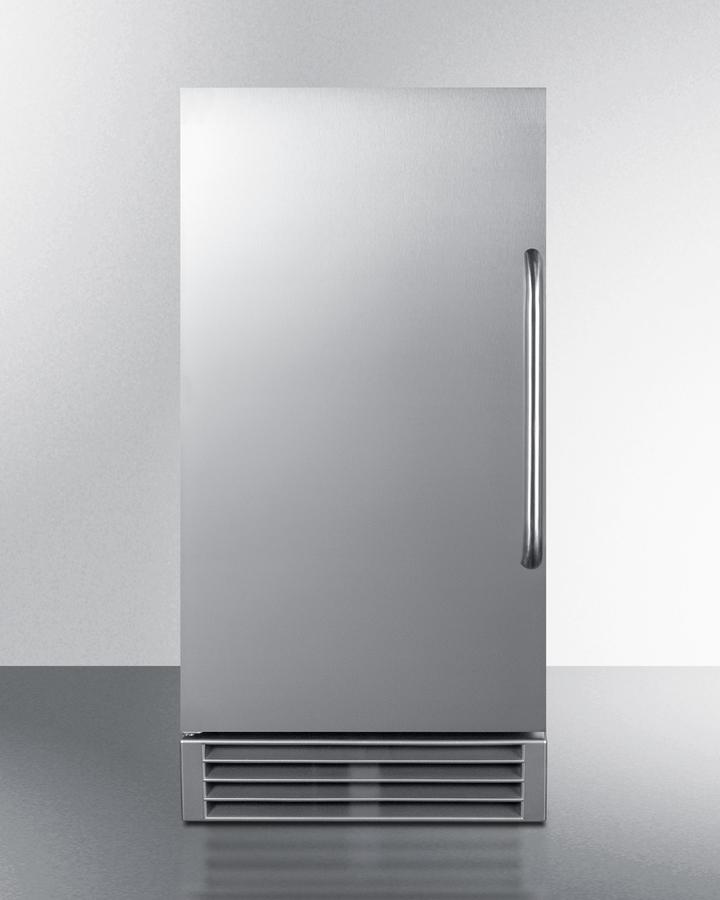

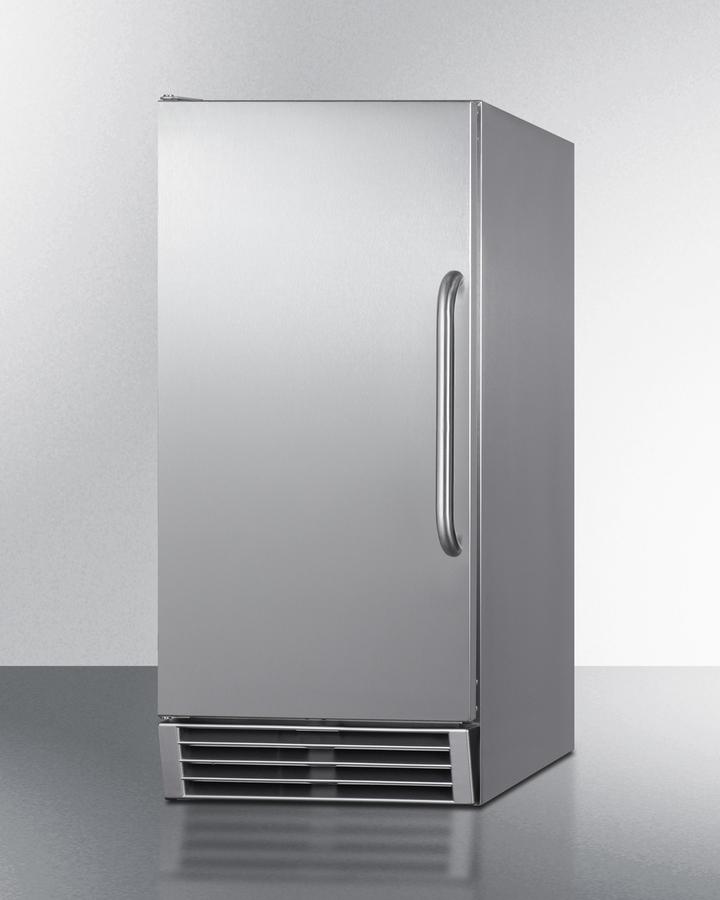

ENERGY STAR certified for commercial use, BIM47OS features a complete stainless steel exterior specially built to hold up to the outdoor elements. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home.

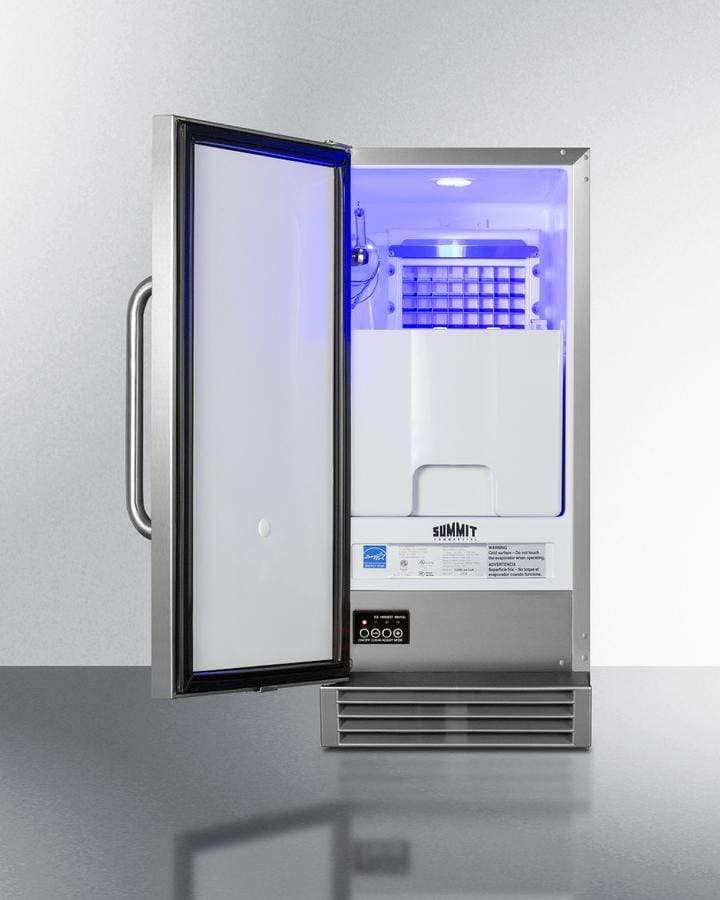

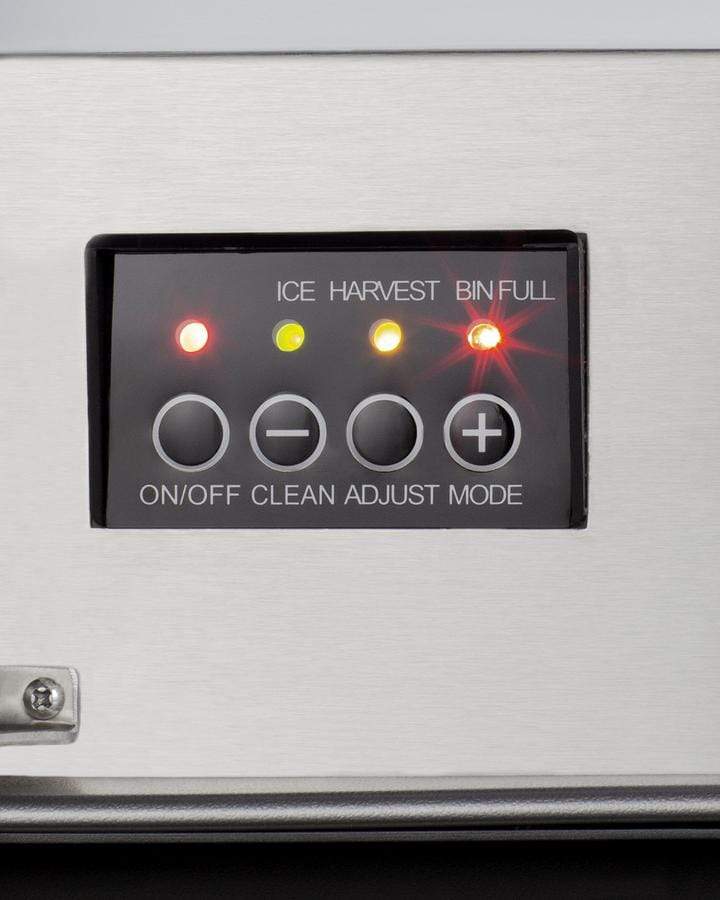

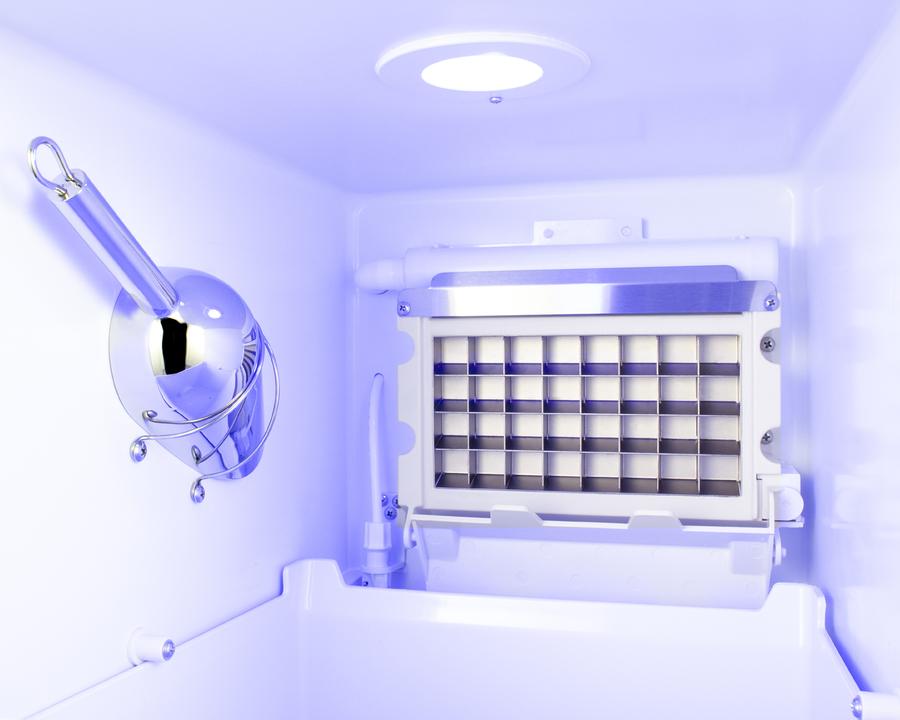

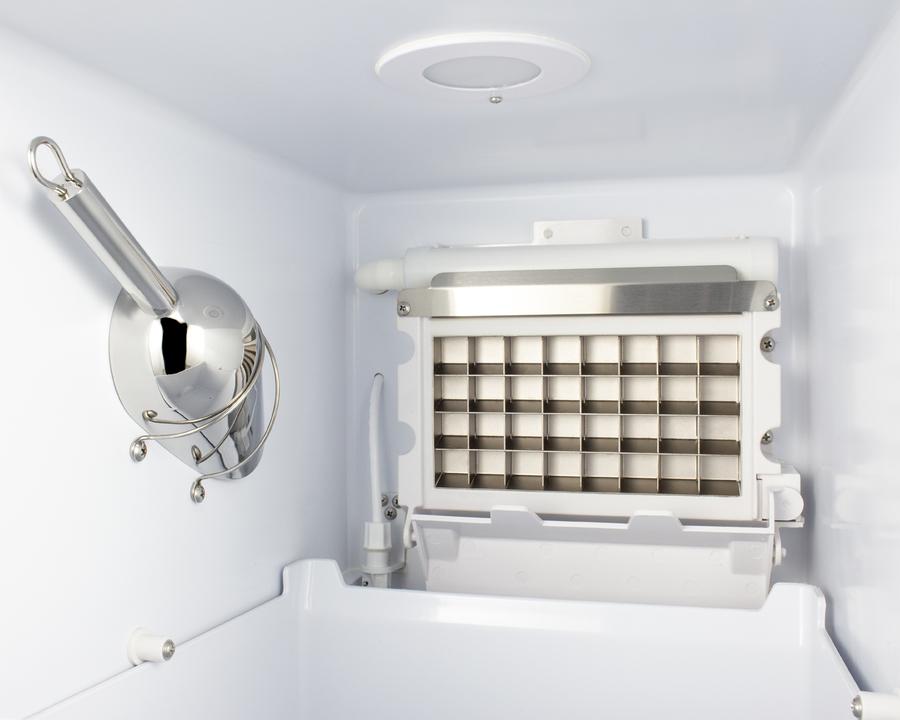

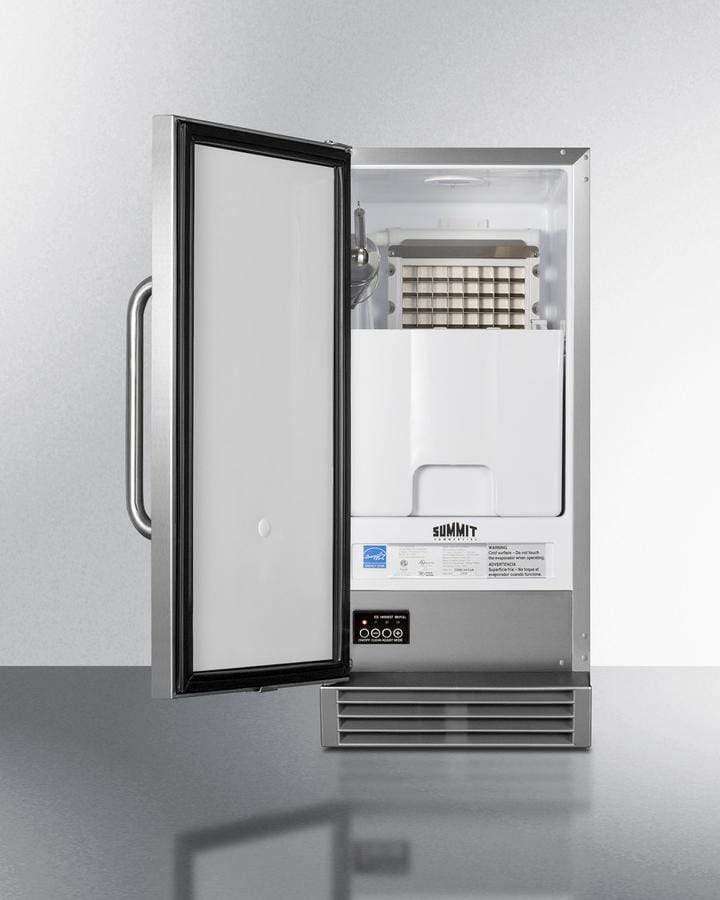

Inside, the BIM47OS has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 50 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided stainless steel scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces.
Sized at 15" wide, BIM47OS is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For an ADA compliant version of this unit, see the BIM47OSADA.
| Height of Cabinet | 33.0" (84 cm) |
| Width | 14.5" (37 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 36.75" (93 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067742 |
| Door Swing | LHD |
| Reversible | Yes |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350 |
| Low Side PSI | 130 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
| Level Legs | 4 |
| RHD - Right hand door swing | Door reversal to right hand door swing |
| Latch for door | Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles |
BROCHURE
USE & CARE
TECHNICAL DRAWING BIM47OS_T.pdf
TECHNICAL DRAWING (.dwg) BIM47OS-BIM44GCSS_ICE_MAKER__A-C_2018
