Details:
Summit 15" Wide 50 Lb. ADA Compliant Commercially Listed Outdoor Clear Icemaker with Automatic Defrost, Internal Pump, and Complete Stainless Steel Exterior / BIM47OSADA
Summit's line of commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor kitchen space.

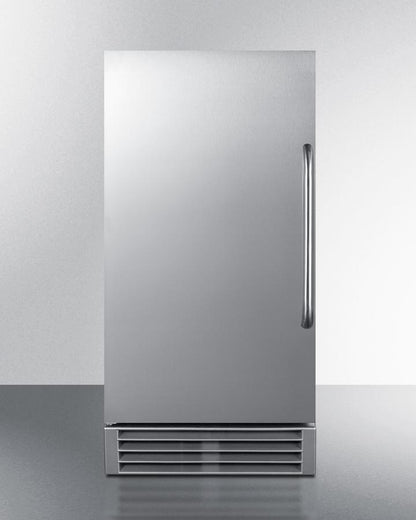

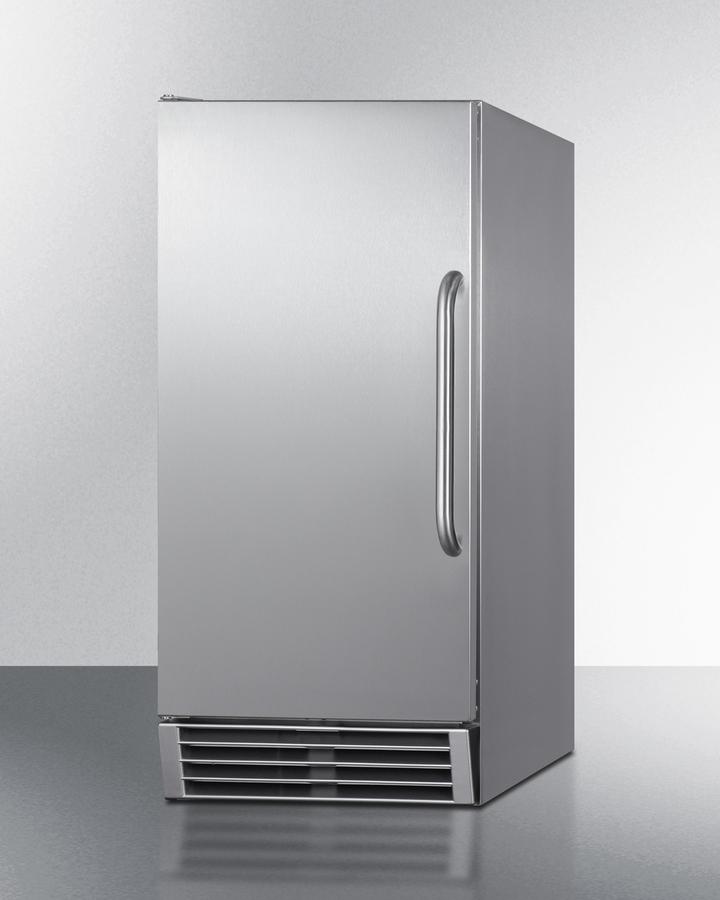

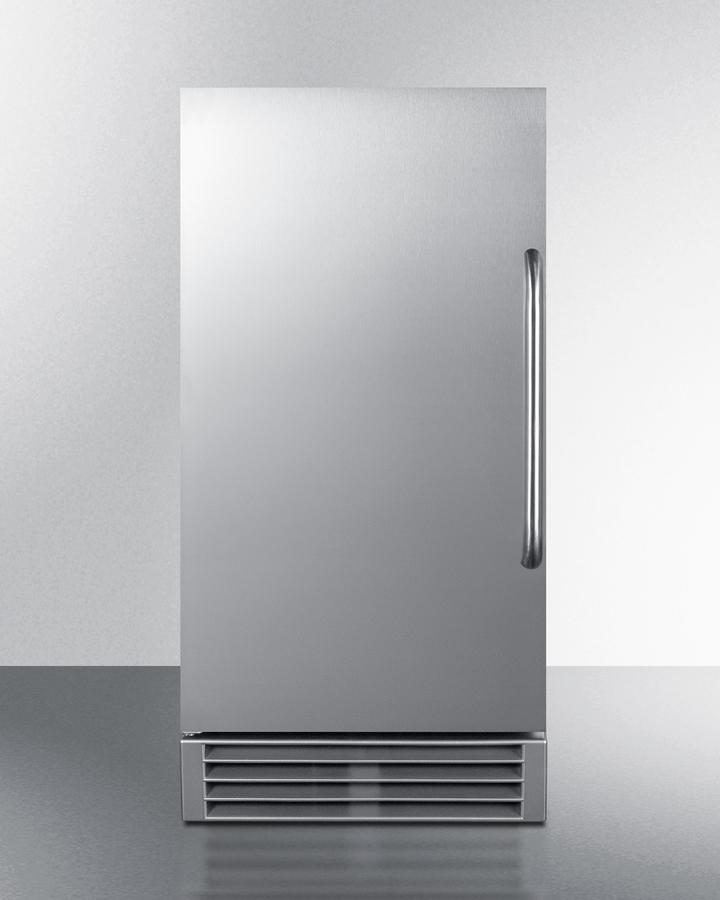

ENERGY STAR certified for commercial use, BIM47OSADA is just 32 3/8" high, ideal for use under lower counters following ADA compliant guidelines. It features a complete stainless steel exterior specially built to hold up to the outdoor elements. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home.

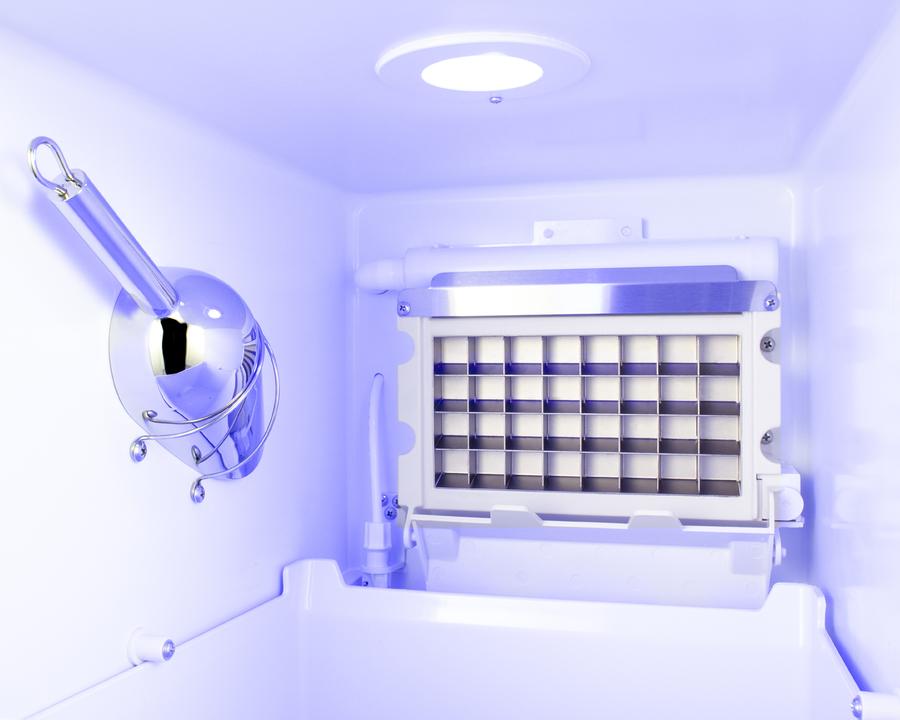

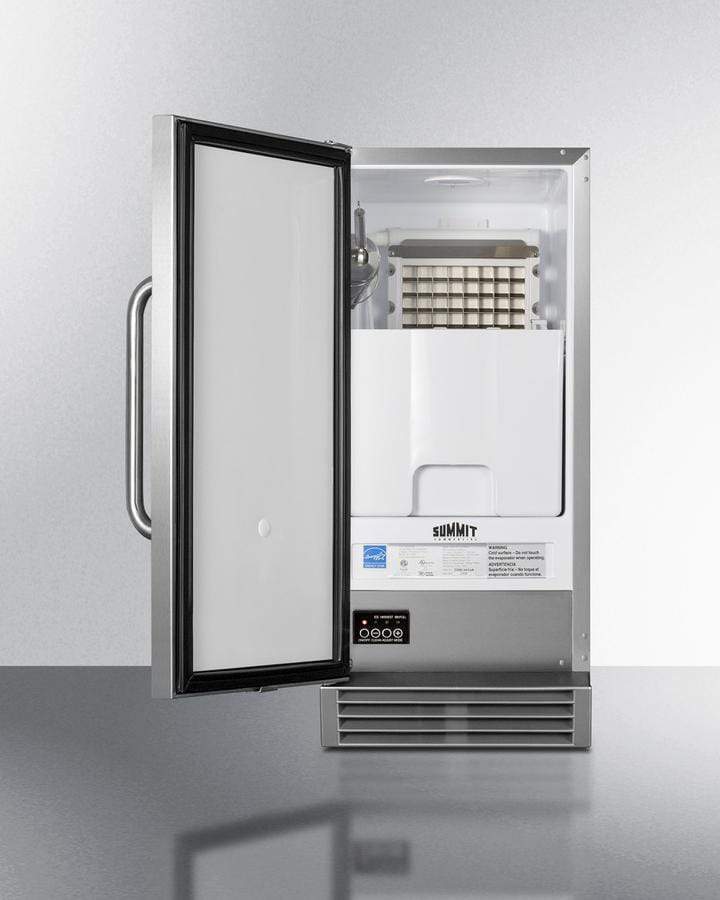

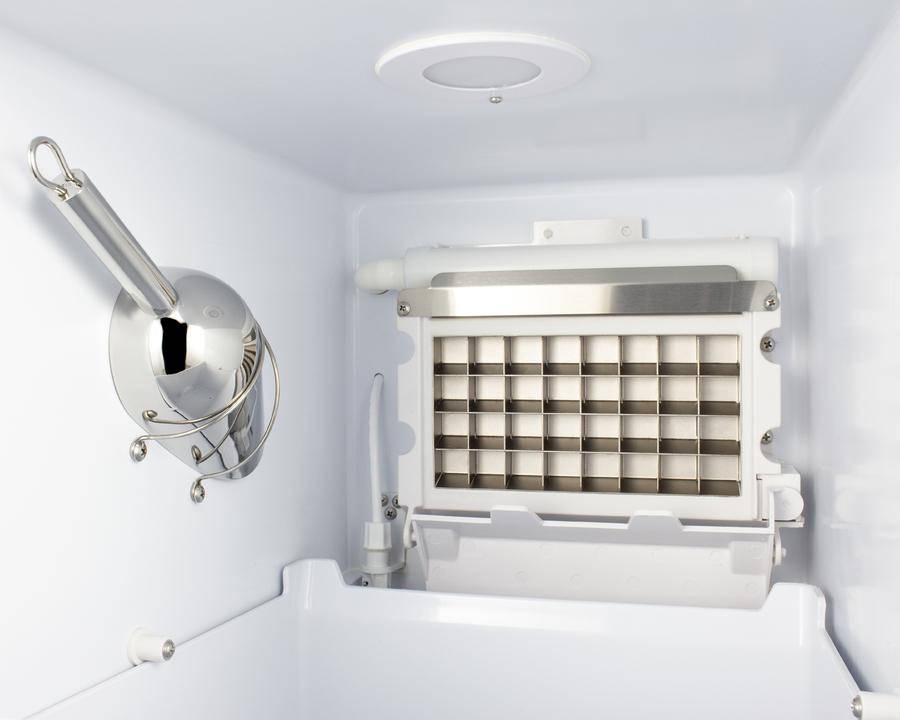

Inside, the BIM47OSADA has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 50 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided stainless steel scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces.
Sized at 15" wide, BIM47OSADA is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For this unit in a standard height, see the BIM47OS.
FEATURES:
|
100% CFC free - Environmentally friendly design without ozone-damaging chemicals |
Ice scoop included - Interior wall includes brackets to hang for easy storage |
|
50 lb. production capacity - Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.) |
Insulated storage bin - Ice stays solid longer in this cold-protected bin |
|
ADA compliant - 32 3/8" height fits under lower ADA compliant counters |
Interior light - Lighting in a soft blue hue for easy viewing of the interior |
|
Automatic defrost - Reduced maintenance with auto defrost system |
Leveling legs - Four leveling legs help to keep the unit level on uneven surfaces |
|

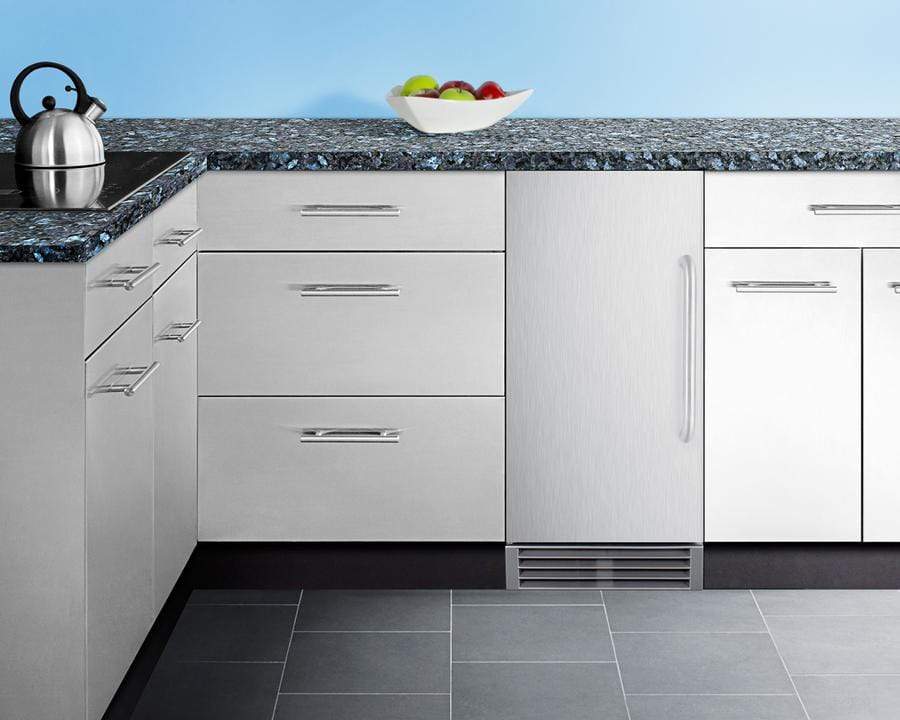

Built-in capable - Make the best use of space by installing your icemaker under the counter |
Professional towel bar handle - A curved handle in brushed stainless steel offers an easy grip |
|
Built-in pump - Internal pump affords more flexibility in placing the unit |
Reversible stainless steel door - User-reversible door swing for flexible placement |
|
Clear ice cube production - Produces 3/4" x 3/4" x 1" clear ice cubes |
Sealed back - Space saving design for easier cleanability |
|
Commercially approved - ETL-S listed to NSF-12 commercial standards |

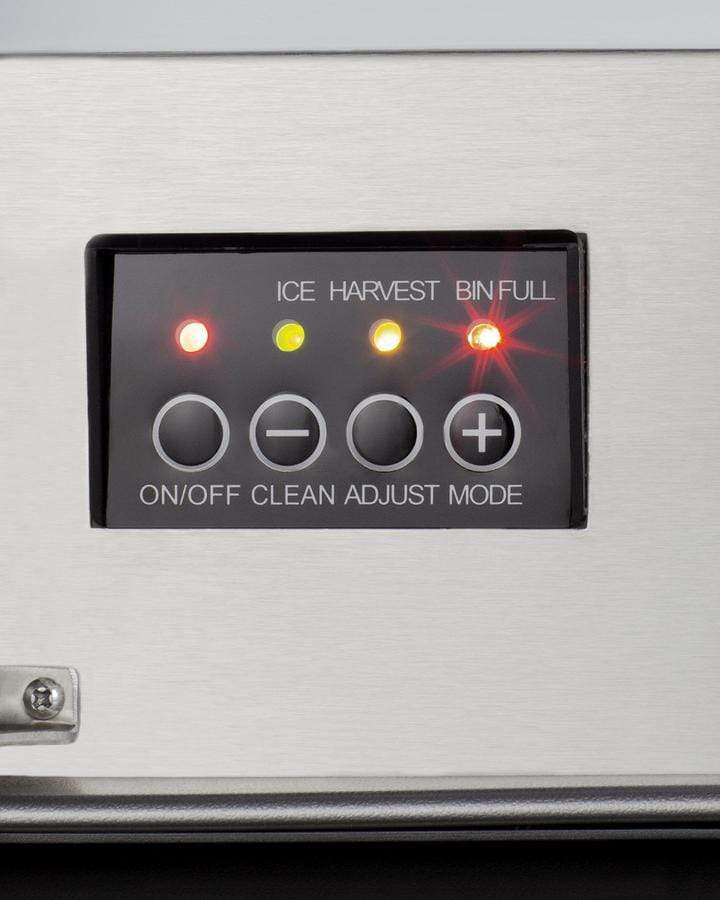

Touch control panel - Provides easy operation of the unit with indicator lights for each stage of the production process |
|
ENERGY STAR certified commercial performance - Efficient performance saves on energy use and costs |
Weatherproof design - Durable stainless steel construction for safe installation in outdoor spaces |
|
Fully finished stainless steel cabinet - Allows the unit to be used freestanding |
|
SPECIFICATIONS:
Overview
| Height of Cabinet |
32.38" (82 cm) |
| Width |
14.5" (37 cm) |
| Depth |
23.25" (59 cm) |
| Depth with Handle |
25.2" (64 cm) |
| Depth with door at 90° |
36.75" (93 cm) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
4.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
105.0 lbs. (48 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101067766 |
Icemaker
| Door Swing |
LHD |
| Reversible |
Yes |
| Drain Required |
Yes |
| Daily Ice Production |
50.0 lbs. (23 kg) |
| Ice Storage Capacity |
25.0 lbs. (11 kg) |
| Ice Shape |
Cube |
| Size of Cube |
7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
3.88 oz. |
| High Side PSI |
350 |
| Low Side PSI |
130 |
| Interior Height |
18.5" (47 cm) |
| Interior Width |
12.0" (30 cm) |
| Interior Depth |
16.0" (41 cm) |
| Level Legs |
4 |
AVAILABLE UPGRADES:
Exterior
| RHD - Right hand door swing |
Door reversal to right hand door swing |
| Latch for door |
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles |
RESOURCES:
BROCHURE
USE & CARE
TECHNICAL DRAWING
