What are the complete dimensions for the entire unit?

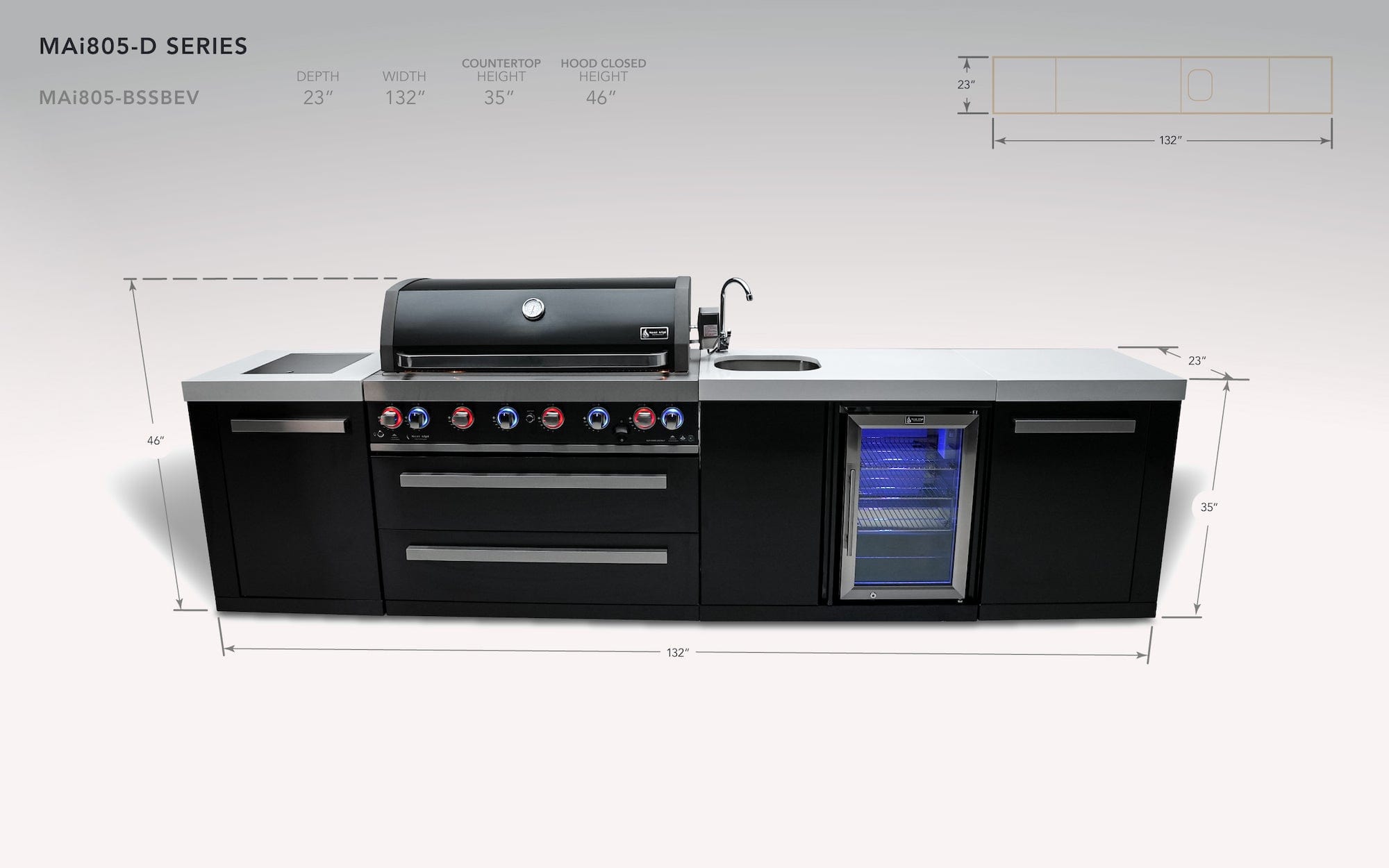

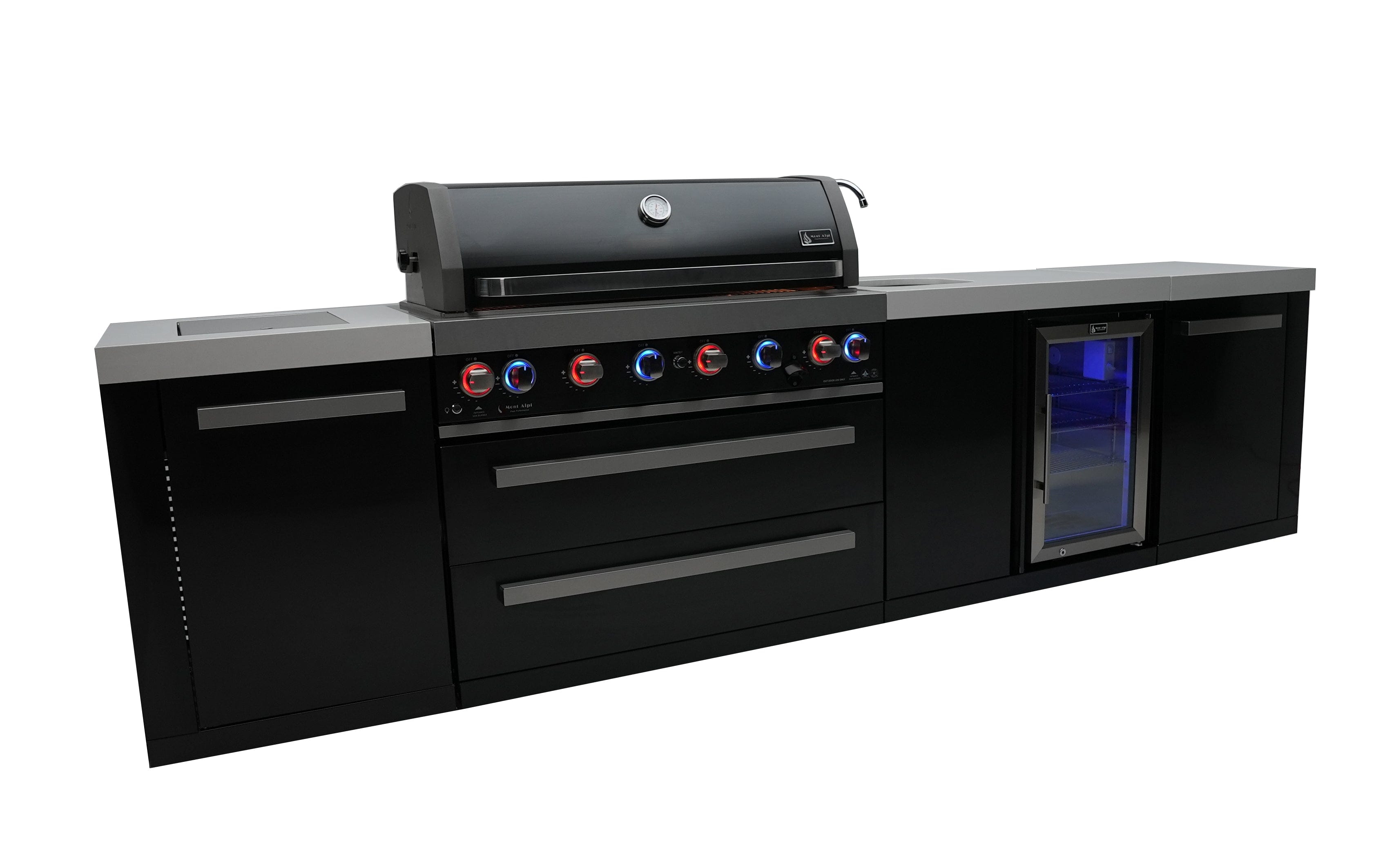

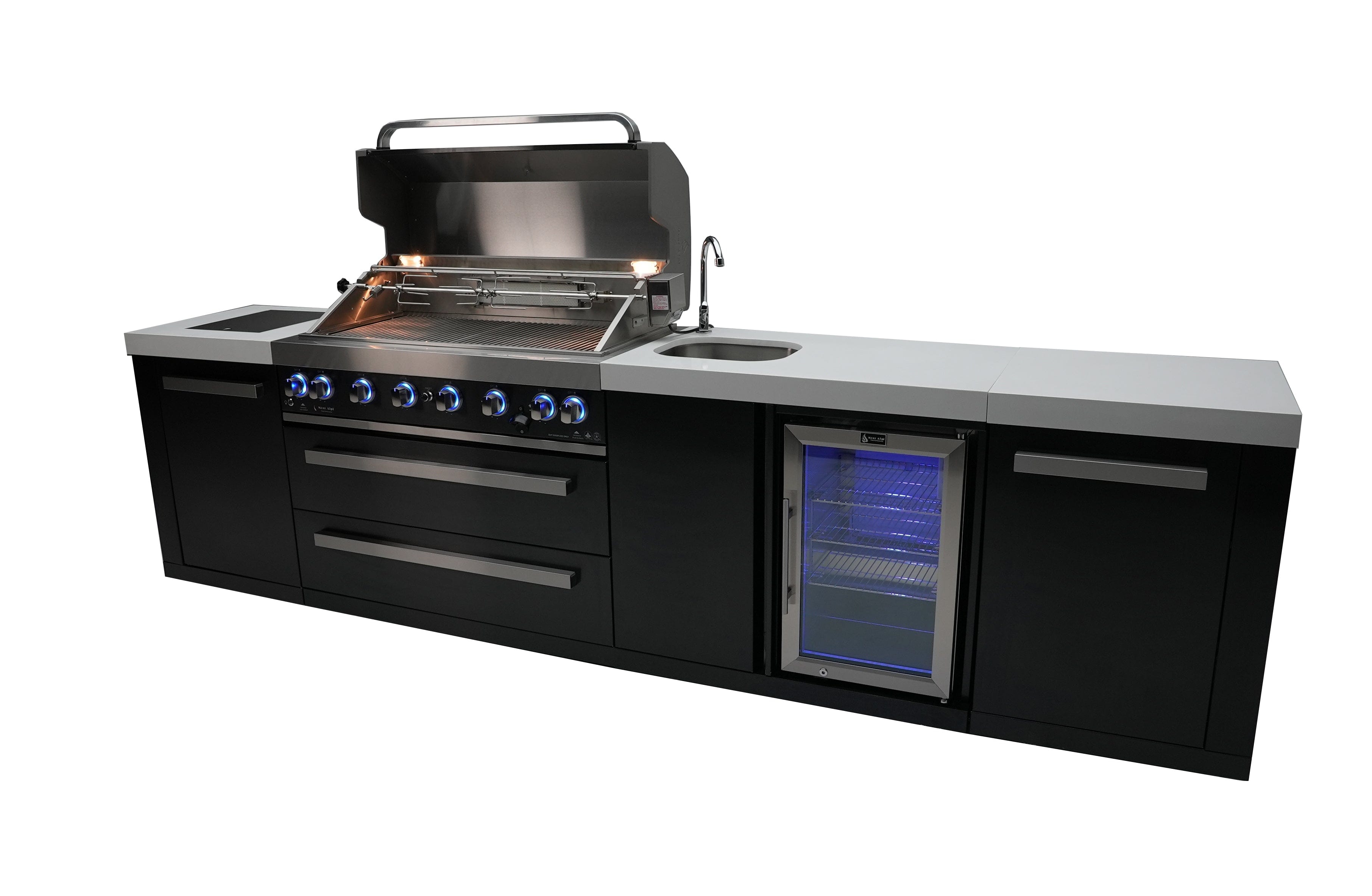

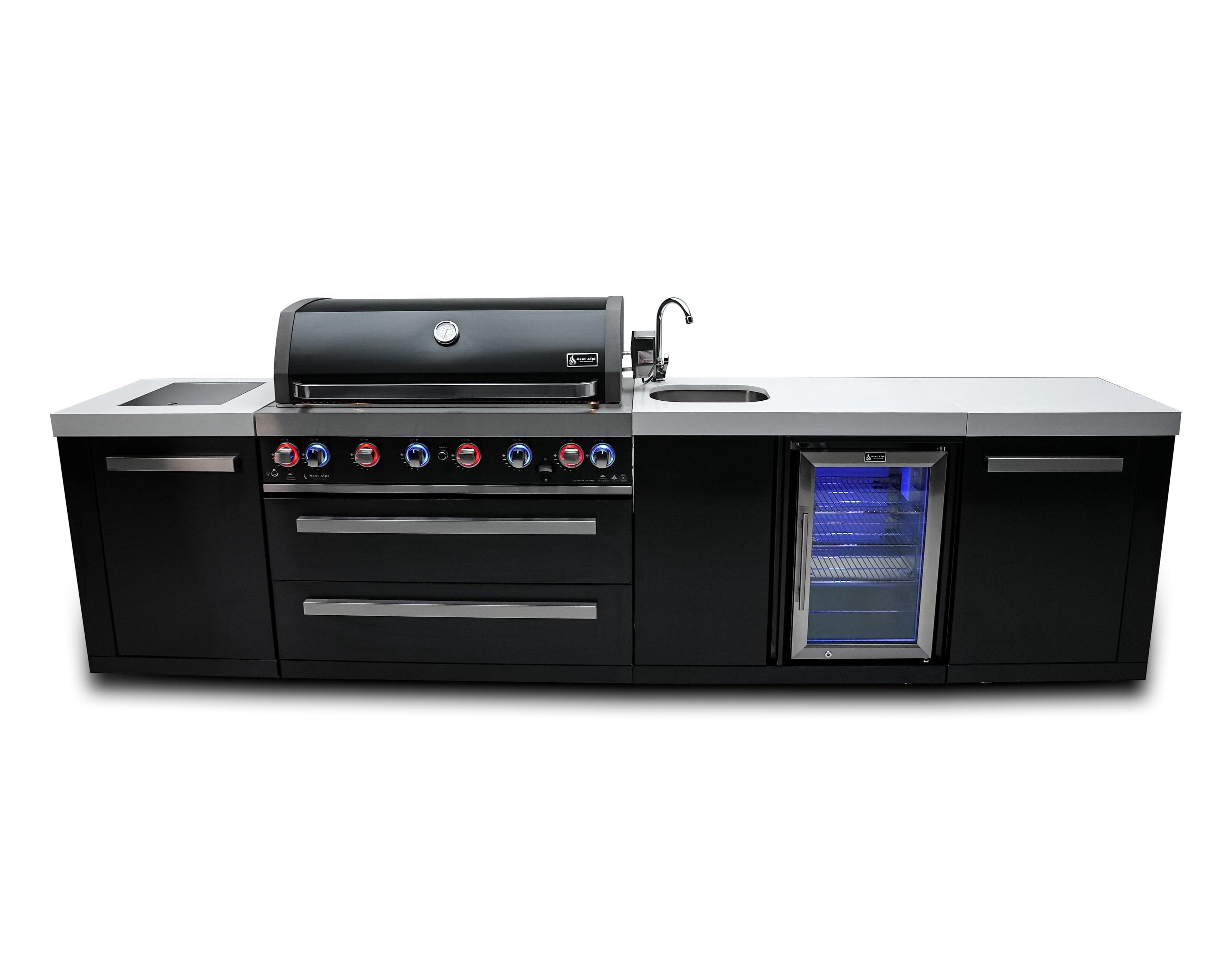

The MAi805-BSSBEV is 131 inches long by 23 inches deep. The counter height is 35 1/2 inches.
-
assuming this needs to be in a covered area and not outside in the elements?
It can be in an uncovered area, but you will need to use the cover. The one that it comes with will cover the entire island.
-
Could these set be against a wall ?
No, all of the venting and access is in the rear. You will need to give 5 inches of clearance for hood opening.
-
Can the arrangements of the cabinets be changed. I would need the sink to the far left and the grill to the far right
The beverage center ( sink/fridge) canbe placed on the far left. This will require drilling holes for the attachment hardware since the burner cabinet is a end unit.
-
is it one connection for gas for the grill and the side searing unit?
Yes, you just need one connection. It splits internally to go to the grill and side burner.
-

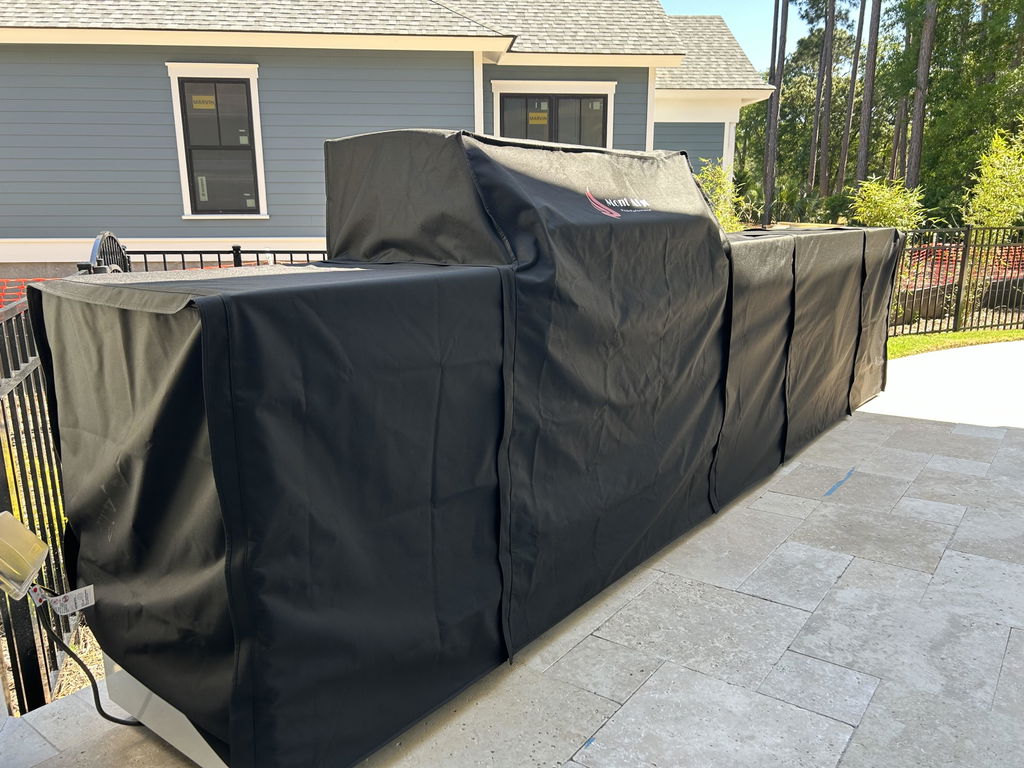

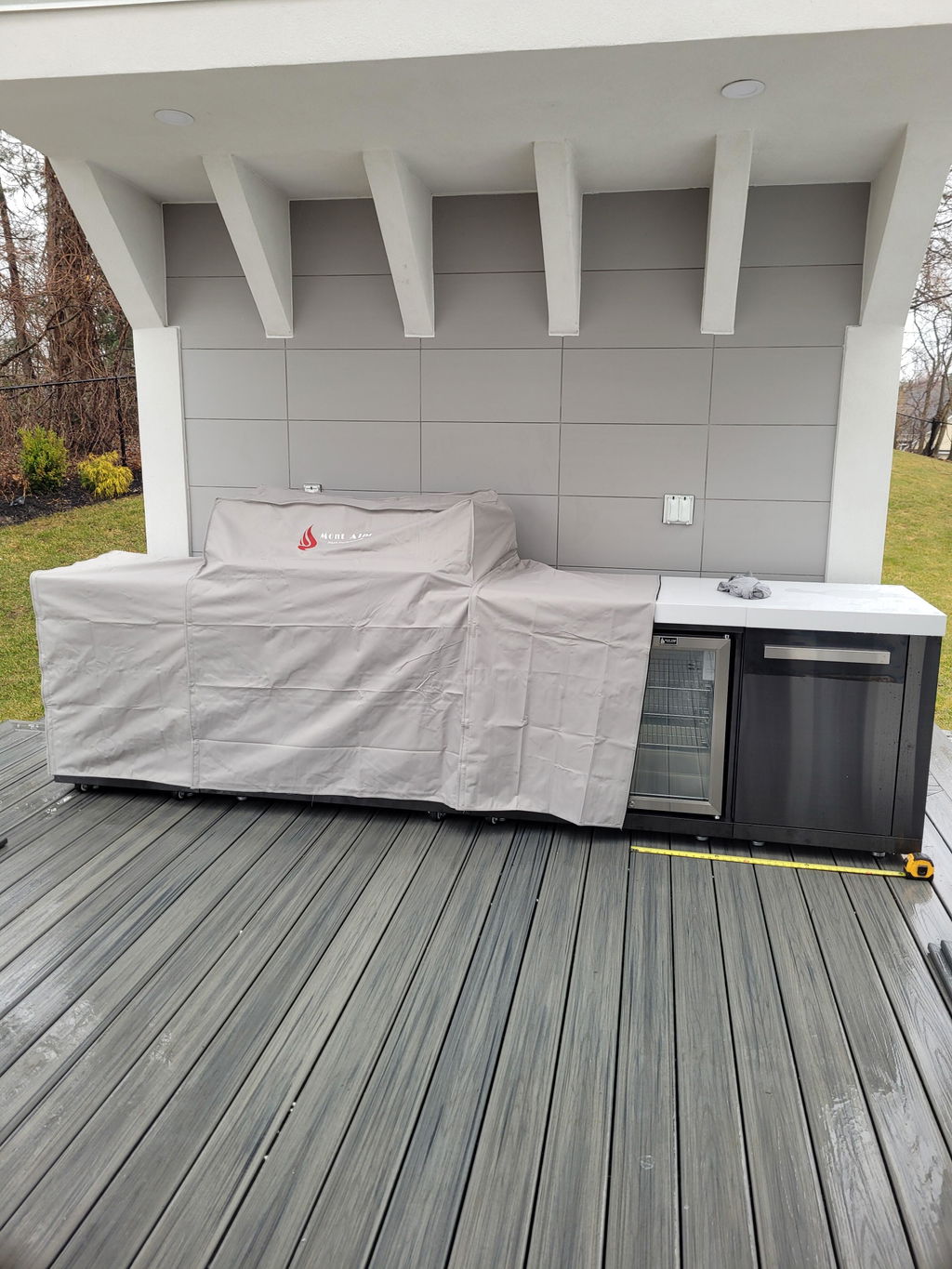

if the cover that is included a full enclosure? from top to bottom? will it cover the faucet of the sink unit?
Yes, the cover comes in modular pieces that zip together to cover your entire island.
-
Do you need an outlet near by to plug it in? One for the entire island or several?
You will need 3 outlets. One for the grill lights, the rotisserie and the fridge
-

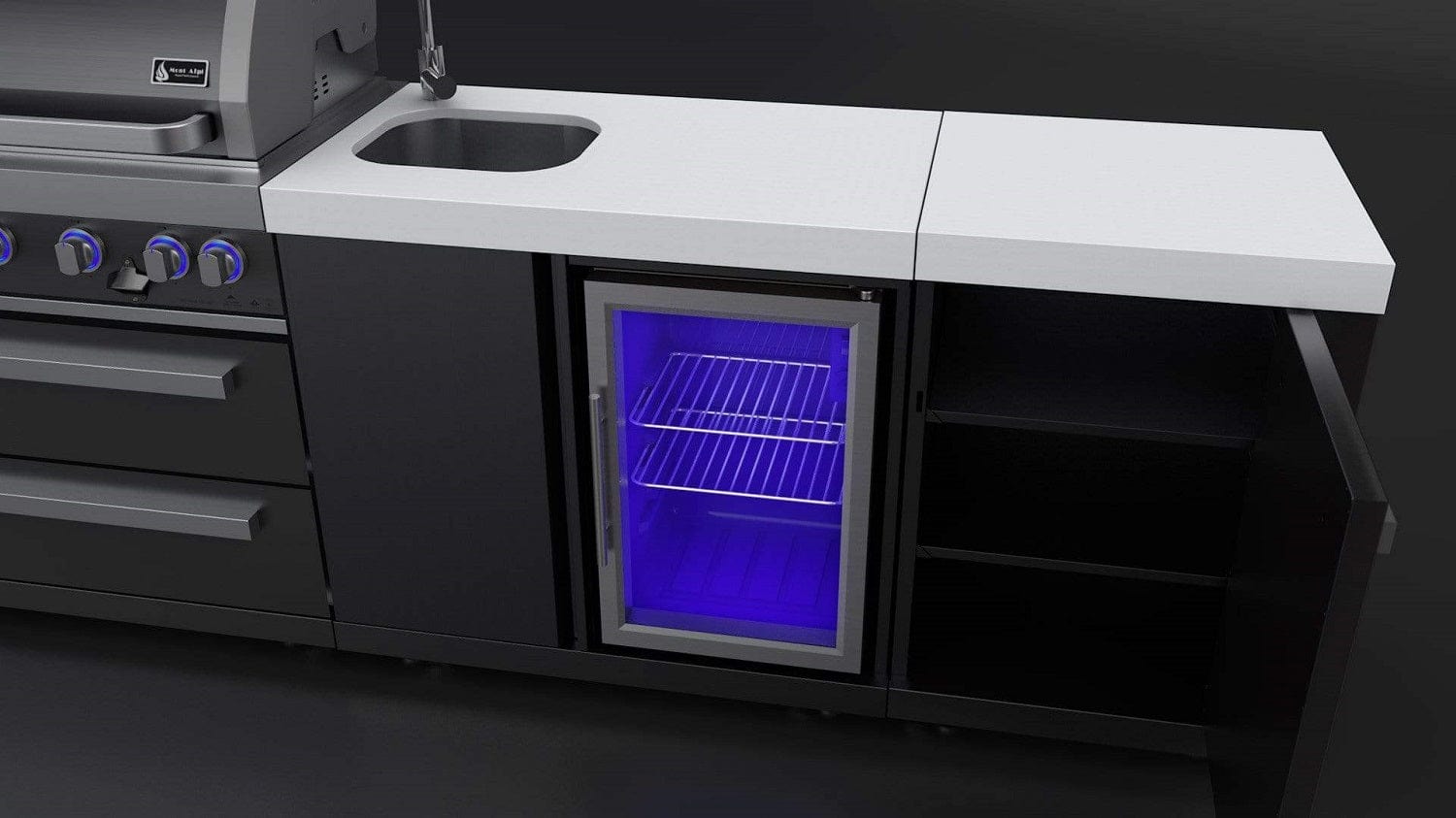

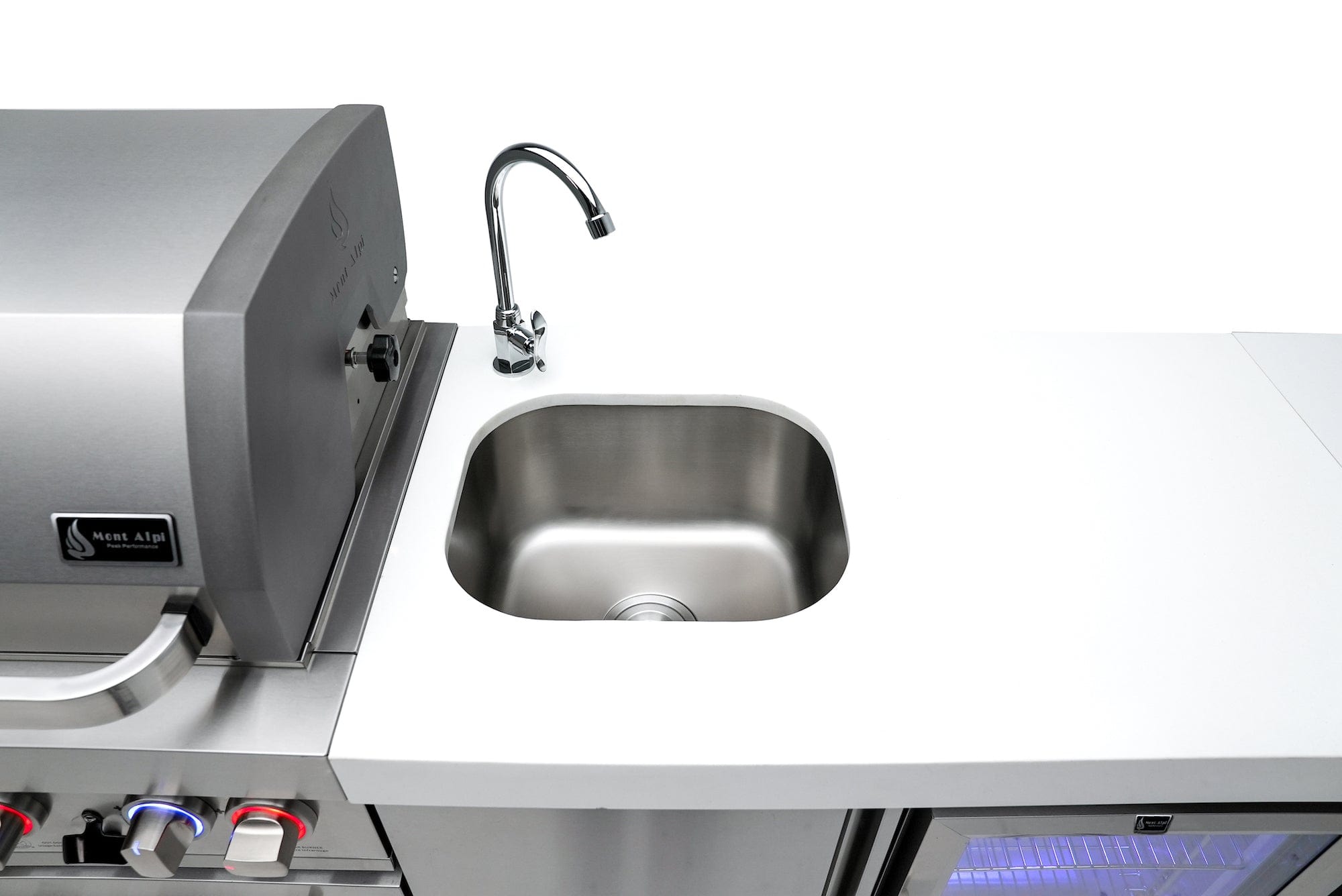

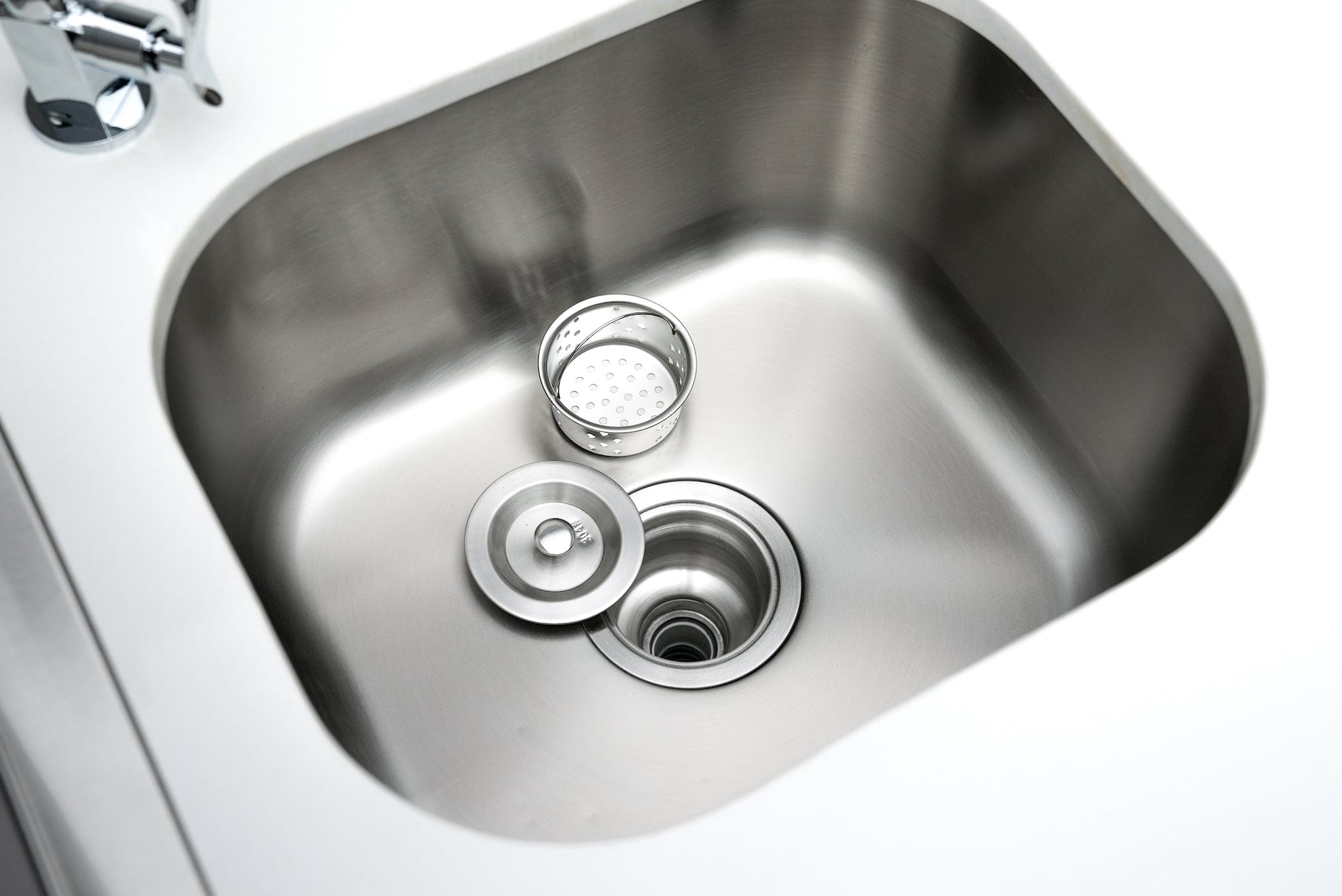

How does the sink work? Is to independent or does it need to be connected to plumbing?
The faucet comes with a standard hose connection. If you would like hot and cold, you would need to purchase a faucet that could handle both and then have it plumbed in.
The drain is a 2 inch hose that can connect to your drain line, or drain into a bucket in the cabinet beneath the sink.
-
What is the overall dimensions of everything assembled. I want to make sure it will fit
131 inches long,
23 inches deep. You will need 5 inches behind it for grill hood opening.
counter height approximately 35 inches
-
I am having my contractor run gas line underground to the kitchen area. What is gas line power requirement for this unit?
For this unit it should be 120,000 BTU. However, you may decide in the future that you want to add an oven or some other gas appliance to the area I would have them size up for future expansion.
-
Can the left side burner unit be setup on the right side and the right side unit set up on the left instead?
No, the openings between the burner unit and the grill go through the right side of the burner cabinet. It isn't finished on that side.
-
can you buy this piece without the right side unit
No, Mont Alpi does not sell them without the side cabinet.
-

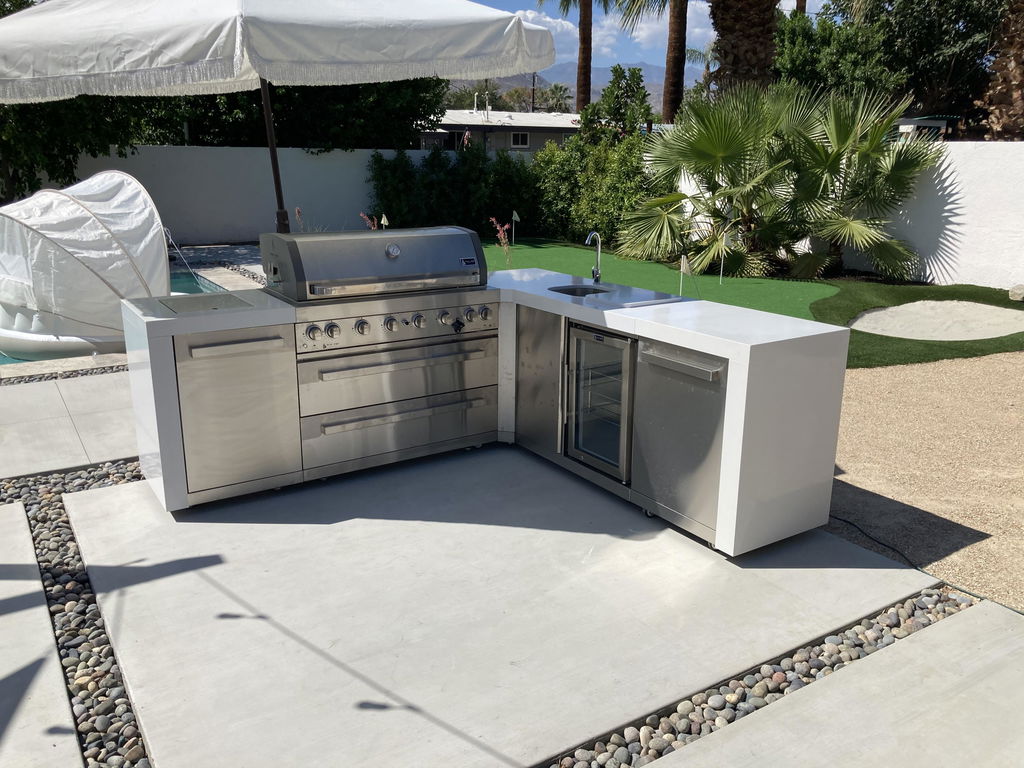

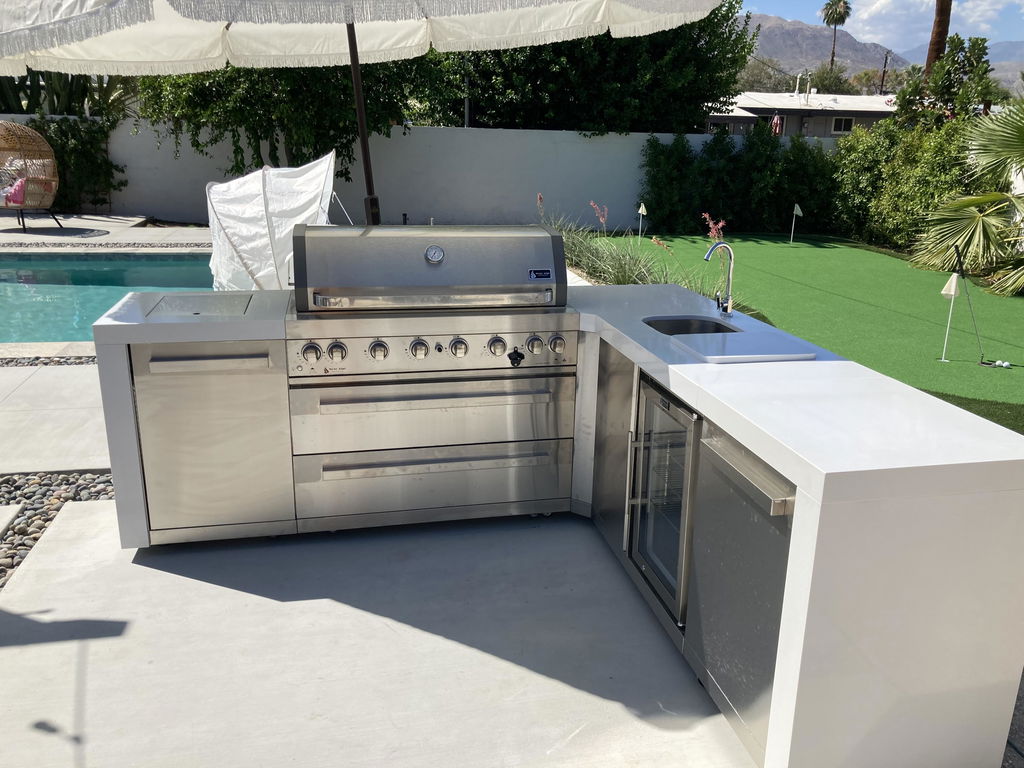

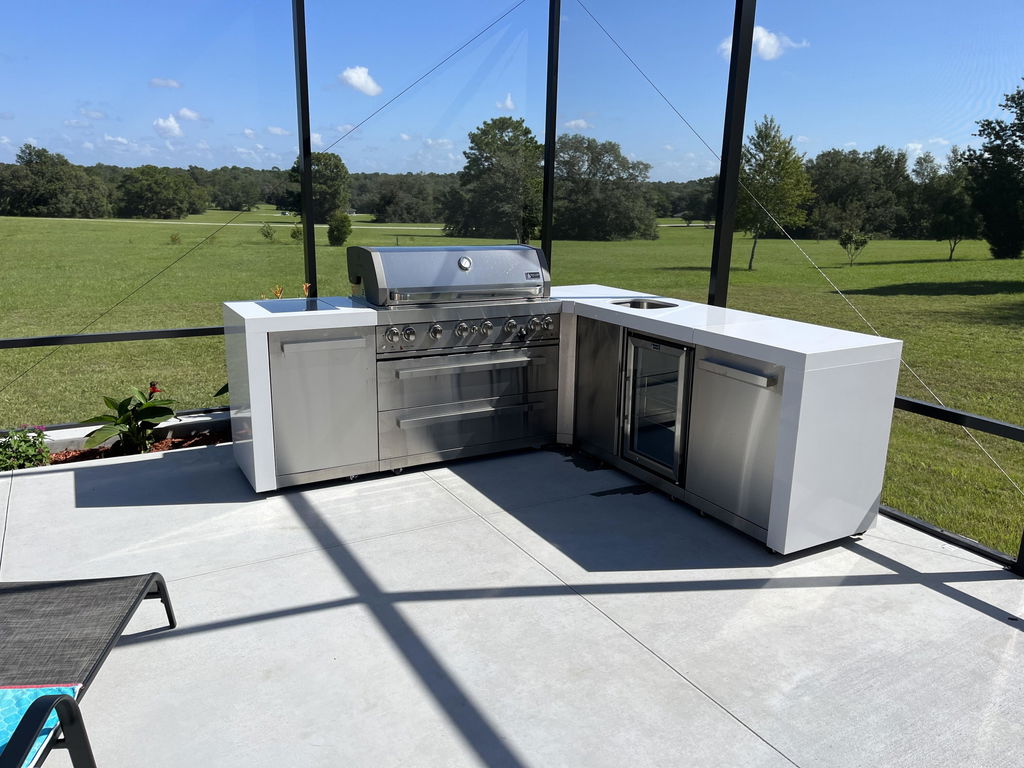

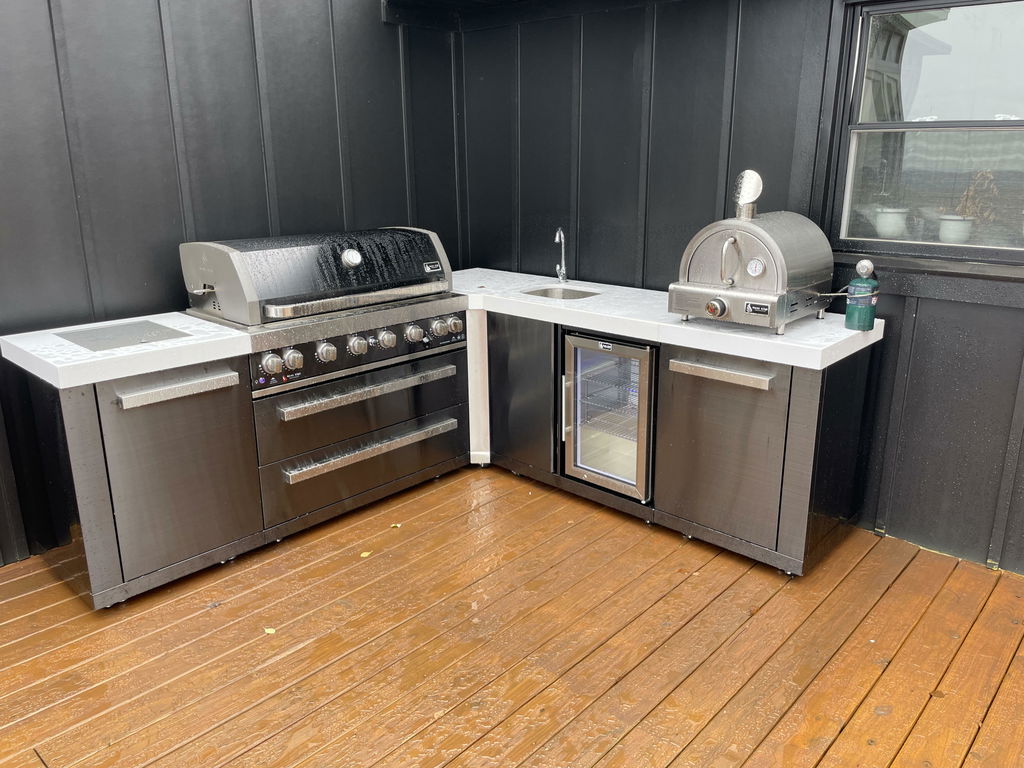

Can I add the 90° corner module to the right side of the grill to make this an L shaped ?
Yes, it can be made into the same configuration as this one.
https://outdoorkitchenpro.com/products/mont-alpi-805-deluxe-stainless-steel-island-with-beverage-center-90-degree-corner-6-burner-grill-2-infrared-burners-sink-fridge-mai805-dbev90c
-
How do you hook up the sink? Can it be hooked up to an outdoor spigot via a hose?
Yes, the sink uses a srtandard hose connection.
-
What brand is the grill?
Mont Alpi. They make all of the components.
-
is the cover included?

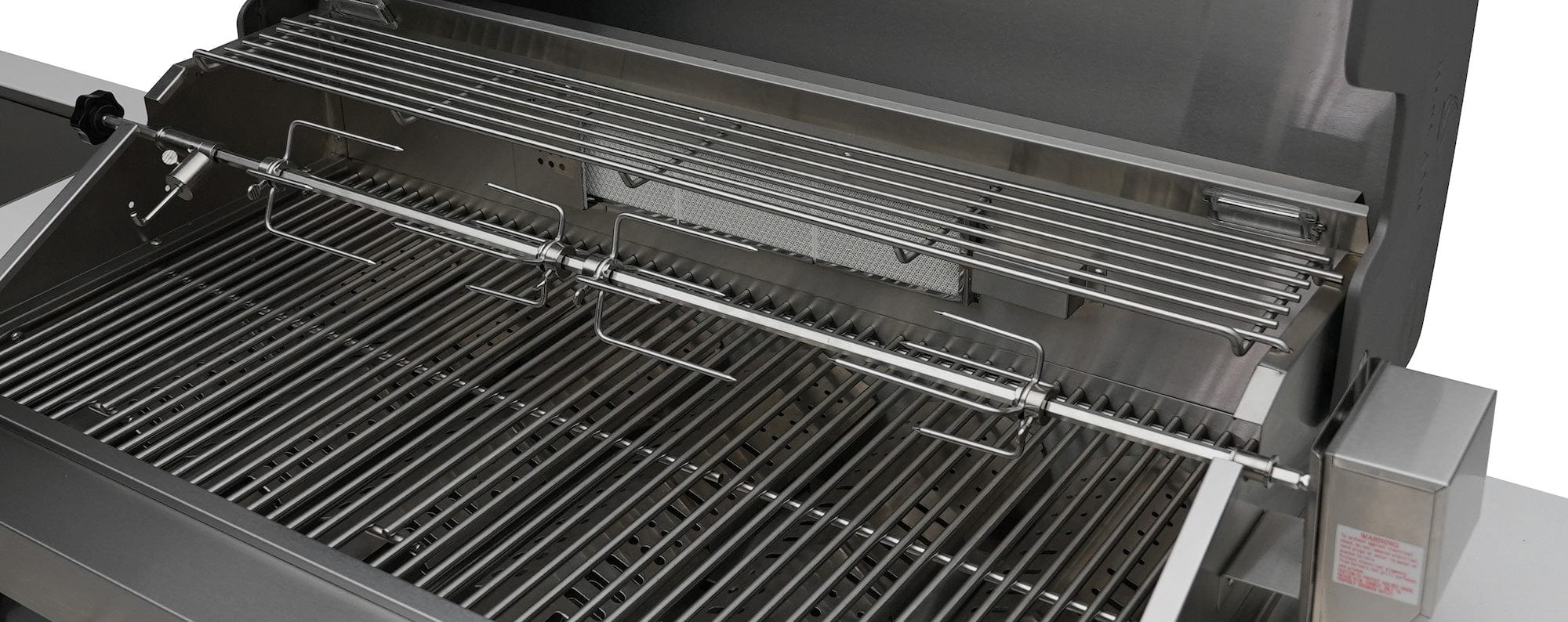

Yes, it is included. This one also includes the rotisserie.
-
What kind of ground surface would be best suited for this? Should there be some elevation to allow for rain water to evaporate from under it? What are the cabinets made of?
Because it sits on wheels and levelers, some sort of hard surface is best. Deck, paved or concrete works best. However we do have some installations that put concrete blocks under each wheel. Just sitting on grass or dirt is not advisable. Because it is on wheels, there will be enough room for drainage underneath. The wheel/leveler assemblies are 3 1/2 inches high, but only about an 1 1/2 is actually visible.
The cabinets are all 304 Black Stainless Steel
-
Can you swap the units ? My water for sink is on the left side of grill. And have natural gas so I'm assuming I could use the propane pull out for trash ?
Units can be swapped. Some easier than others.
The left burner unit really should stay to the left of the grill. There are openings between the two units and the gas and electrical lines that go between would need to be lengthened if the units were seperated.
The beverage center (sink, fridge) could be moved to the left of the burner unit. Because that is not a standard configuration, you would need to drill the holes for the attachment hardware. It isn't hard and I've had many people do that.

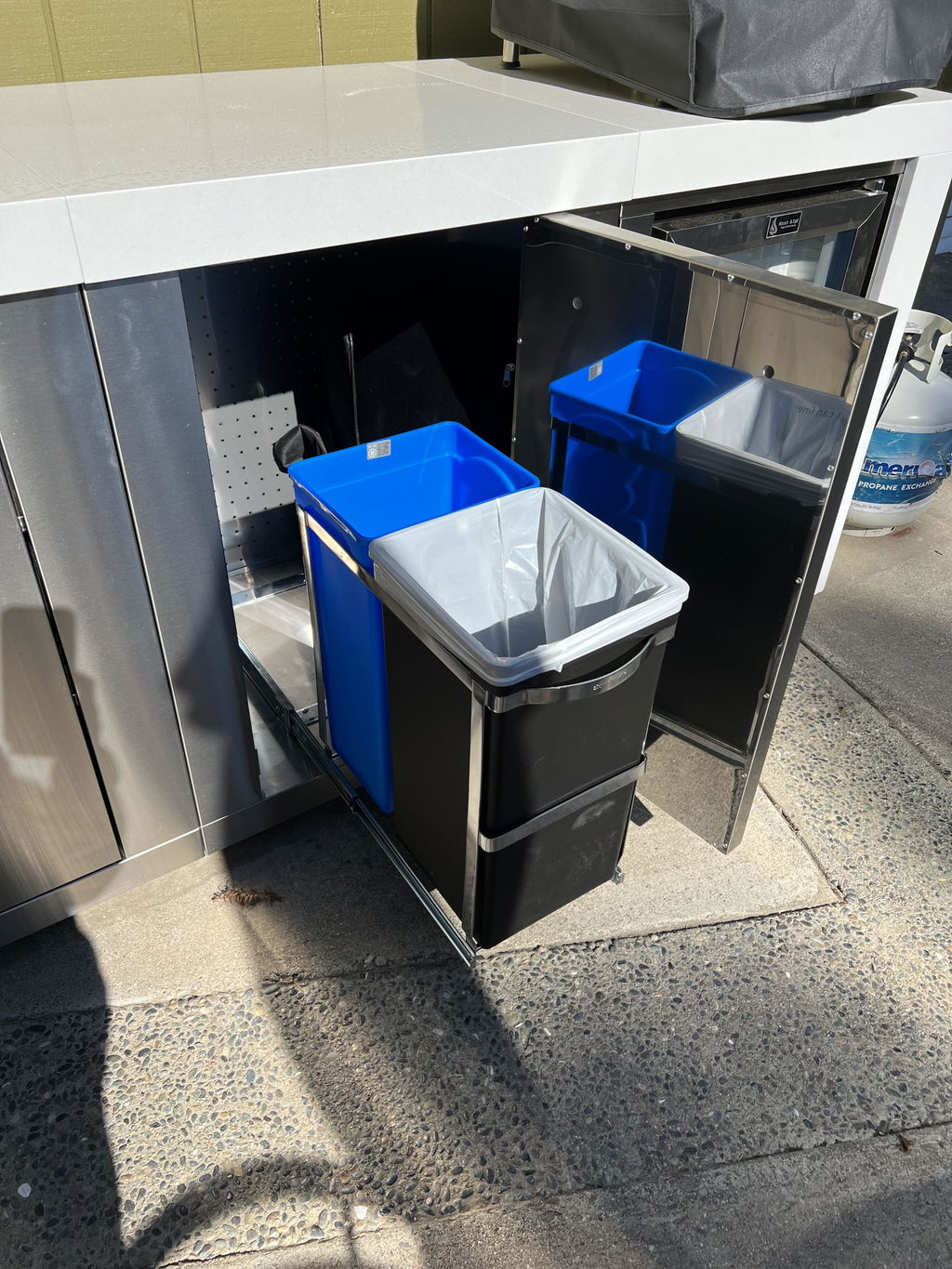

You are correct about the propane pull out. Most who have NG use it for trash.
-
Does this come fully assembled
Each of the sections comes assembled.
When it arrives you will need to roll the sections into position and attach them with the included hardware.
The faucet will need to be put in place and the fridge handle screwed on.
