Summit Built-In Undercounter ADA Height Commercially Listed Dual Tap Beer Dispenser in Stainless Steel for Outdoor Use / SBC54OSBIADA

SBC54OSBIADA

Quantity

    Details:

    Summit Built-In Undercounter ADA Height Commercially Listed Dual Tap Beer Dispenser in Stainless Steel for Outdoor Use / SBC54OSBIADA

    Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial beer dispensers made in Europe.

    Sized at 32 inches high, the SBC54OSBIADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle and front-mounted lock. We include a guard rail and two-piece stainless steel drip tray for cleaner service. The SBC54OSBIADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap.

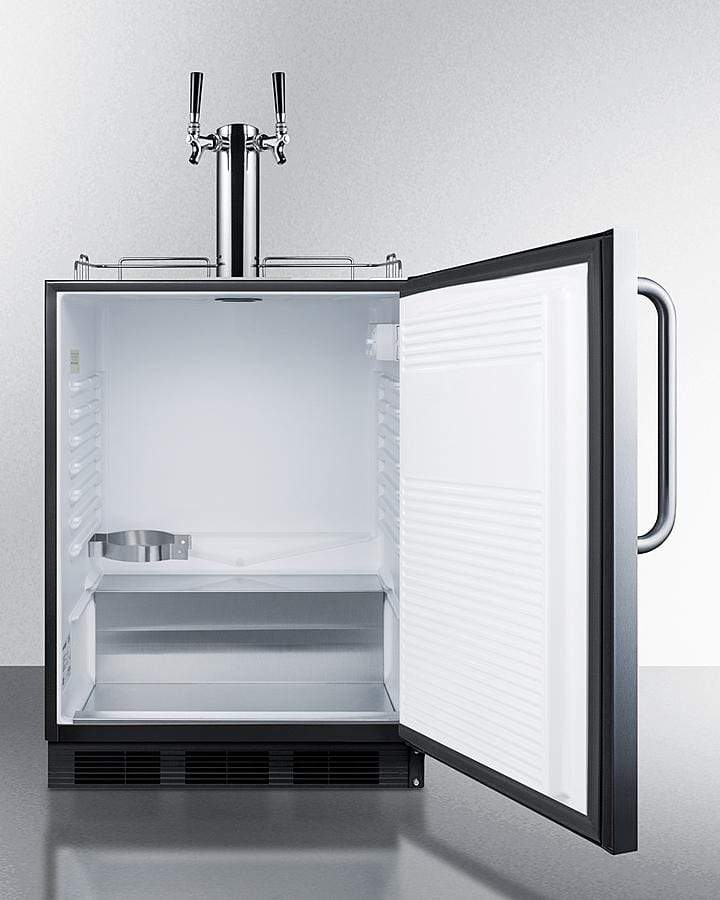

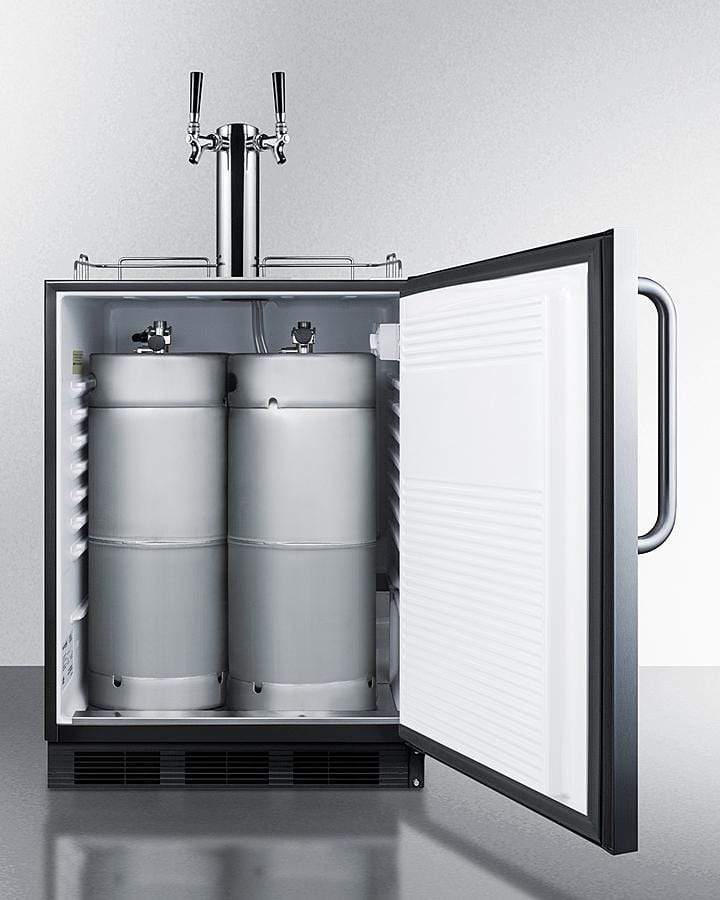

    Inside, the SBC54OSBIADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth.

    The SBC54OSBIADA is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with alternate tap equipment for coffee, wine, or kombucha. Browse our website for more options or contact our sales team at 78-893-3900.



    FEATURES:

    100% CFC free - Environmentally friendly design without ozone-damaging chemicals Complete tap kit - Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, connection hardware, and cleaning kit Interior light - Turn the light on when you need it and off when you're done with a convenient rocker switch
    304 grade stainless steel exterior - Complete stainless steel construction for easy durability in the outdoors Dual tap system - Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs One piece interior liner - Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
    ADA compliant height - Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters Factory installed lock - Front lock located towards the top of the door for convenient access, with 2 keys included Professional handle - Curved towel bar style handle in brushed stainless steel
    Adjustable thermostat - Interior dial thermostat ensures easy temperature management Fully finished cabinet - Allows the unit to be used freestanding Stainless steel drip tray - Removable two-piece drip tray included for added convenience
    Automatic defrost - No-frost operation for minimum user maintenance Ground Fault Circuit Interrupter - Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks Stainless steel floor cover - Interior includes steel cover to protect the floor when loading kegs
    Built-in capable - Front-breathing design allows fully recessed installation under counters Hidden evaporator - Cold wall design with hidden evaporator and seamless interior Stainless steel guard rail - Durable railing makes it easier to neaten service
    Commercially approved - ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings Interior CO2 holder - Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs



    SPECIFICATIONS:

    Overview

    Height of Cabinet 32.0" (81 cm)
    Height to Hinge Cap 32.25" (82 cm)
    Width 23.75" (60 cm)
    Depth 24.75" (63 cm)
    Depth with Handle 27.25" (69 cm)
    Depth with door at 90° 47.0" (119 cm)
    Capacity 5.5 cu.ft. (156 L)
    Defrost Type Automatic
    Door Stainless Steel
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 1.2
    Voltage/Frequency 115 V AC/60 Hz
    Weight 110.0 lbs. (50 kg)
    Shipping Weight 120.0 lbs. (54 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101069586



    Kegerator

    Door Swing RHD
    Reversible Factory Reversible
    Tap Kit Yes
    Height with Tap 47.5" (121 cm)
    Number of Taps 2
    Thermostat Type Dial
    Interior Light Yes
    Fan Type Exterior
    Refrigerant R600a
    Refrigerant Amount 0.64 oz.
    High Side PSI 180
    Low Side PSI 80
    Inter Height 26.25" (67 cm)
    Interior Width 21.0" (53 cm)
    Interior Depth 17.75" (45 cm)
    Compressor Step Height 5.5" (14 cm)
    Compressor Step Width 21.0" (53 cm)
    Compressor Step Depth 5.5" (14 cm)
    Temperature Range 34º to 43ºF


    AVAILABLE UPGRADES:

    Exterior

    SSK  Stainless steel kickplate factory installed
    LHD - Left hand door swing Door reversal to left hand swing
    DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management


    Lock

    L-Installed Lock Add a single key lock to the door with the L option





    OTHER AVAILABLE MODELS:

    SBC54OSBIADAWKDTWIN

    Stainless Steel, Dual Tap Wine Dispenser

    SBC54OSBIADANK

    Stainless Steel, Tap Kit Not Included



    RESOURCES:

    BROCHURE w/ DRAWINGS
    TECHNICAL DRAWING (.dwg)
    USE & CARE
