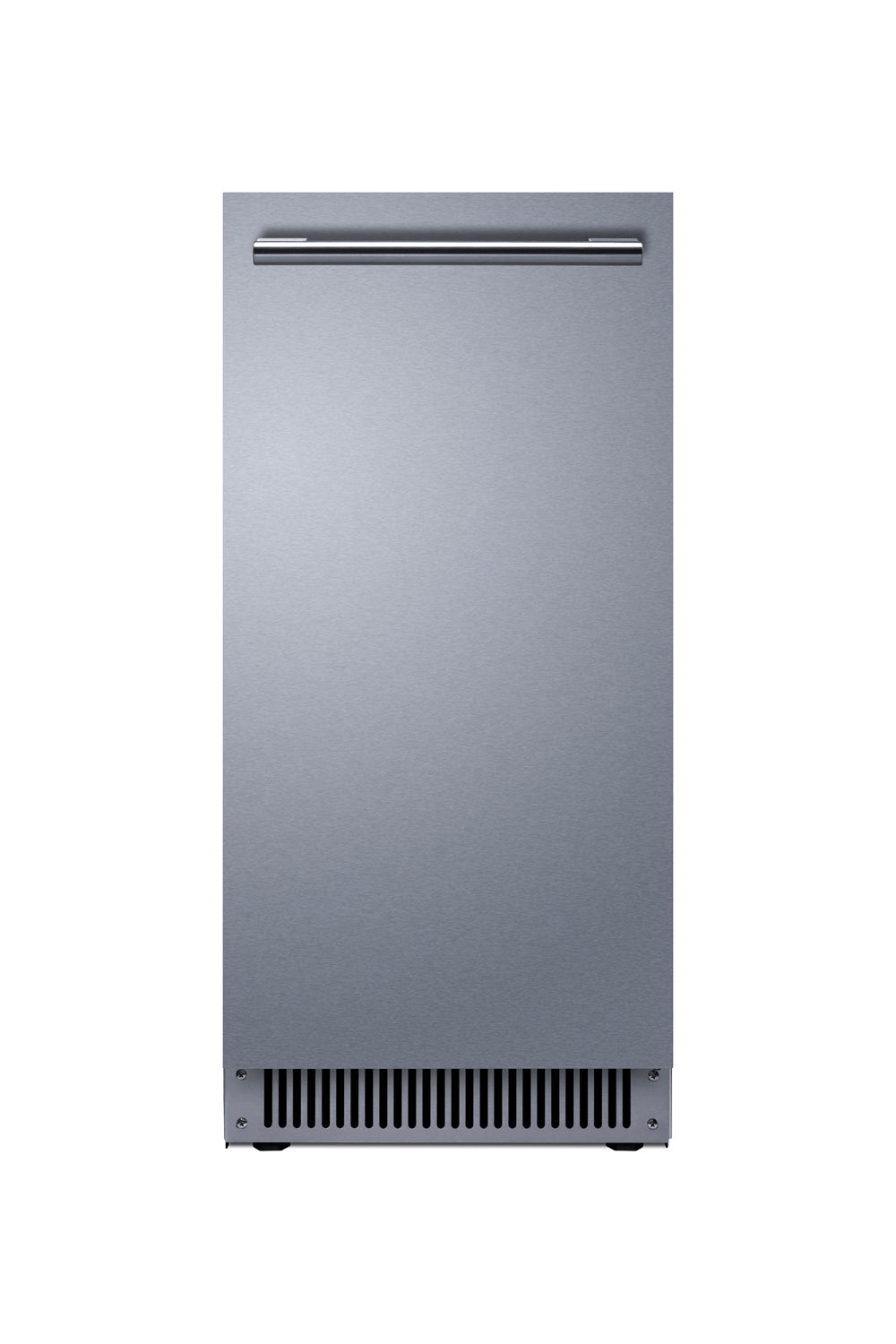

Summit BIM63OSADA 15-inch outdoor clear icemaker, front view with stainless steel door and handle
$2,920.00
$2,920.00

Summit 15" Wide 68 Lb. Built-In Undercounter Outdoor Clear Icemaker, ADA Compliant, with Internal Pump and Stainless Steel Exterior / BIM63OSADA

Summit brings convenience and streamlined luxury outdoors with built-in undercounter weatherproof icemakers.

Model BIM63OSADA is a 15" wide outdoor icemaker with an attractive, durable stainless steel exterior designed to hold up to the outdoor elements. It stands just 32" high to fit under lower ADA-compliant counters, and the legs can be raised to 34 1/4" for taller spaces, with a sliding kickplate included to fill the extra space. The front-breathing design allows built-in installation under counters, the fully finished stainless steel cabinet allows freestanding use, and the sealed back and right-angle cord help ensure an easy fit. The user-reversible door includes a stylish handle for a premium look, and the unbranded exterior integrates easily into any kitchen or bar.

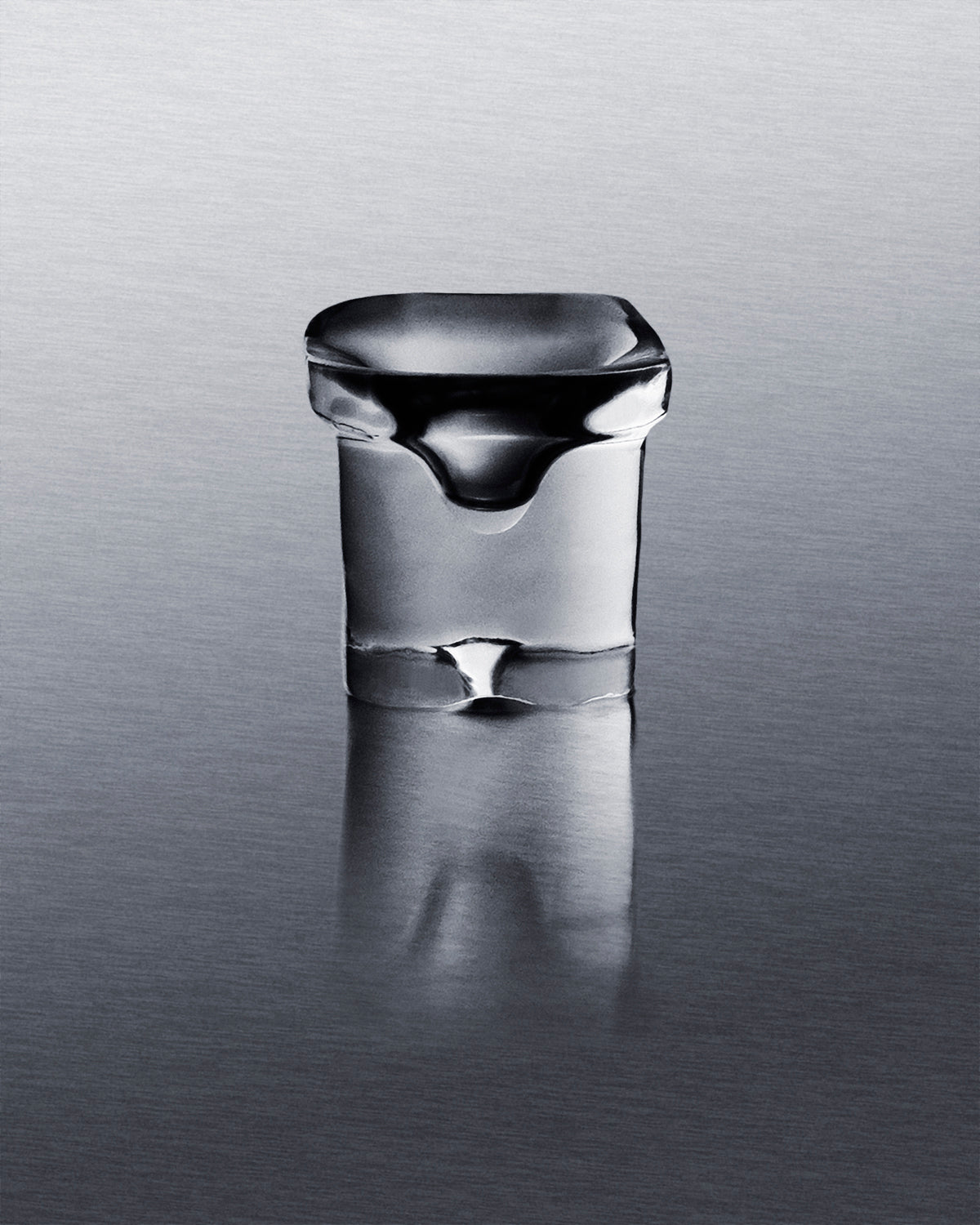

The BIM63OSADA produces up to 68 lbs. of clear, gourmet top hat-shaped ice cubes daily. Top hat ice is a cylindrical cube with a slightly wider top; its dense structure minimizes dilution, keeping drinks colder longer without watering them down, and its non-clumping shape makes serving easy. Cube size can be set to small, medium or large, and a steel ice scoop that hangs inside is included.

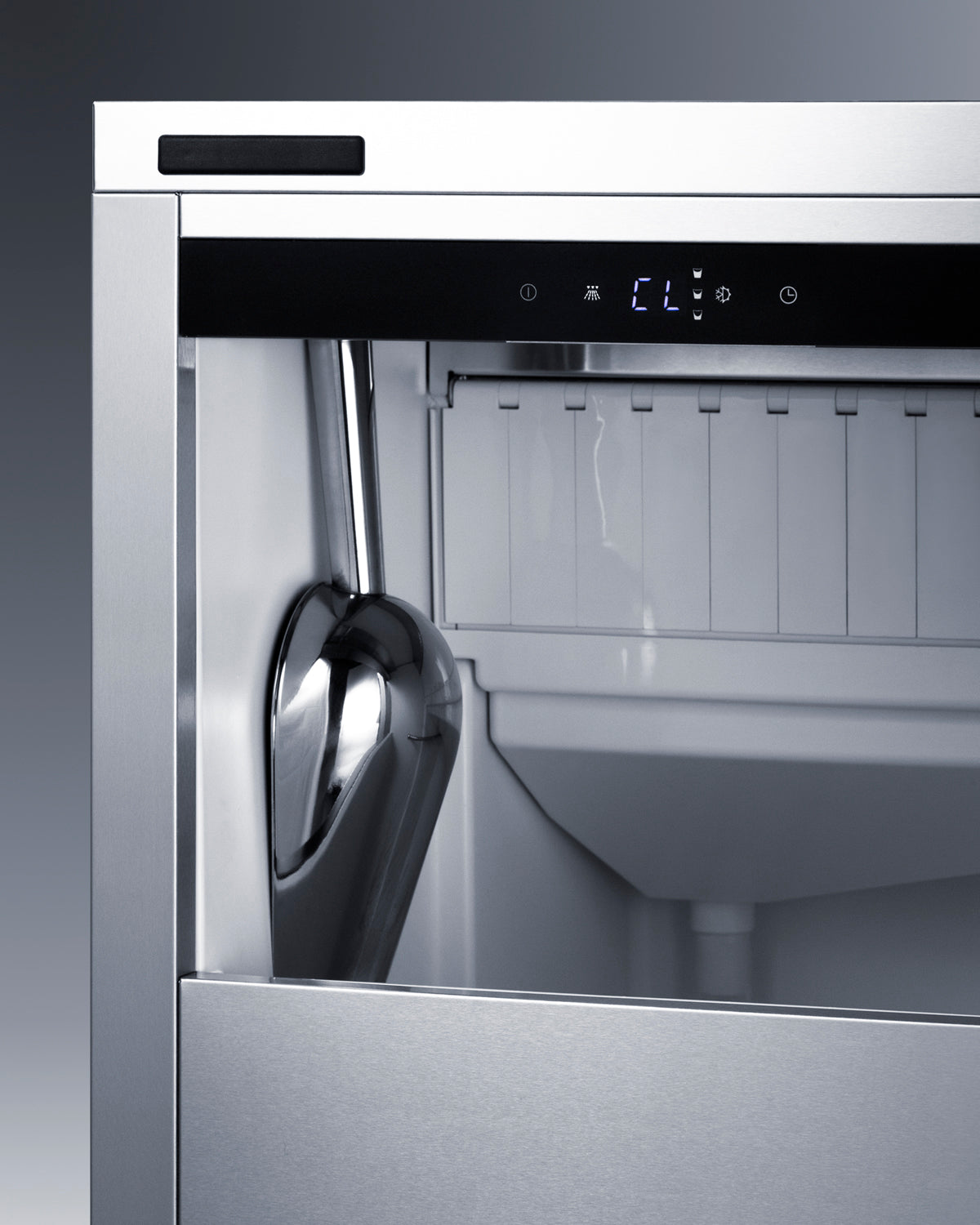

Easy-to-use digital controls show each step of the production process and when the bin is full. Frost-free operation eliminates the need to defrost, and additional features include a memory function, cleaning mode and alarm, and Sabbath mode. This model replaces the discontinued BIM68OSPUMP.

FEATURES:

  • 15" wide outdoor clear icemaker - Built-in undercounter icemaker for outdoor kitchens, wet bars and more
  • Weatherproof design - Durable stainless steel construction for safe installation outdoors
  • 68 lb. production capacity - High-capacity production of clear gourmet ice, with 26 lbs. of storage
  • Gourmet top hat ice - Dense, slow-melting clear cubes ideal for cocktails
  • Ice size selection - Choose small, medium or large cubes
  • ADA compliant - 32" height fits under lower ADA-compliant counters
  • Height adjustable - Leveling legs and slide-out kickplate raise the unit up to 34 1/4"
  • Built-in pump - Internal pump allows more flexibility in placing the unit
  • Freestanding or built-in - Front-breathing design with a fully finished stainless steel cabinet

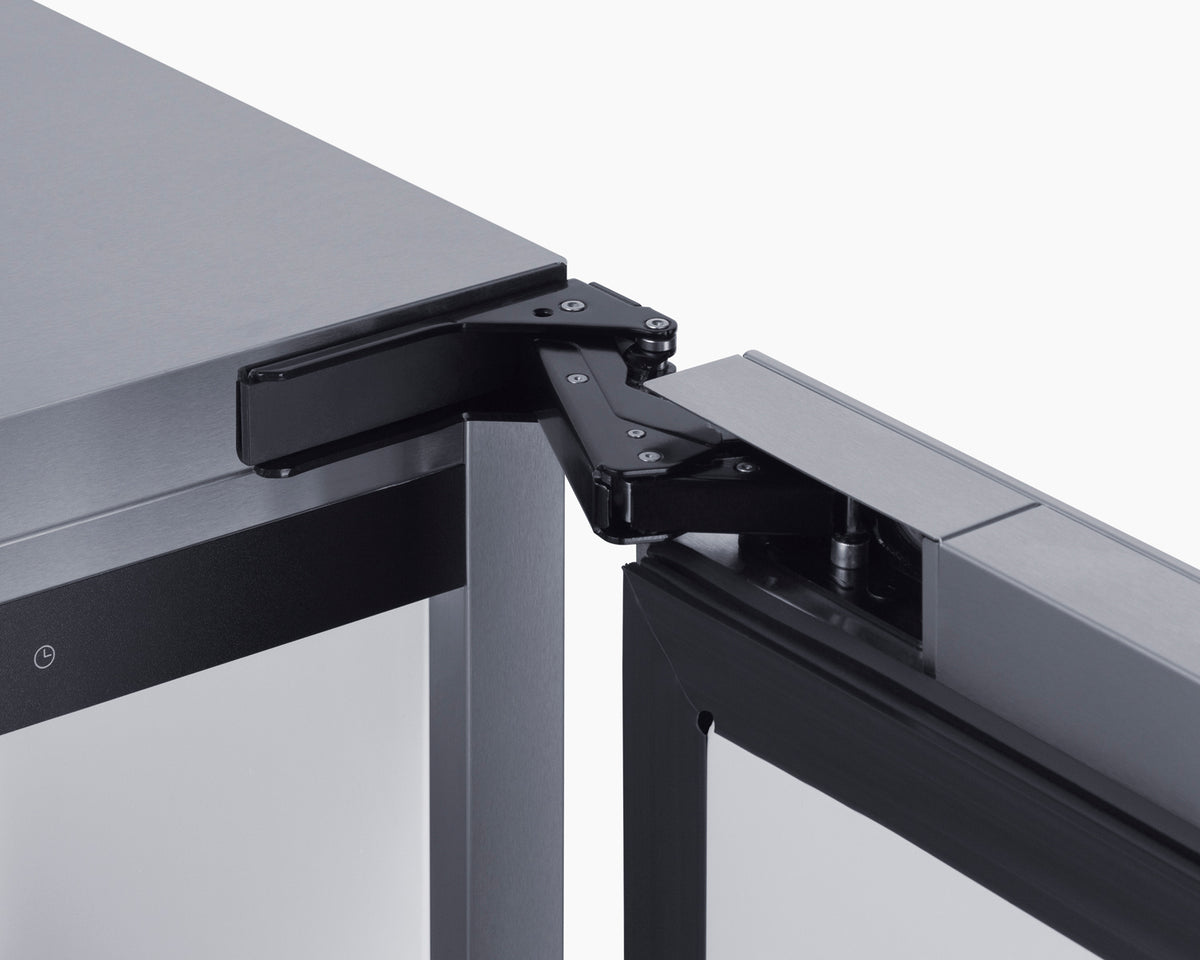

  • Fully articulating door hinge - European-style hinge for a flush fit and smoother opening
  • Professional handle - Horizontally mounted stainless steel handle
  • Touch controls - Indicator lights for each stage of the production process
  • Clean function and cleaning alarm - Reminder light flashes 180 days after each cleaning
  • Memory function - Returns to its last setting after a power interruption
  • Sabbath mode - Disables lighting and alarms during religious observance
  • Ice scoop included - Hangs on an interior hook
  • Sealed back - No exposed coils, for easier cleaning
  • Right angle plug - Plugs in flush against the wall socket
  • Reversible door - User-reversible door swing
  • Unbranded exterior - Integrates seamlessly with other appliances
  • CARB compliant, lead-free certified and 100% CFC free

SPECIFICATIONS:

Overview

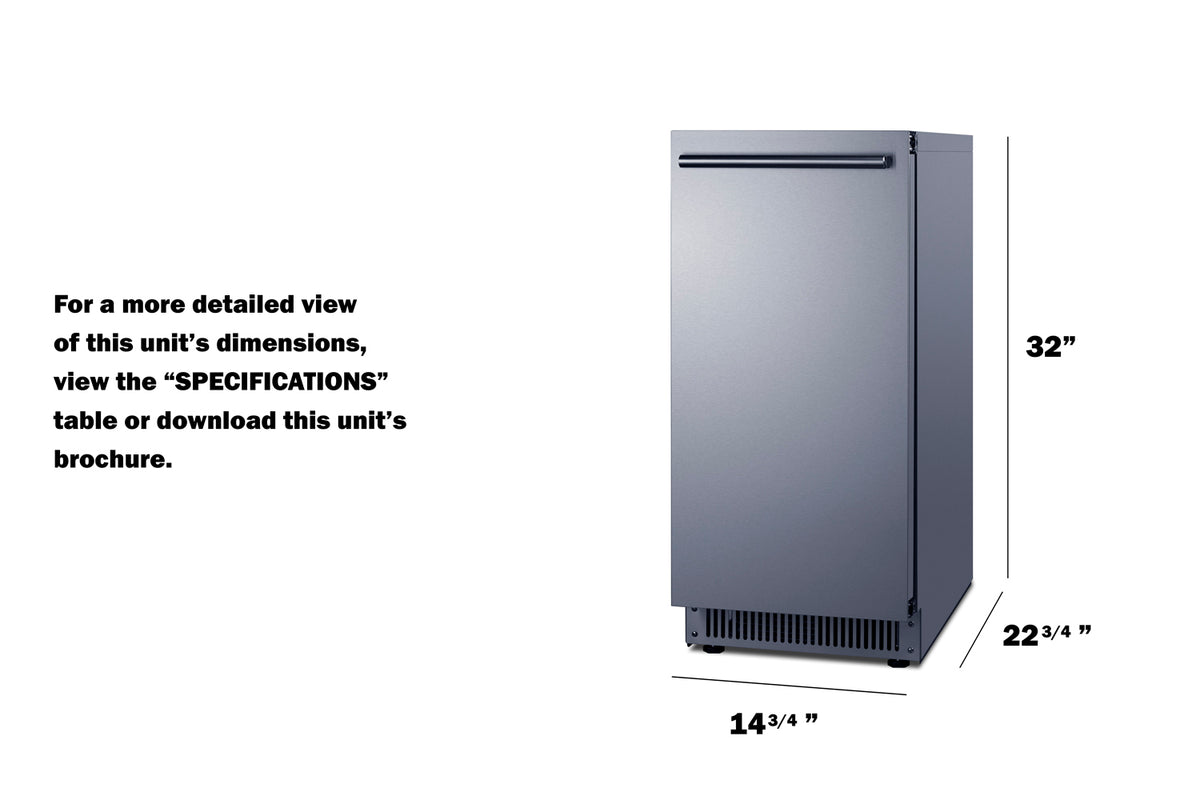

Height of Cabinet 32.0" (81 cm), adjustable to 34 1/4"
Width 14.75" (37 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.75" (63 cm)
Depth with Door at 90° 38.13" (97 cm)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 6.0
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101156224

Icemaker

Door Swing RHD (reversible)
Height Adjustable Yes
Drain Required Yes
Daily Ice Production 68.0 lbs. (31 kg)
Ice Storage Capacity 26.0 lbs. (12 kg)
Ice Shape Top hat
Size of Cube 1 1/4" H x 1 1/8" W x 1 1/8" D
Number of Ice Cube Sizes 3
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
Interior Height 19.75" (50 cm)
Interior Width 12.25" (31 cm)
Interior Depth 15.5" (39 cm)
Level Legs 4

AVAILABLE UPGRADES:

LHD Door reversal to left hand door swing

RESOURCES:

BROCHURE
ASSEMBLY DRAWING
TECHNICAL DRAWING (.dwg)
