Summit 15" Wide 68 Lb. Built-In Undercounter Clear Icemaker, ADA Compliant, with Internal Pump and Panel-Ready Door / BIM62ADAPNR
Couldn't load pickup availability
Summit 15" Wide 68 Lb. Built-In Undercounter Clear Icemaker, ADA Compliant, with Internal Pump and Panel-Ready Door / BIM62ADAPNR
Summit brings convenience and streamlined luxury under the counter with built-in clear icemakers.
Model BIM62ADAPNR is a 15" wide panel-ready icemaker with an attractive, durable stainless steel exterior. It stands just 32" high to fit under ADA-compliant counters, and the legs can be raised to 34 1/4" for taller spaces, with a sliding kickplate included to fill the extra space. The front-breathing design allows built-in installation under counters, the fully finished stainless steel cabinet allows freestanding use, and the sealed back and right-angle cord help ensure an easy fit. The reversible stainless steel door has a fully articulating European-style hinge for a smoother opening, and a 2-piece bracket kit is included so you can install your own overlay panel. The unbranded exterior integrates easily into any kitchen or bar.

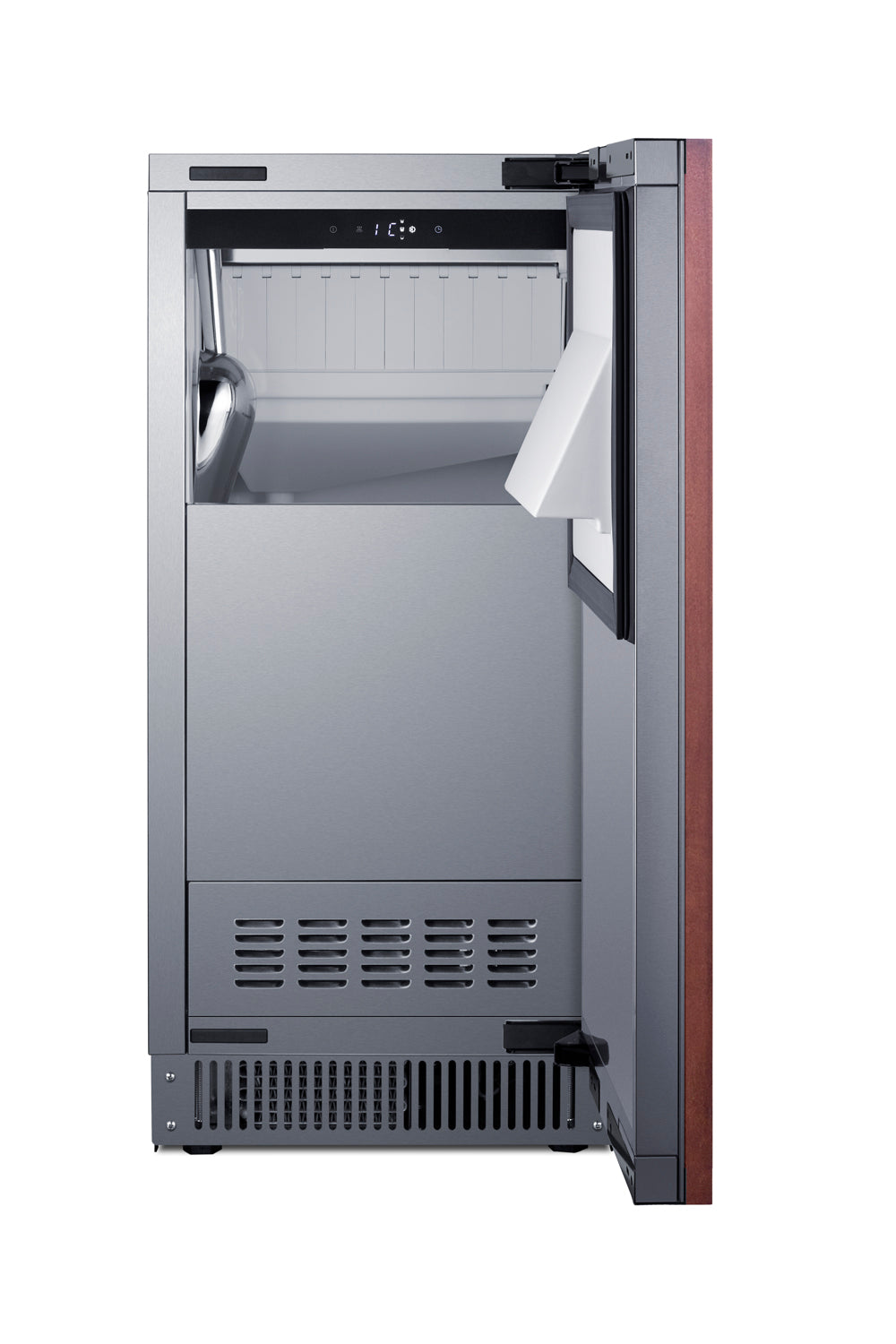

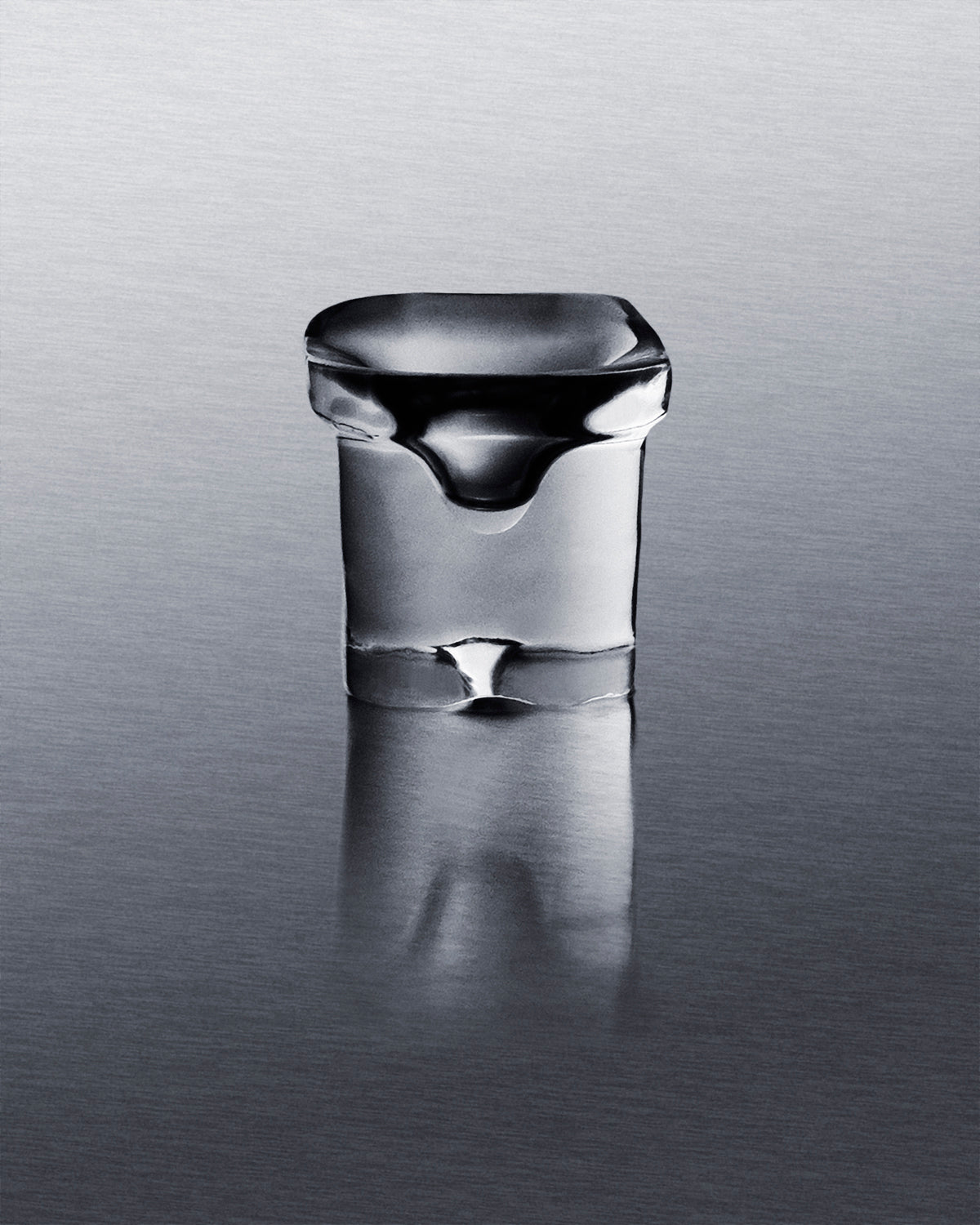

Inside, the BIM62ADAPNR produces up to 68 lbs. of clear, gourmet top hat-shaped ice cubes daily. Top hat ice is a cylindrical cube with a slightly wider top; its dense structure minimizes dilution, keeping drinks colder longer without watering them down, and its non-clumping shape makes serving easy. Cube size can be set to small, medium or large, and a steel ice scoop that hangs inside is included.
Easy-to-use digital controls show each step of the production process and when the bin is full. Frost-free operation eliminates the need to defrost, and additional features include a memory function, cleaning mode and alarm, and Sabbath mode. This model replaces the discontinued BIM68OSPUMPIF.
FEATURES:
- 15" wide clear icemaker - Built-in undercounter icemaker for kitchens, wet bars, break rooms and more

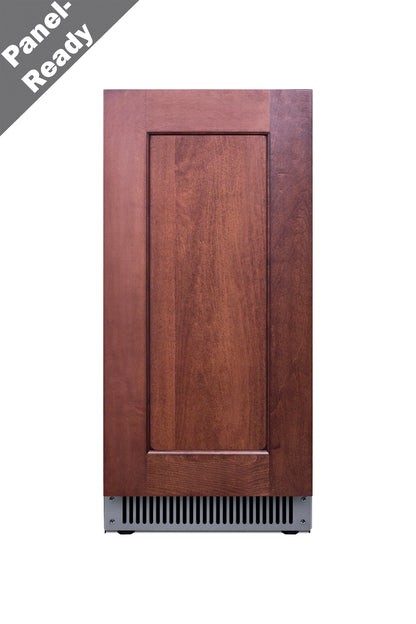

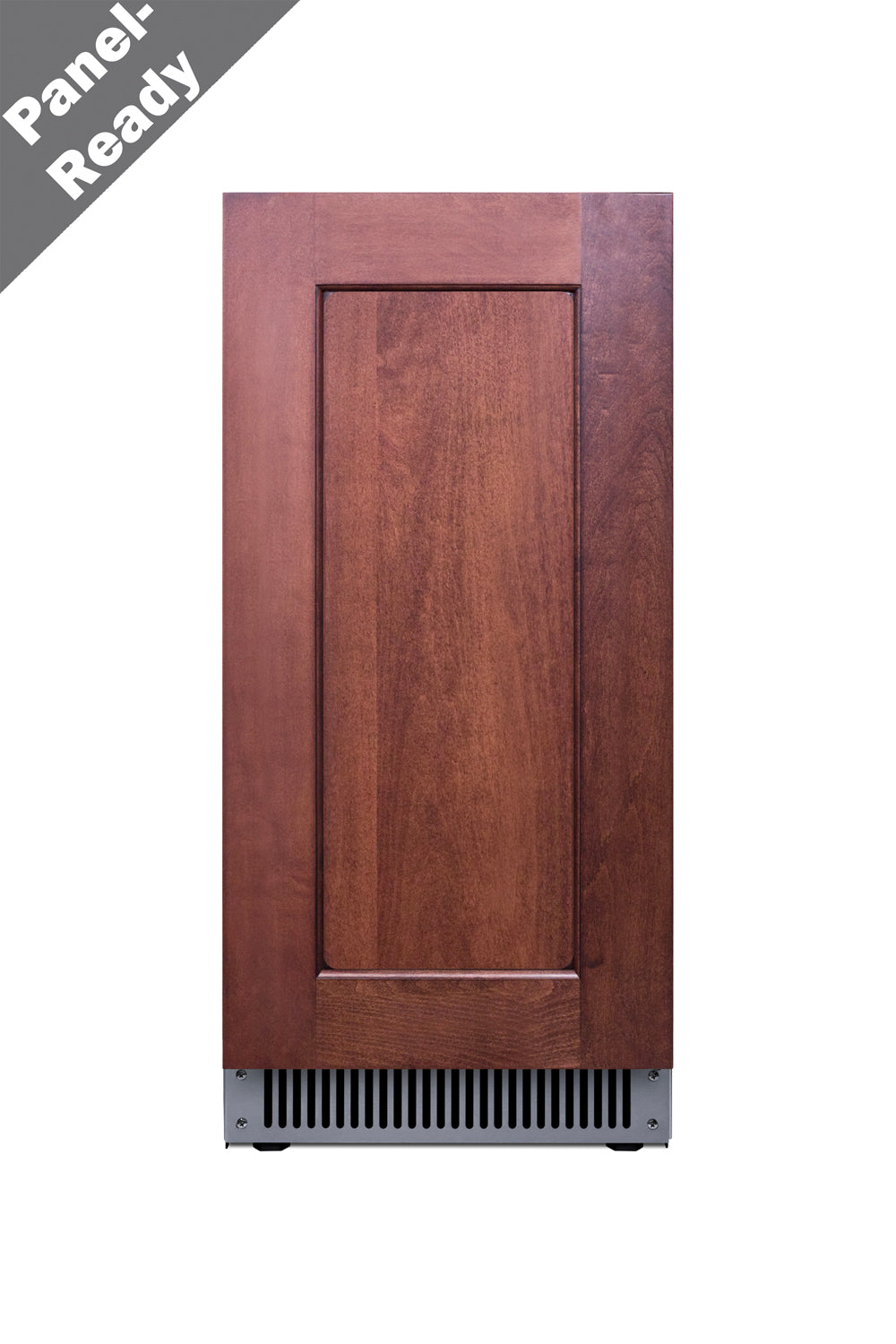

- Panel-ready door - Included 2-piece bracket kit for easy custom panel installation (recommended panel: 3/4" thick, 28 1/4" H x 14 5/8" W)

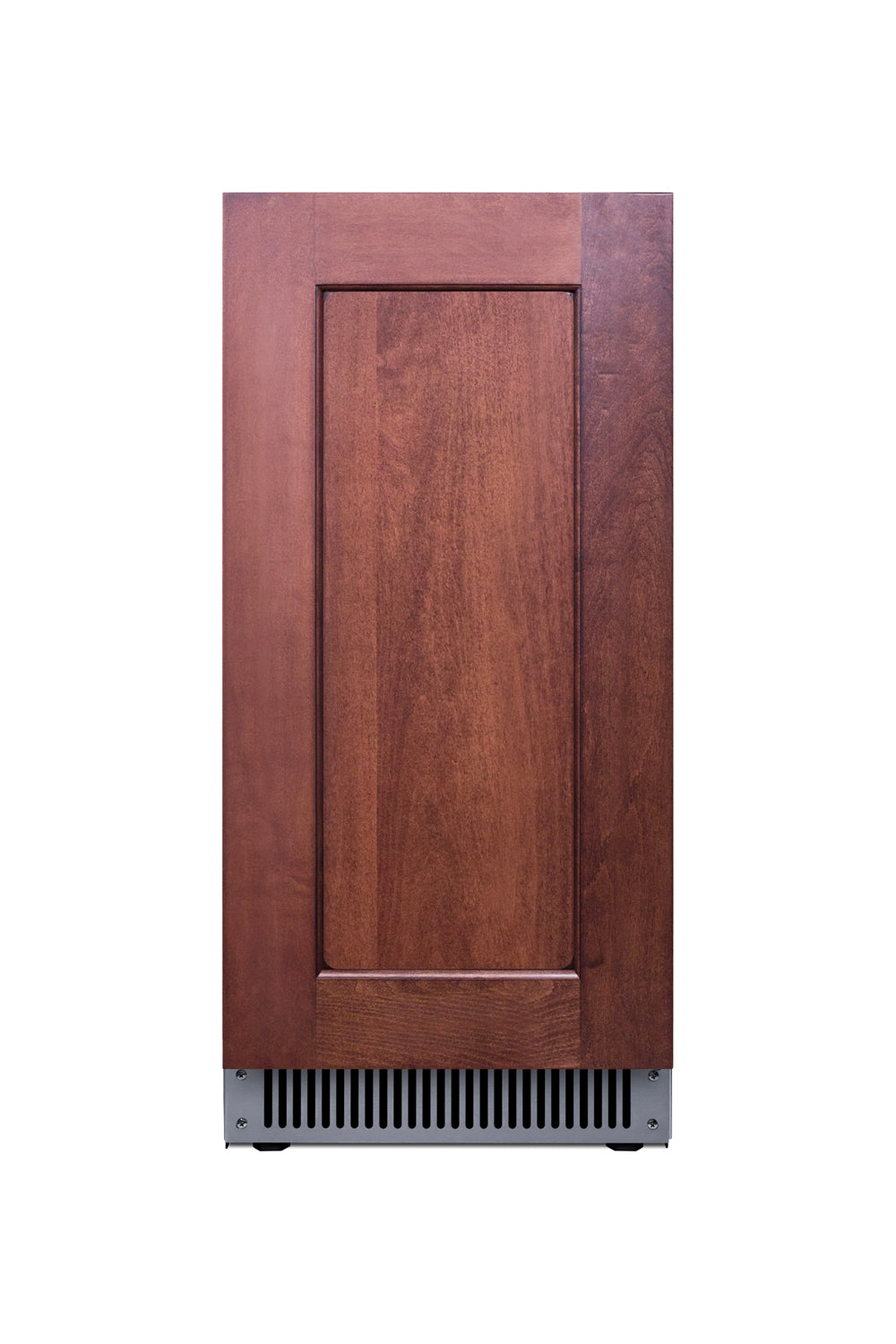

- Stainless steel front finish - Fully finished door can also be used as-is without an overlay panel
- 68 lb. production capacity - High-capacity production of clear gourmet ice, with 26 lbs. of storage
- Gourmet top hat ice - Dense, slow-melting clear cubes ideal for cocktails
- Ice size selection - Choose small, medium or large cubes
- ADA compliant - 32" height fits under lower ADA-compliant counters
- Height adjustable - Leveling legs and slide-out kickplate raise the unit up to 34 1/4"
- Built-in pump - Internal pump allows more flexibility in placing the unit

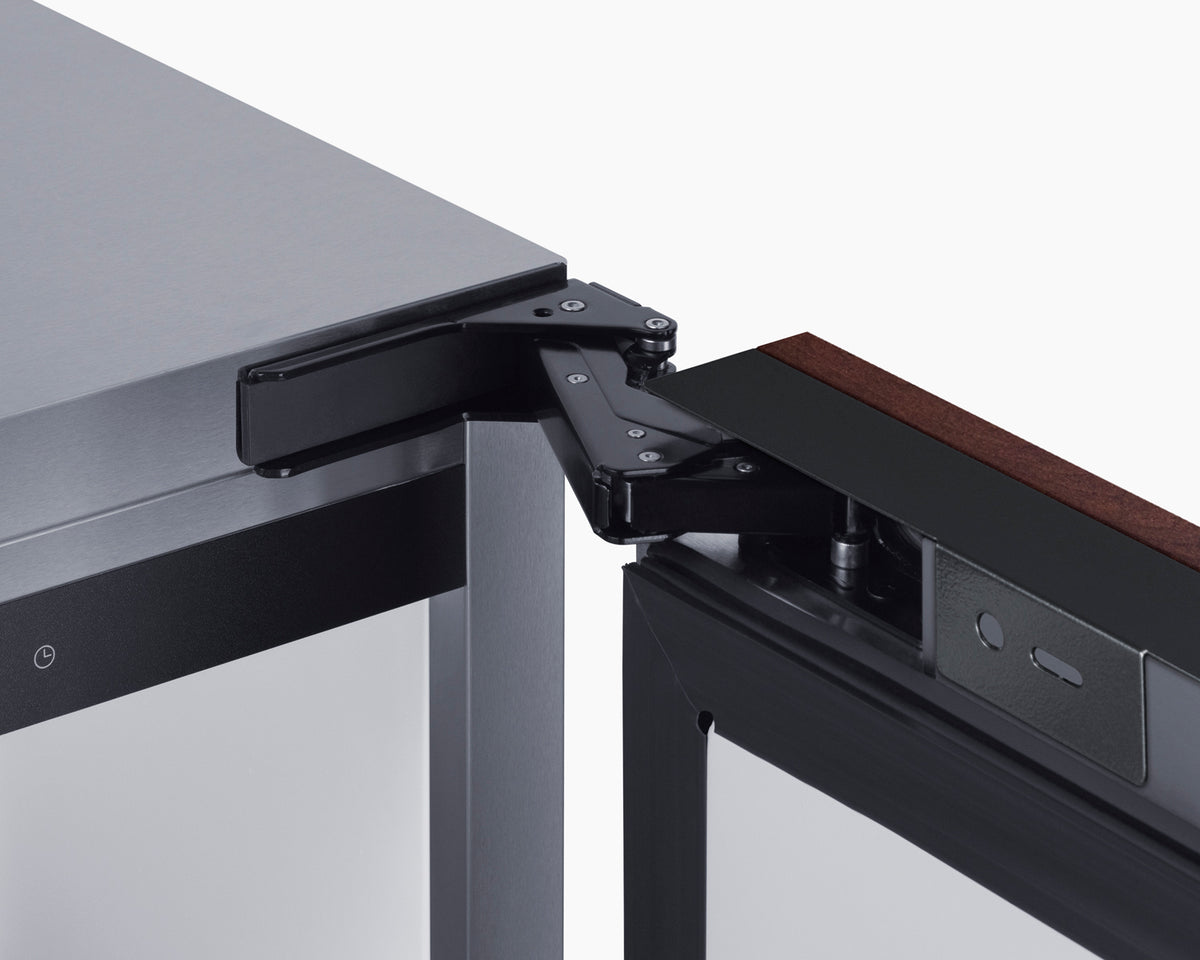

- Fully articulating door hinge - European-style hinge for a flush fit and smoother opening

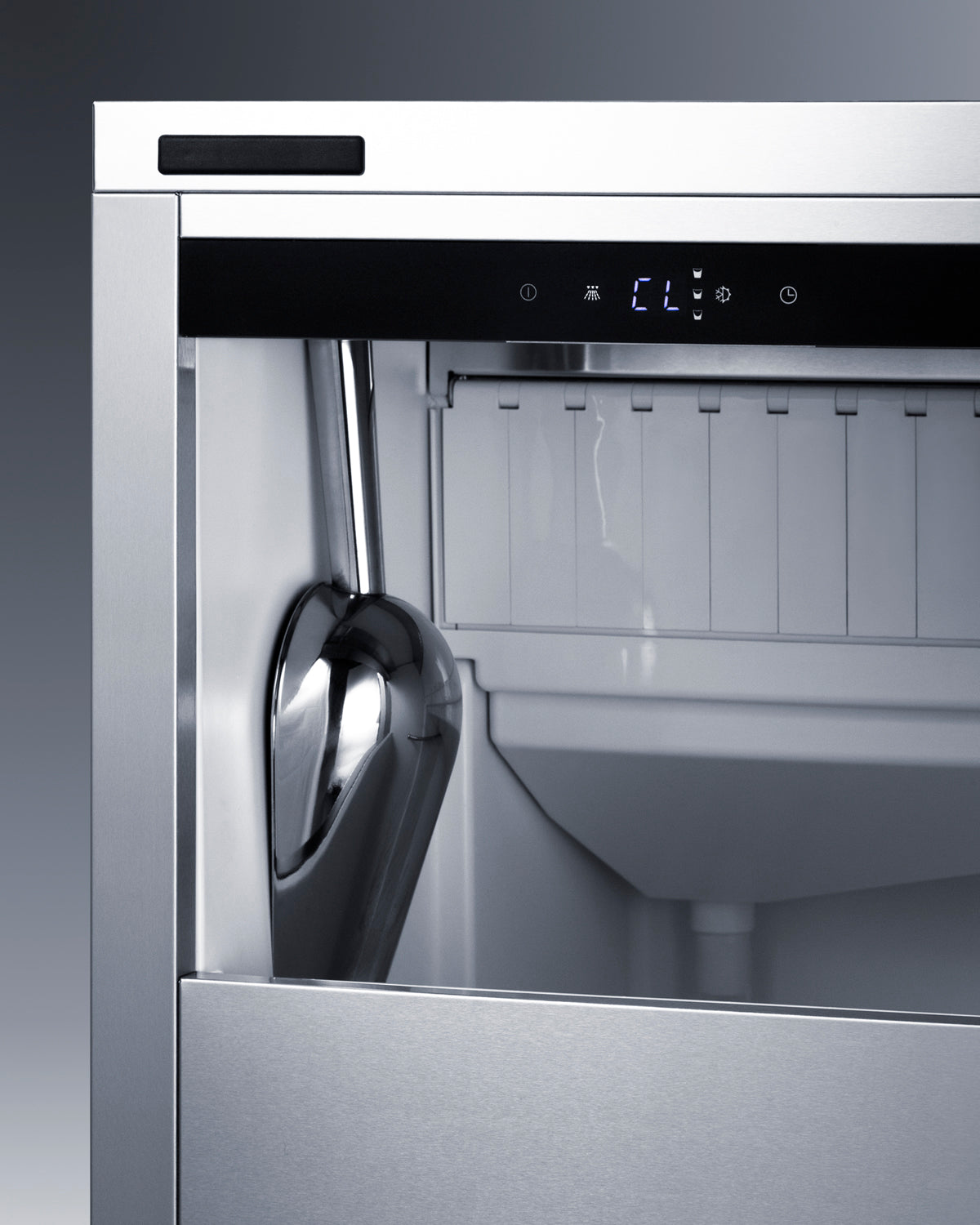

- Touch controls - Indicator lights for each stage of the production process
- Automatic defrost - No-frost operation for minimum maintenance
- Clean function and cleaning alarm - Reminder light flashes 180 days after each cleaning
- Memory function - Returns to its last setting after a power interruption
- Sabbath mode - Disables lighting and alarms during religious observance
- Ice scoop included - Hangs on an interior hook
- Sealed back - No exposed coils, for easier cleaning
- Right angle plug - Plugs in flush against the wall socket
- Reversible door - User-reversible door swing
- Unbranded exterior - Integrates seamlessly with other appliances
- CARB compliant, lead-free certified and 100% CFC free
SPECIFICATIONS:
Overview

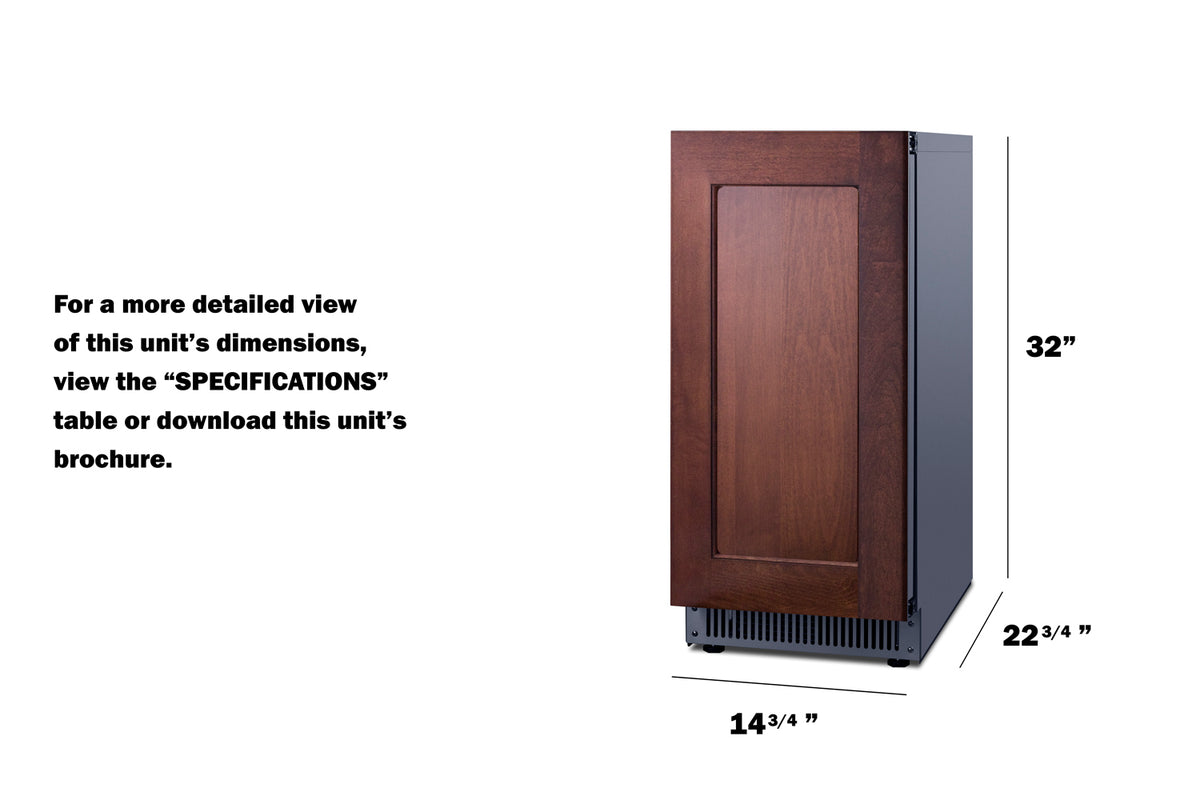

| Height of Cabinet | 32.0" (81 cm), adjustable to 34 1/4" |
| Width | 14.75" (37 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Panel | 23.5" (60 cm) |
| Depth with Door at 90° | 38.13" (97 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 6.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101156200 |
Icemaker
| Door Swing | RHD (reversible) |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 68.0 lbs. (31 kg) |
| Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Ice Shape | Top hat |
| Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes | 3 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| Interior Height | 19.75" (50 cm) |
| Interior Width | 12.25" (31 cm) |
| Interior Depth | 15.5" (39 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES:
| LHD | Door reversal to left hand door swing |
