Details:

Summit 30" Wide Stainless Steel Single Built-In Drawer Refrigerator, Outdoor Approved / SDR301OS

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

The SDR301OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness).

Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen.

Inside, the SDR301OS offers a full 2.5 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

With its fully-featured, weatherproof design, the SDR301OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more.

Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.


FEATURES:

  • 30" wide single drawer refrigerator - 2.5 cu.ft. all-refrigerator in a single drawer style

  • Weatherproof design for outdoor use - Durable construction allows safe installation in outdoor kitchens

  • Commercially approved -  ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

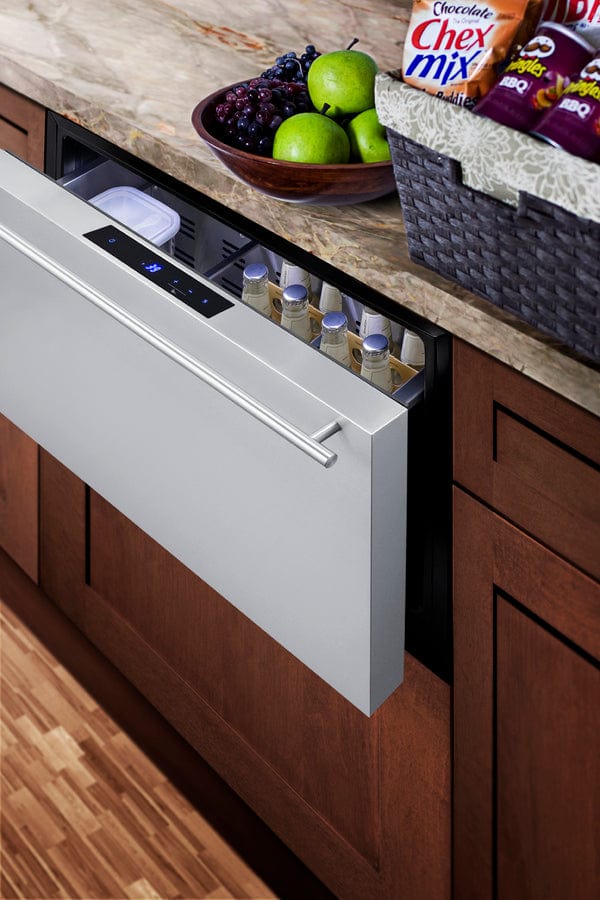

  • Built-in capable - Front-breathing design allows you to build the drawer into cabinetry

  • Panel-ready drawer front - Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)

  • 304 grade stainless steel drawer - Drawer front and interior constructed from stainless steel for added durability and easy cleanability

  • Frost-free operation - Minimum user maintenance with a fully no-frost operation system

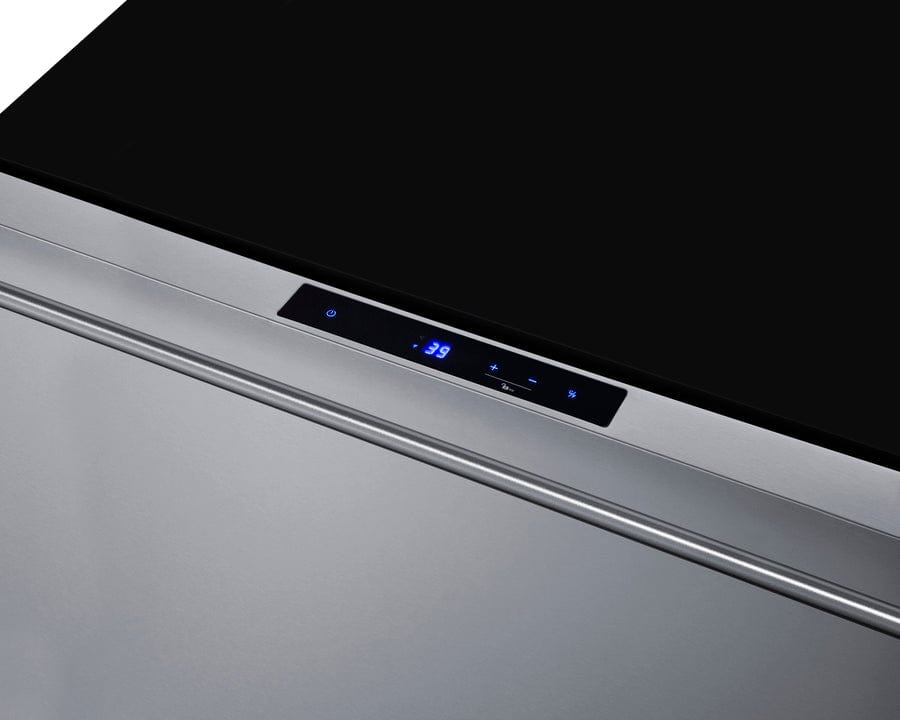

  • Digital thermostat - Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

  • LED lighting - Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

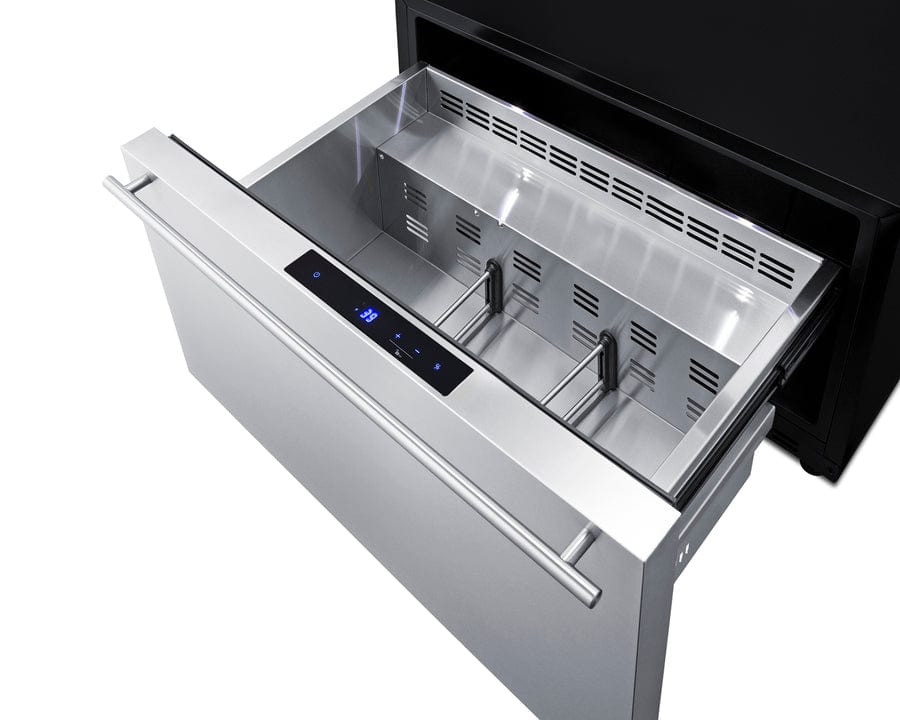

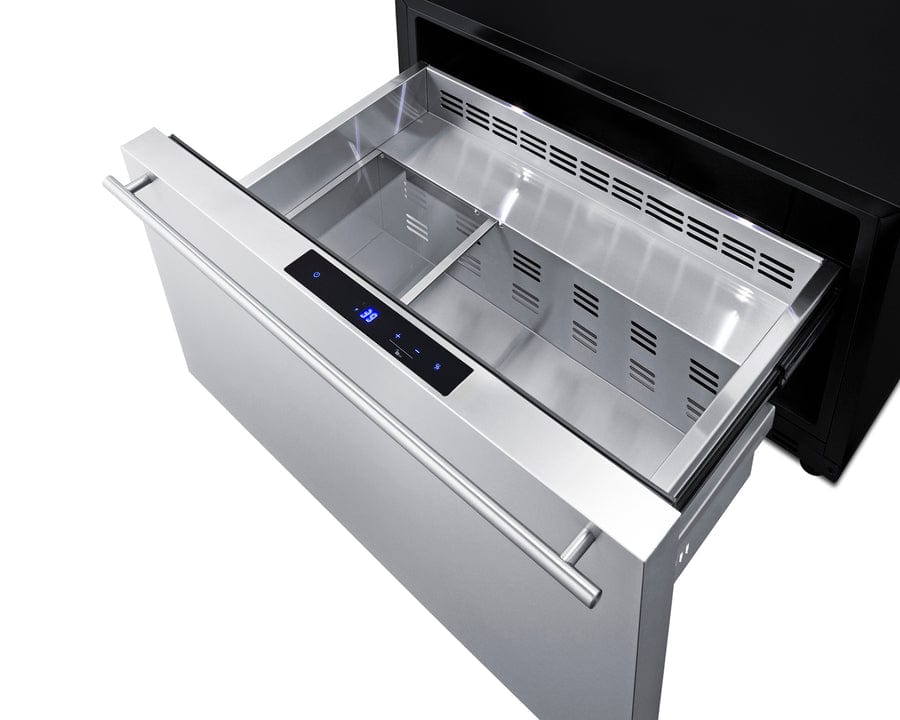

  • Drawer divider - Removable divider makes it easy to organize stored items

  • Glass shelf - Includes one half-sized shelf that lets you create more separation as needed

  • Internal fan - Fan-forced cooling ensures the unit is evenly cooled

  • Temperature Memory Function - Unit will retain its last settings when power is restored in the event of power loss

  • Professional handle - A sleek stainless steel handle adds an elegant touch to any setting

  • Temperature alarm - High temperature alarm sounds if the unit's interior goes out of the recommended range

  • Open drawer alarm - Audible alarm will sound if the drawer is left open longer than one minute

  • Sabbath Mode - Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

  • Child lock - Disables digital controls after two minutes of activity for added safety

  • Sealed back - Space-saving design with no exposed coils for easier cleanability

  • Right angle plug - Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

  • Fully finished black cabinet - Allows the unit to be used freestanding

  • 100% CFC free - Environmentally friendly design without ozone-damaging chemicals

  • CARB Compliant - Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations


SPECIFICATIONS:

Overview

Height of Cabinet 17.75" (45 cm)
Width 29.5" (75 cm)
Depth 22.0" (56 cm)
Depth with Handle 23.5" (60 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 2.5 cu.ft. (71 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 280.0kWh/year
Amps 1
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088990


Refrigerator Features

Sabbath Mode Yes
Door Swing Drawer
Reversible No
Shelf Type Glass
Shelf Qty 1
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92oz.
High Side PSI 270
Low Side PSI 105
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 34.3 dB


Dimensions

Interior Height 13.0" (33 cm)
Interior Width 23.63" (60 cm)
Interior Depth 15.5" (39 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 23.63" (60 cm)
Compressor Step Depth 4.5" (11 cm)


RESOURCES:

BROCHURE
ASSEMBLY DRAWING
USE & CARE
ENERY GUIDE
