Summit Refrigeration + Cooling Summit 24" Wide 2-Drawer All-Freezer, ADA Compliant / ADFD2D24

Details:

Summit 24" Wide Stainless Steel 2-Drawer All-Freezer, ADA Compliant / ADFD2D24

Summit offers unmatched versatility and elegance to meet your indoor and outdoor refrigeration needs.

The ADFD2D24 is a two-drawer all-freezer sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/2 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look (recommended panel dimensions: 23.34" W x 13.93" D at 3/4" thick).

Frost-free operation ensures minimum user maintenance inside the 3.5 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer.

Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features for up to 96 hours during periods of religious observance.

The ADFD2D24 is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching refrigerator, see model ADRD24.

FEATURES:

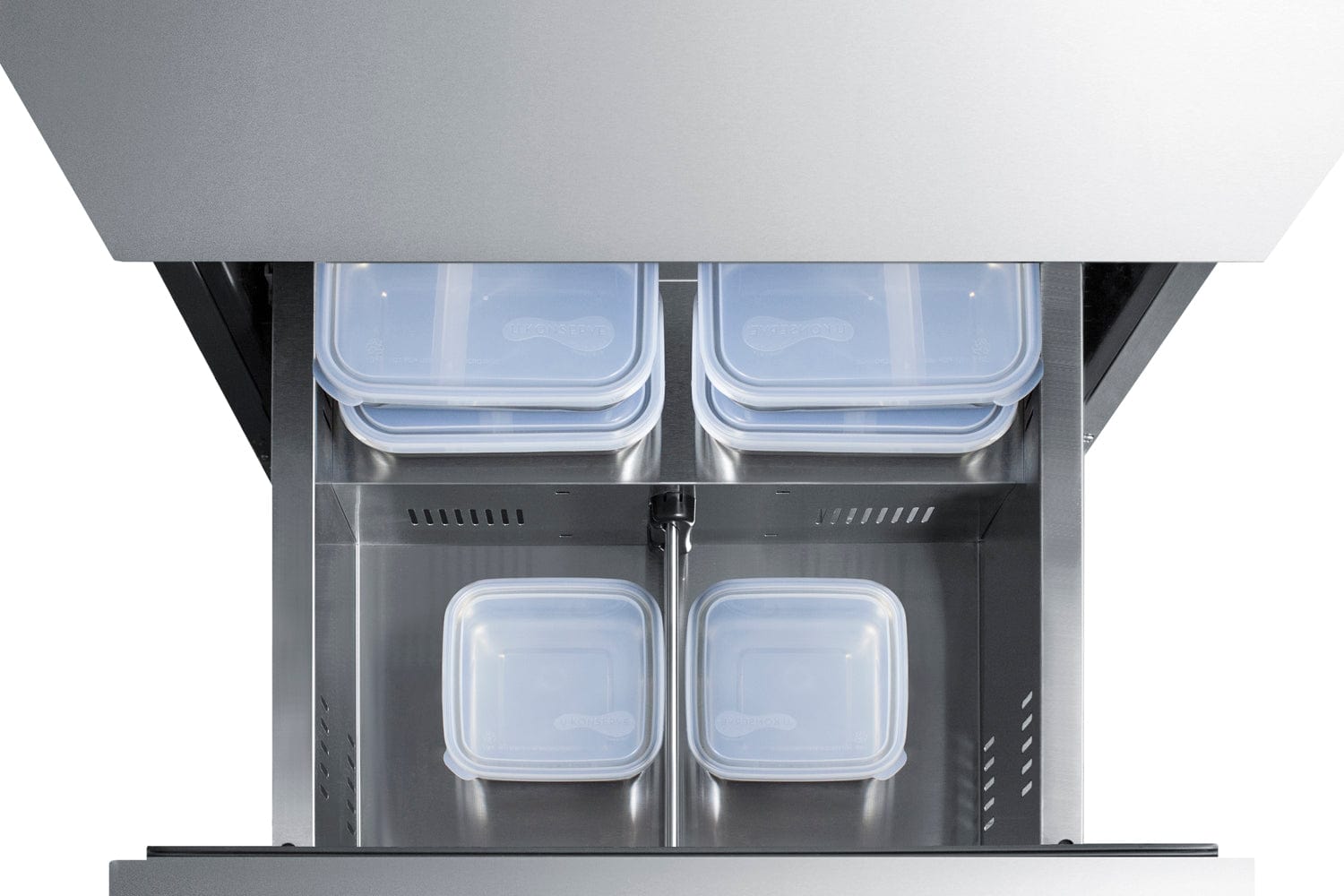

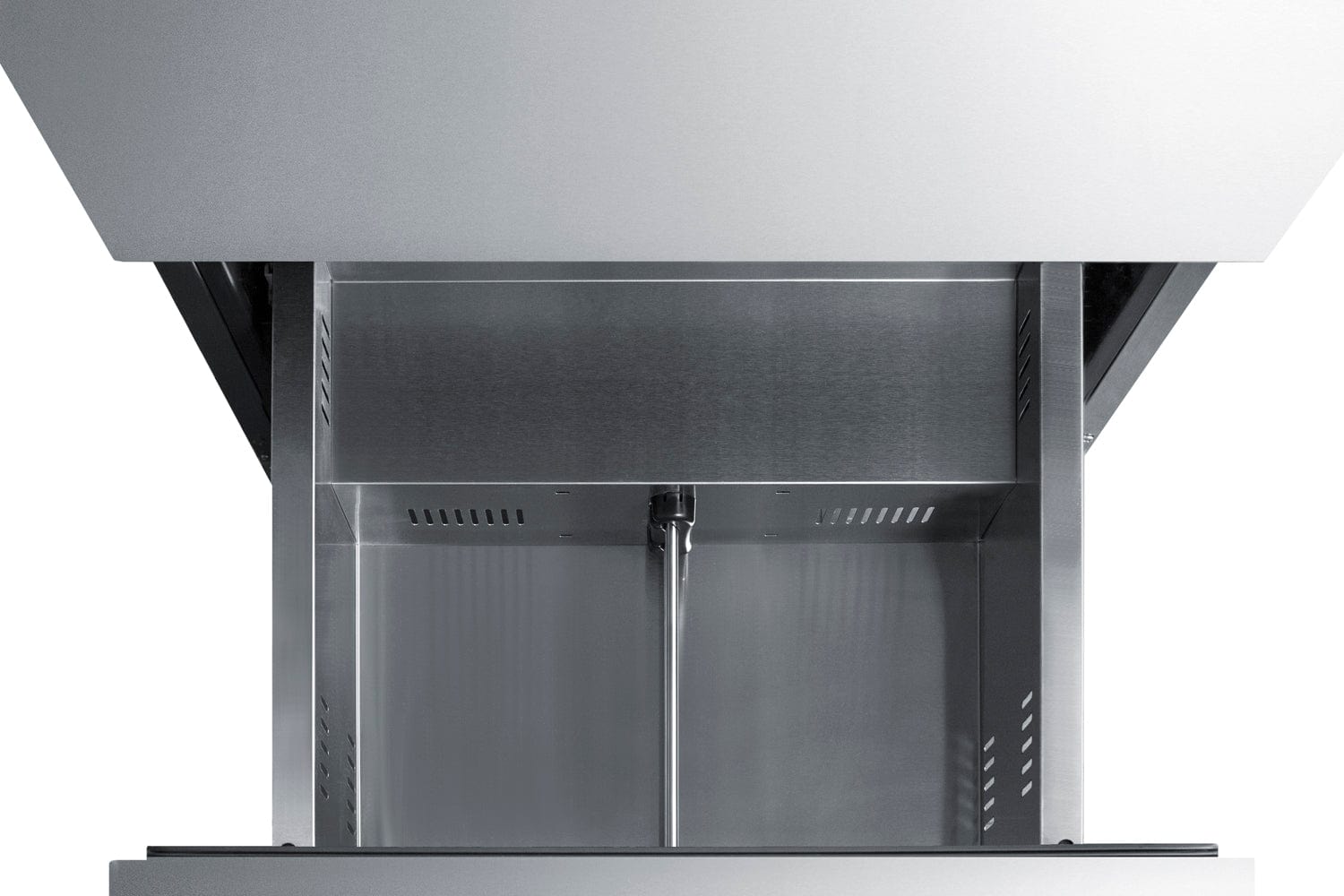

2-Drawer All-Freezer - 24" wide 3.5 cu.ft. undercounter frost-free freezer with two gliding drawers	Drawer dividers - Two adjustable dividers provide flexibility when organizing the interior
ENERGY STAR certified - Ensures unit runs efficiently with an environmentally friendly performance	Removable drawers - Allows for easy cleaning and organization within the interior of the unit
Commercially approved - ETL-S listed to NSF-7 standards for commercial use	Temperature alarm - Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
ADA compliant - 32” height allows for installation within ADA-compliant spaces	Door alarm - Audible alarm sounds if the drawers are left open for more than five minutes
Adjustable height - Unit can be raised to 34.5", with a taller kickplate included for a seamless look	Sabbath mode - Optional feature disables alarms, interior light, and displays for up to 96 hours
Indoor/Outdoor compatible - Durable, weatherproof construction designed to hold up to the elements	Right-angle plug - Flat plug allows unit to sit flush against the wall

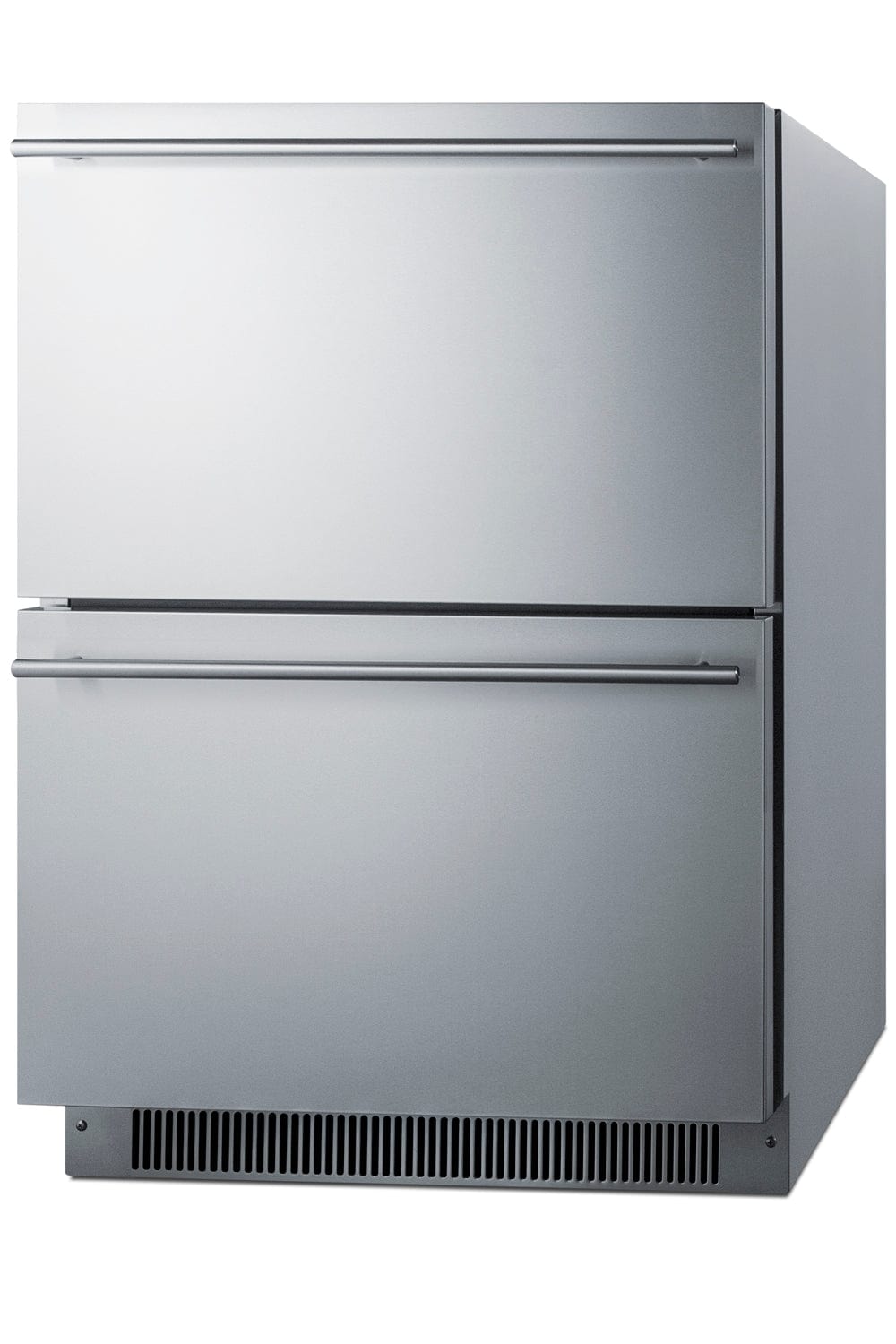

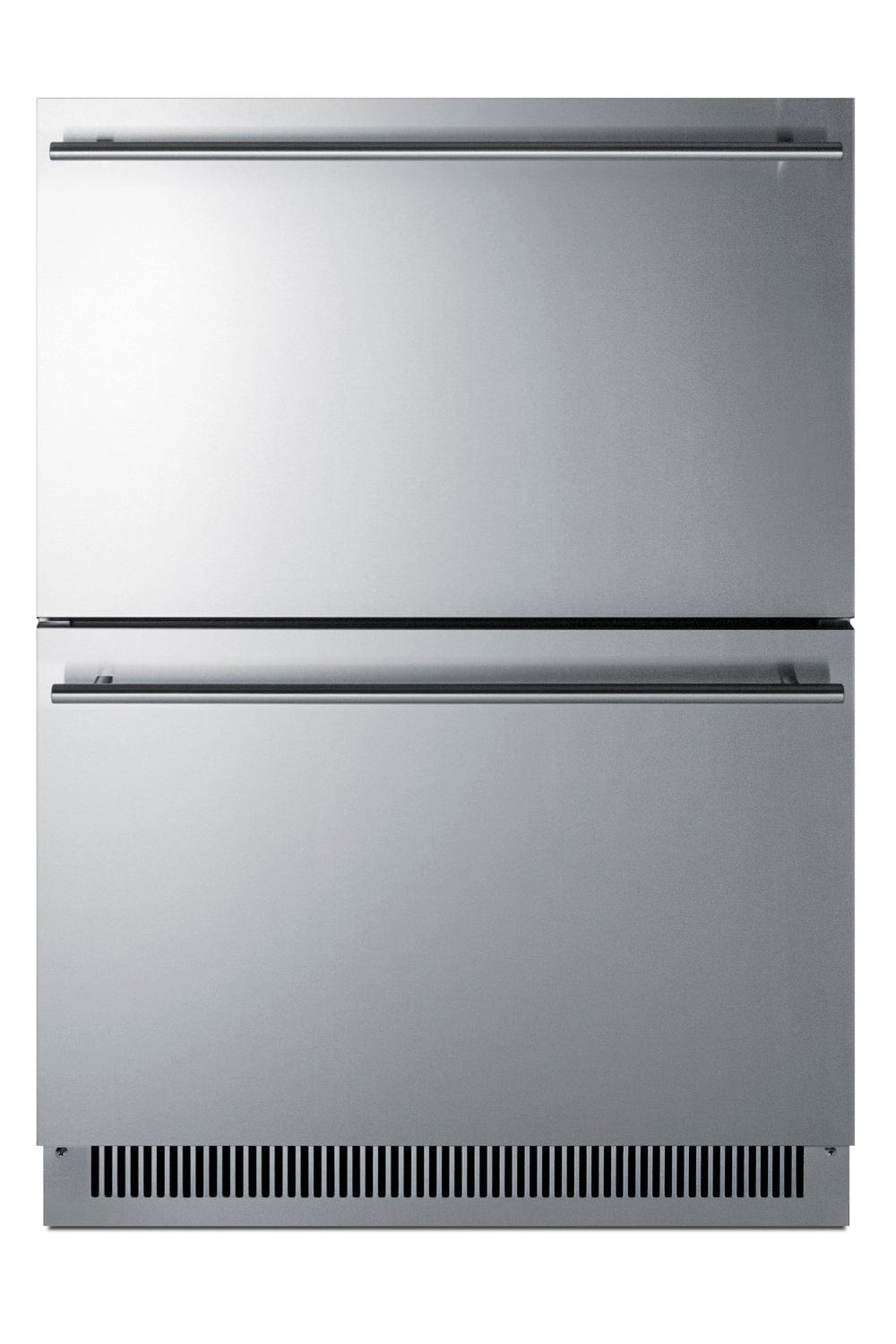

Stainless steel construction - Complete 304 grade stainless steel construction provides durability while maintaining an elegant look	Sealed back - Space-saving design with no exposed coils for easier cleanability

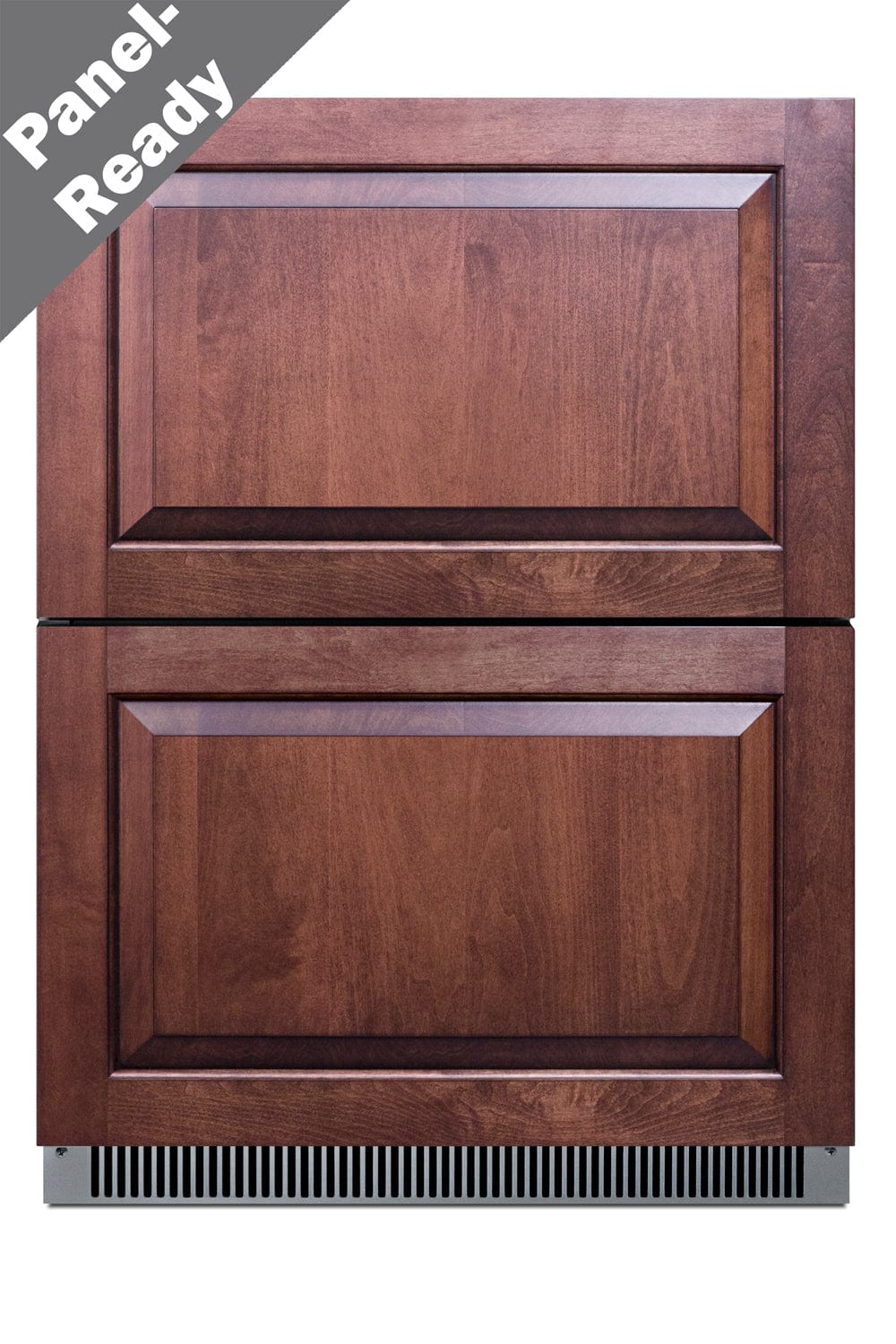

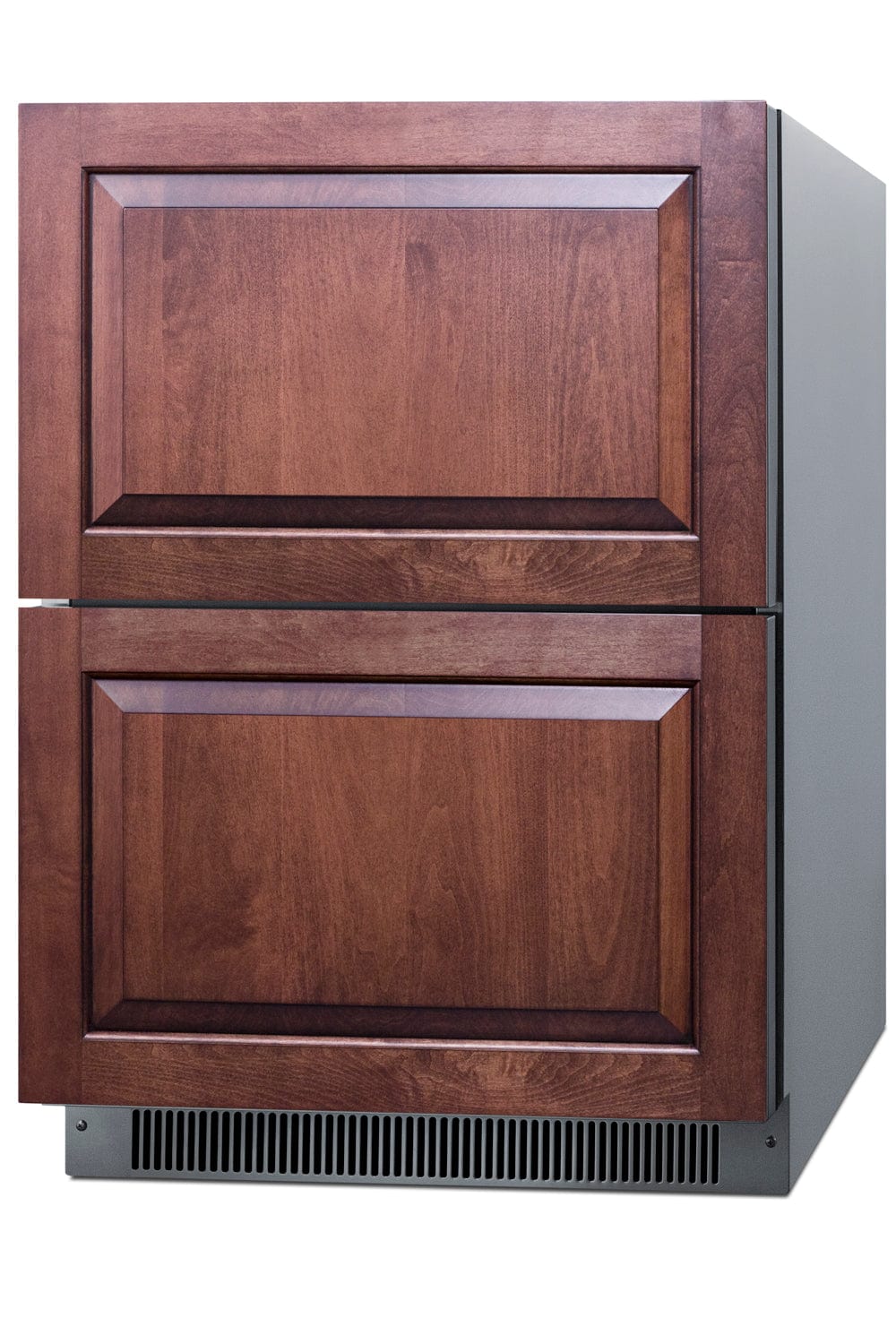

Panel-ready drawer fronts - Drawers can be customized with overlay panels to match or accent existing cabinetry (panel dimensions: 23.34" W x 13.93" D at 3/4" thick)	Fan-forced cooling - Provides for efficient, even cooling of the entire unit
Built-in capable - Front-breathing design allows the unit to be built-in under counters	Temperature memory - Unit will retain temperature settings after losing power
Professional handles - Stainless steel handles add style to any setting	Anti-slam drawers - Soft-close glides prevent drawers from slamming shut for additional durability and safety'
Frost-free - No-frost operation for minimal user maintenance	Anti-tip bracket - Bracket (included) helps prevent tipping for added safety
Interior lighting - Soft LED lighting makes for easy viewing of each drawer’s contents	Fully finished cabinet - Allows the unit to be used freestanding
Digital thermostat - Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit	Matching refrigerator - Pair with the ADRD24 to create the perfect drawer refrigeration set
Digital display - Large display allows for easy readability and unit control	100% CFC free - Environmentally friendly design with no ozone-damaging chemicals

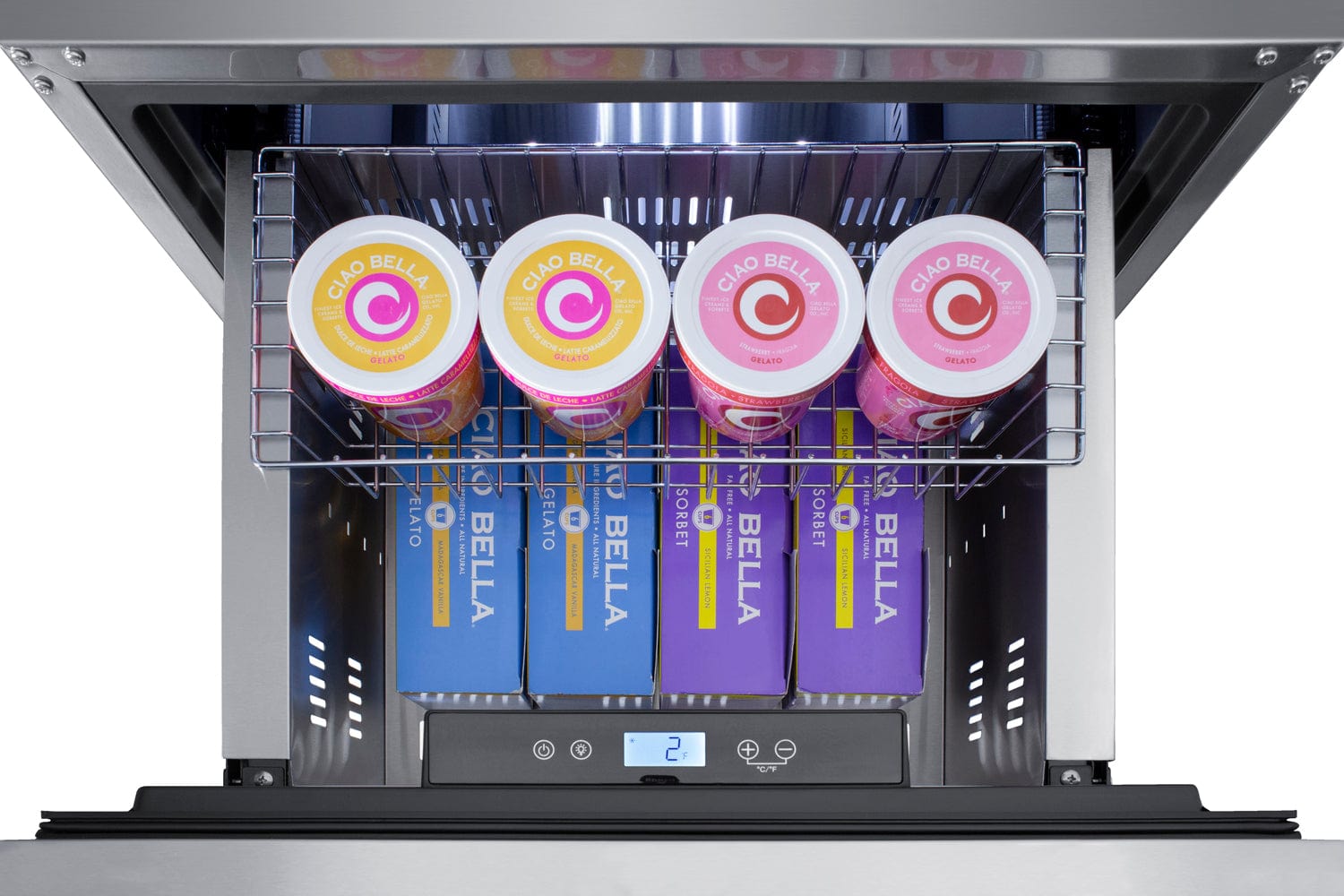

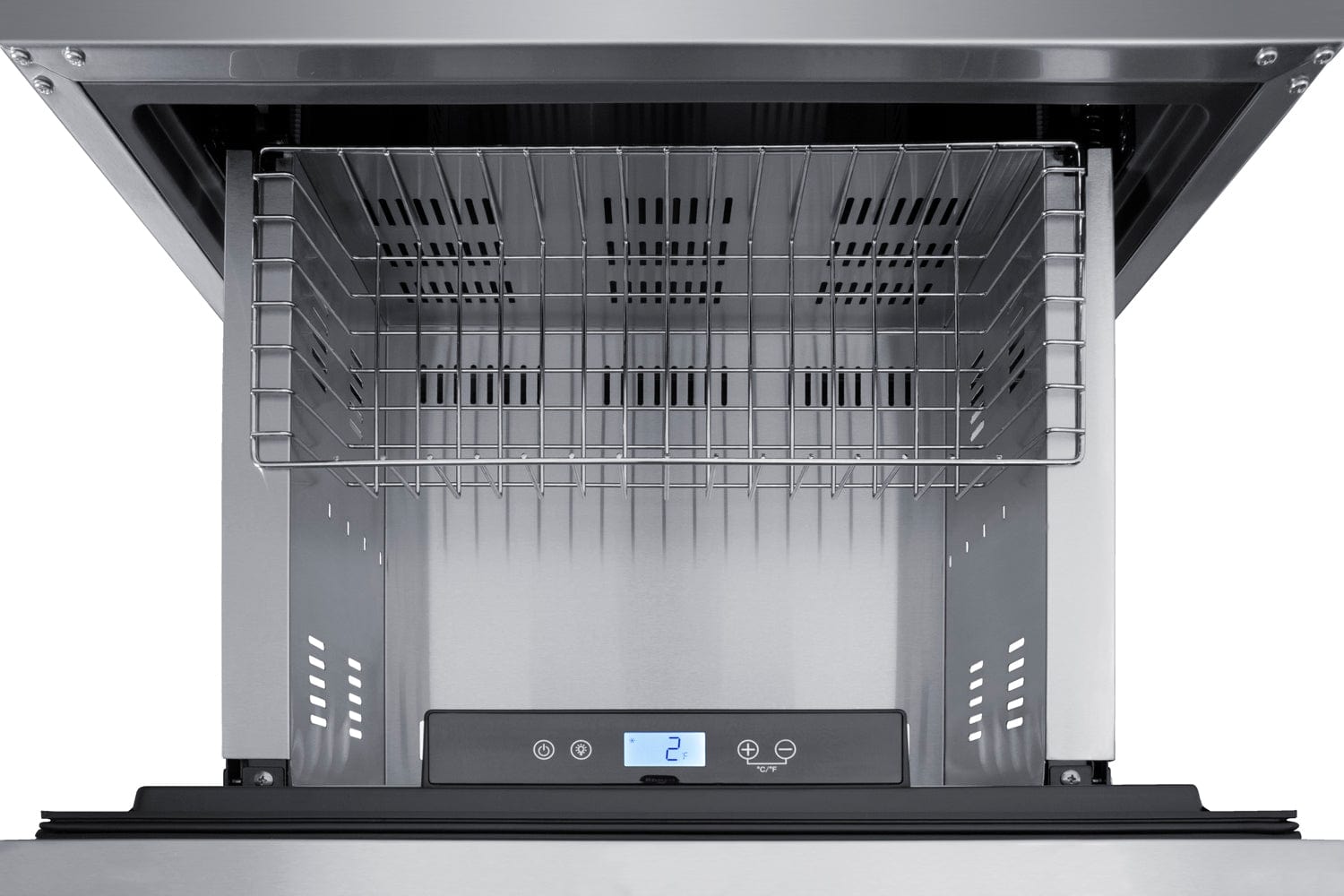

Sliding basket - Removable basket included for additional storage convenience	CARB Compliant - Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS:

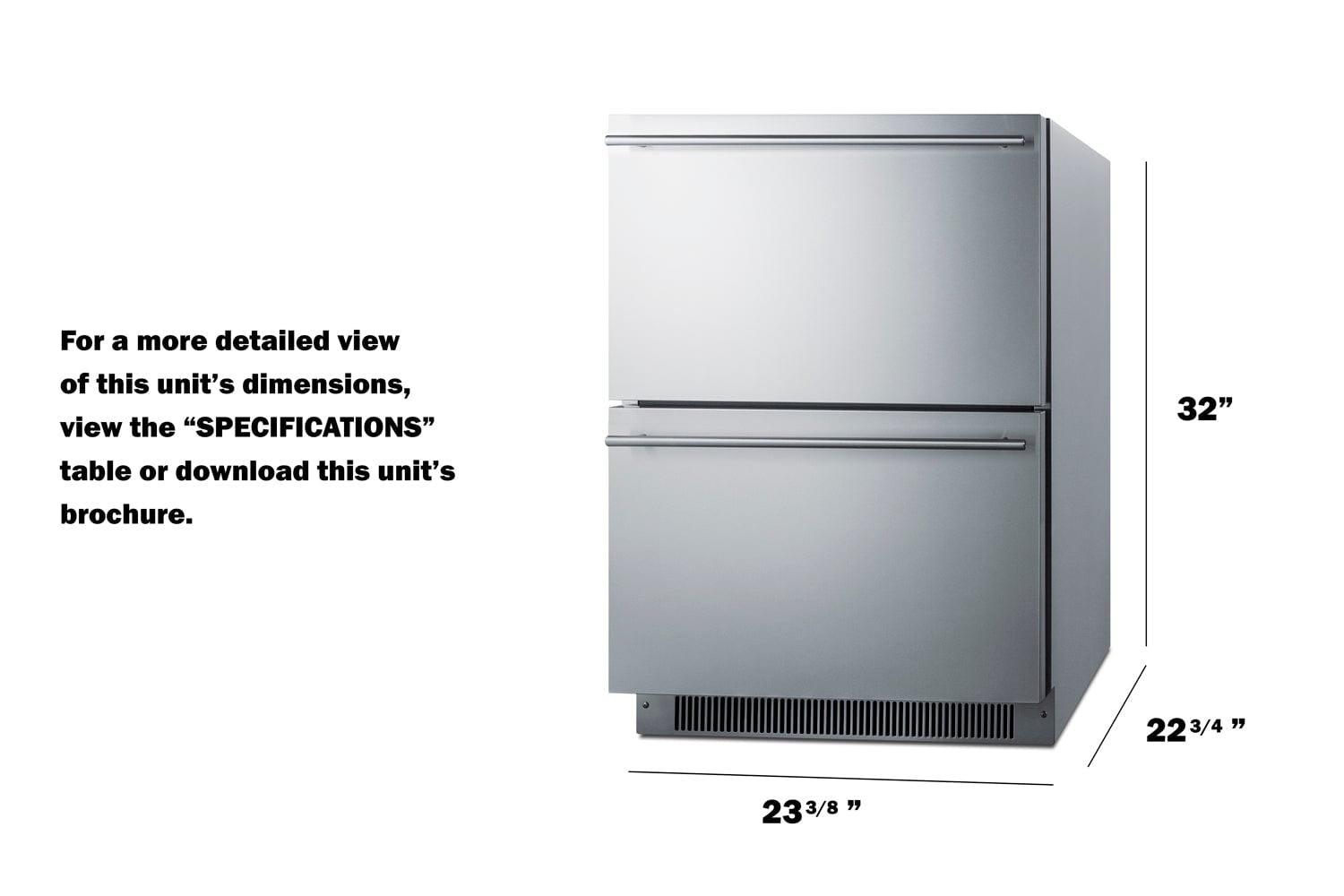

Overview

Height of Cabinet	32.0" (81 cm)
Width	23.38" (59 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	37.88" (96 cm)
Capacity	3.54 cu.ft. (100 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	355.0kWh/year
Amps	1
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101085920

Freezer

Door Swing	Drawer
Height Adjustable	Yes
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.79 oz.
High Side PSI	320
Low Side PSI	120
Level Legs	4
Interior Height - Drawer 1	8.0" (20 cm)
Interior Width - Drawer 1	15.75" (40 cm)
Interior Depth - Drawer 1	14.0" (36 cm)
Interior Height - Drawer 2	8.25" (21 cm)
Interior Width - Drawer 2	15.75" (40 cm)
Interior Depth - Drawer 2	14.0" (36 cm)
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	15.75" (40 cm)
Compressor Step Depth	4.13" (10 cm)
Temperature Range	-11°F to +10°F(-24°C to -12°C)
