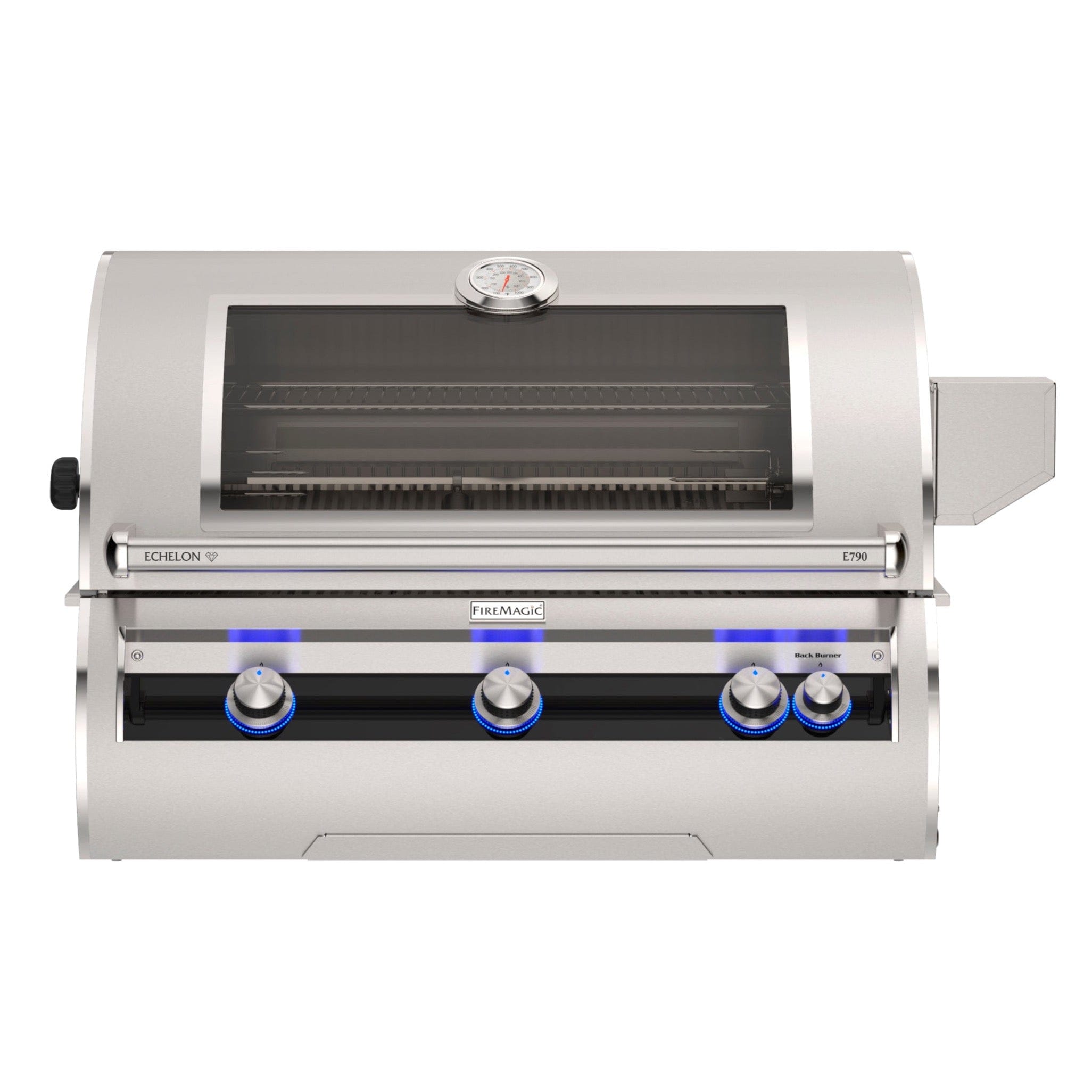

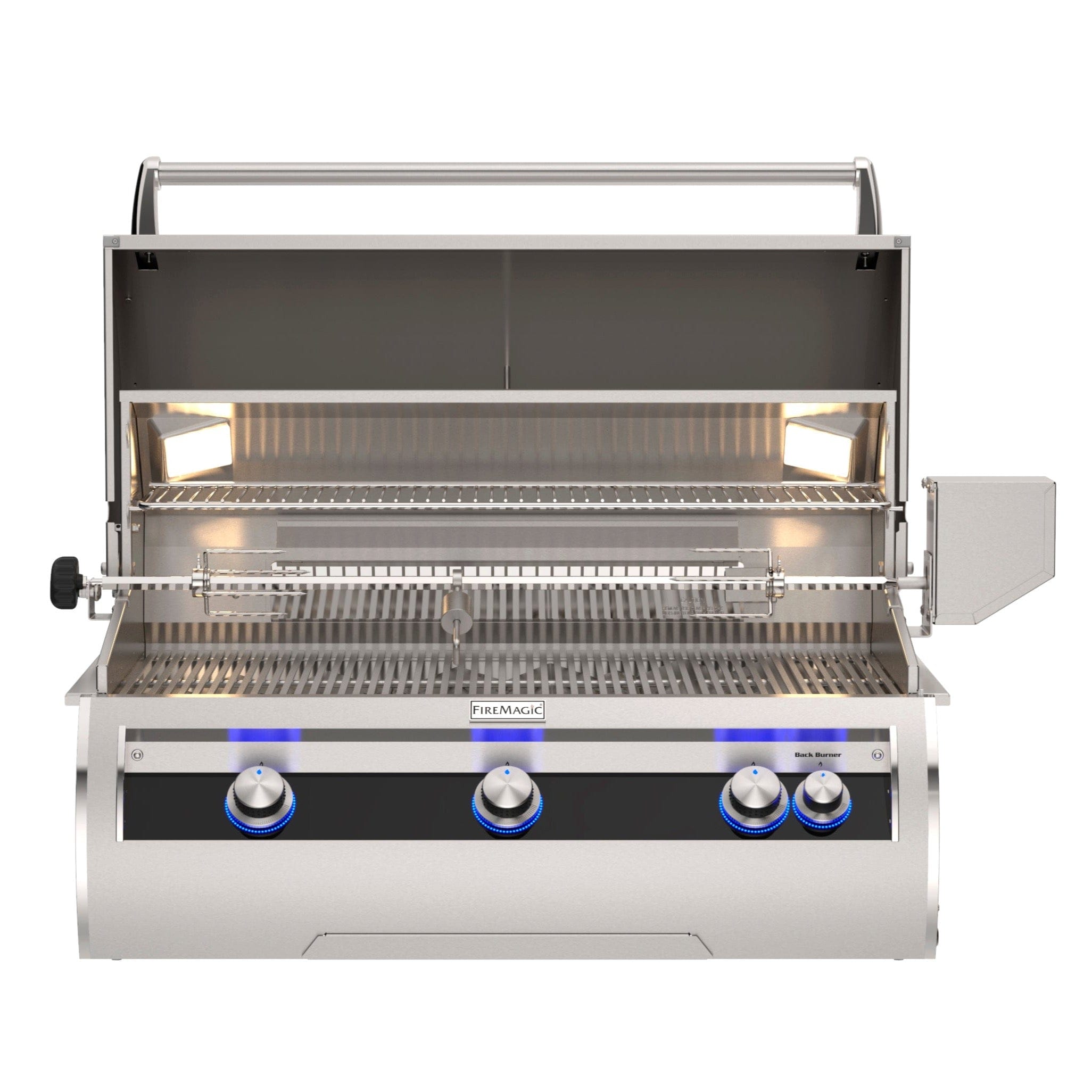

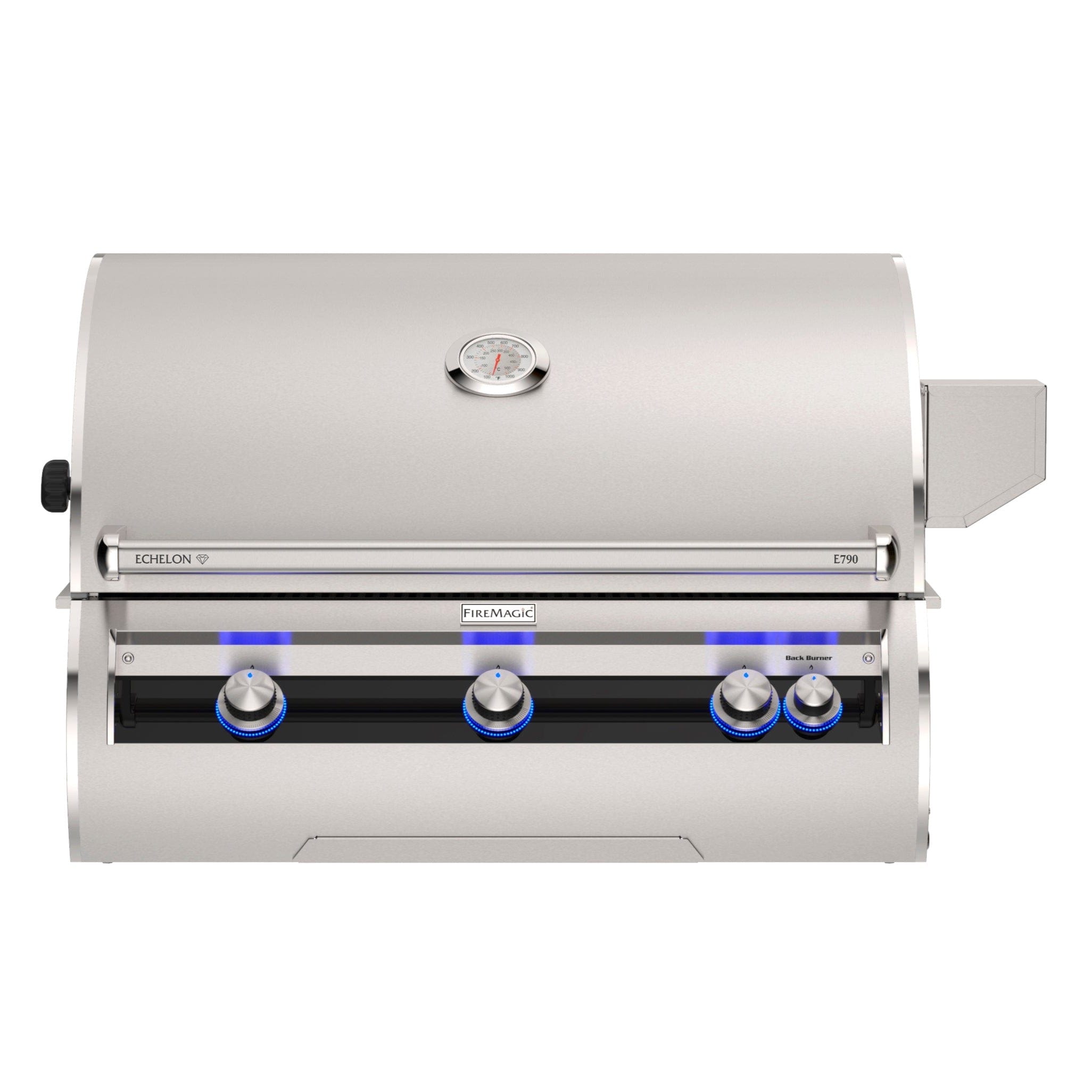

Fire Magic Echelon Diamond 36" Built-In Grill with Rotisserie and Analog Thermometer / E790i-9EAN(P), E790i-9LAN(P), E790i-9EAN(P)-W, E790i-9LAN(P)-W

When only the best will do, our flagship Fire Magic® Echelon Diamond combines the ultimate in performance, beauty and innovation. With sleek lines highlighted by a modern black glass panel, an analog for consistent monitoring. Cast stainless steel burners power an innovative heat distribution system topped with patented Diamond Sear cooking grids to truly elevate the outdoor cooking experience. The Echelon Diamond defines luxury in grilling.


Grill Features:

• DIAMOND SEAR COOKING GRIDS - Diamond Sear Cooking Grids are superior! Diamond Sear Cooking Grids have a patented* design with bars that have a smooth flat top; each individual bar measures over .35” wide at the top covering over one half of the total cooking surface. Each bar is shaped to optimally transfer the heat from the burners to the cooking surface so food cooks faster and more evenly!

• FLAVOR GRIDS - Flavor Grids perform by allowing heat to rise unobstructed from the burner to cooking grids. They disperse heat quickly and evenly flavor the food by vaporizing juices and minimizing flare ups and grease fires. They are also easy to clean and maintain.
• CAST STAINLESS STEEL BURNERS - Burners Made of ¼” Thick Cast 304 Stainless Steel 304 grade burners weighing up to 12 lbs, featuring a lifetime warranty. Designed with a protective lip above the ports to prevent clogging from grease. Guaranteed for life.
• ANGLED HALOGEN INTERNAL LIGHTS - The Echelon Diamond E660 and E790 grills have 2 internal halogen lamps. The E1060 grill has 3 lamps.
• 90 DEGREE DOUBLE WALLED HOOD - Double walled 304 stainless steel oven provides efficient heat retention for even heating. The oven opens to 90 degrees for easy access and efficient exhaust. The Teflon coated spring assist makes opening the oven smooth and accessible for all.
• COMFORT TOUCH KNOBS WITH BRUSHED FINISH - Smooth, seamless lines with a brushed finish that feature back-lit knobs (at 41°). Comfort touch grips and flame icons for convenience and safety (flame turns red when on) make grilling easy.
• ECHELON DRIP TRAY ANALOG - Built with ball bearings for easy glide. Perfect size for easy handling. Use with Fire Magic drip tray liners for convenient cleanup.
• ANALOG THERMOMETER - Analog Thermometer with polished stainless steel bezel is embedded in the hood. It is large and attractive with a forward angle for easy viewing.

Specs:

• High-efficiency backburner & rotisserie kit
• Diamond Sear cooking grids
• Back-lit control knobs
• 120 VAC/12 Volt Hot Surface Ignition
• Charcoal/Smoker Basket included
• Angled, interior halogen lights
• Cast S.S. burners
• Cooking Surface: 36″w x 22″d (792 sq. in.)
• Warming Rack: 36″w x 8″d (288 sq. in.)
• Main burners: 96,000 BTU’s
• Backburner: 13,000 BTU’s
• Cutout Area: 37″w x 23 1/2” d x 11 1/2″ h
• Shipping weight: 275 lbs.
• Carton dimensions: 441⁄2"L x 311⁄4"W x 331⁄2"H

Resources
Manual
Drawing
Specifications
