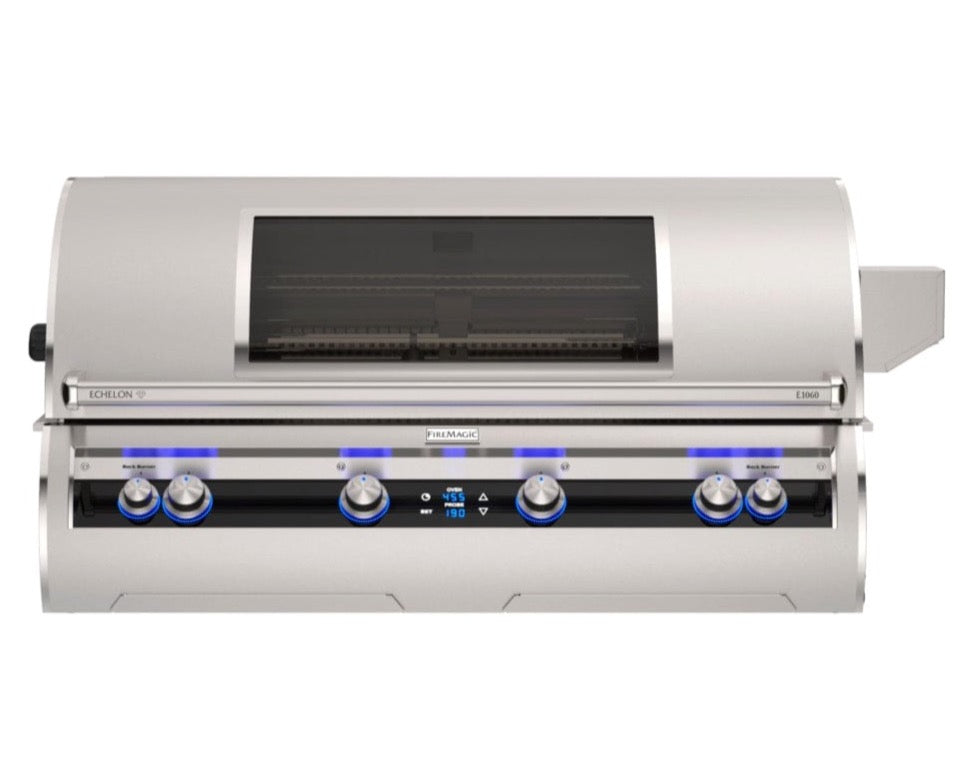

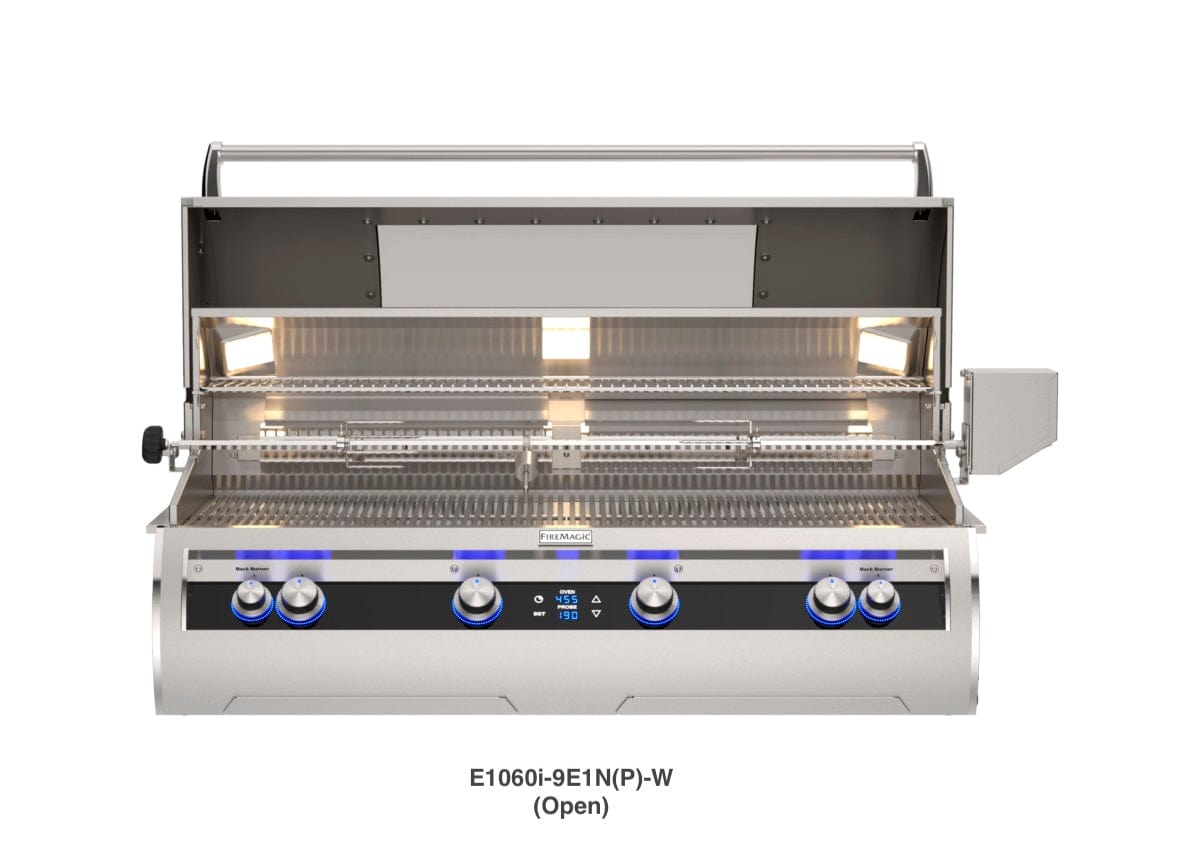

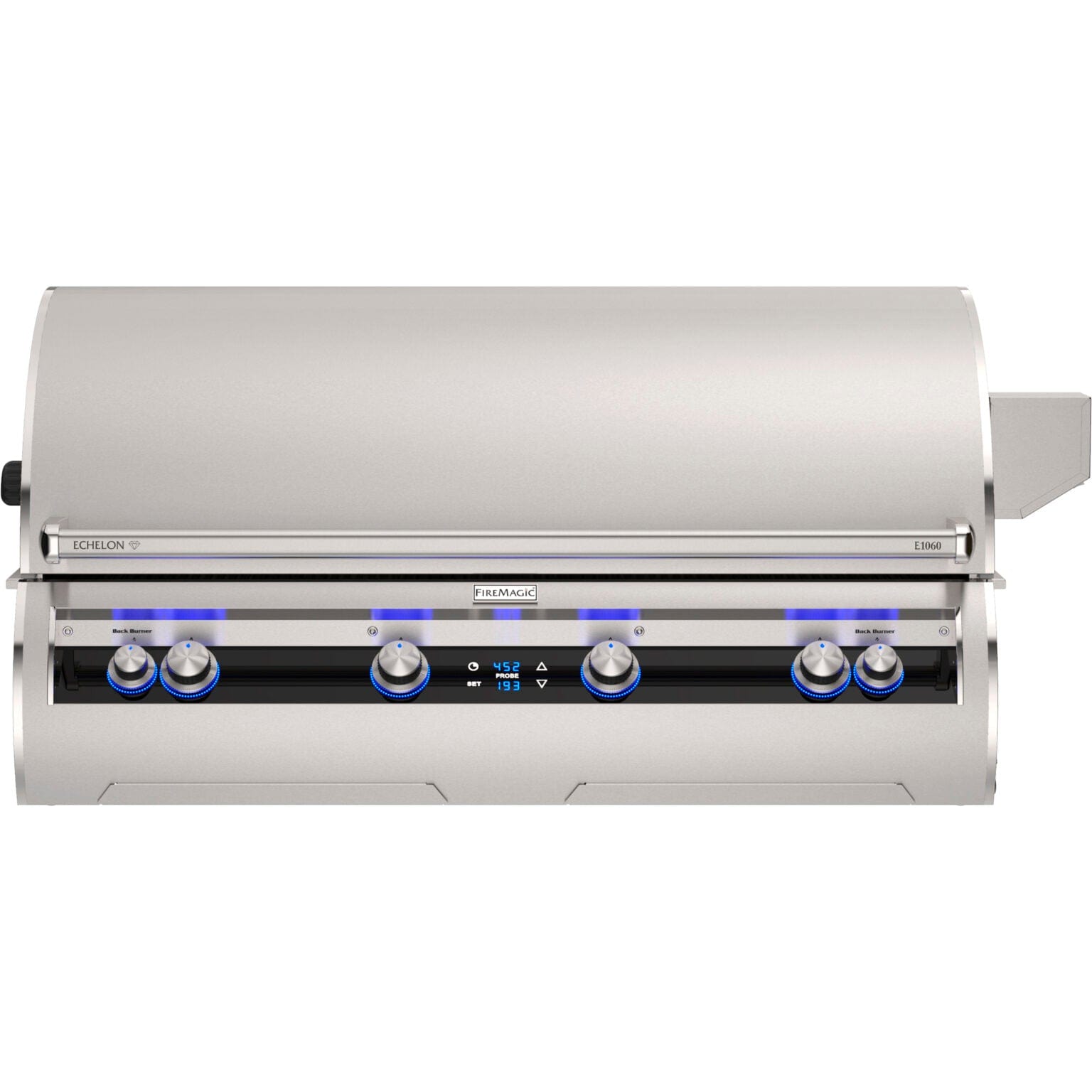

Fire Magic Echelon Diamond 48" Built-In Grill with Rotisserie and Digital Thermometer / E1060i-9E1N(P), E1060i-9L1N(P), E1060i-9E1N(P)-W, E1060i-9L1N(P)-W

When only the best will do, our flagship Fire Magic® Echelon Diamond combines the ultimate in performance, beauty and innovation. With sleek lines highlighted by a modern black glass control panel with a digital touchscreen operation and bluetooth remote capability. Cast stainless steel burners power an innovative heat distribution system topped with patented Diamond Sear cooking grids to truly elevate the outdoor cooking experience. The Echelon Diamond defines luxury in grilling.


Grill Features:

• DIGITAL UNDERGLASS THERMOMETER - The State-of-the-art underglass electronic thermometer display has an impressive array of features including digital thermometer and integrated smart technology that allows remote monitoring from a smartphone.
• DIAMOND SEAR COOKING GRIDS - Diamond Sear Cooking Grids are superior! Diamond Sear Cooking Grids have a patented* design with bars that have a smooth flat top; each individual bar measures over .35” wide at the top covering over one half of the total cooking surface. Each bar is shaped to optimally transfer the heat from the burners to the cooking surface so food cooks faster and more evenly!
• FLAVOR GRIDS - Flavor Grids perform by allowing heat to rise unobstructed from the burner to cooking grids. They disperse heat quickly and evenly flavor the food by vaporizing juices and minimizing flare ups and grease fires. They are also easy to clean and maintain.
• CAST STAINLESS STEEL BURNERS - Burners Made of ¼” Thick Cast 304 Stainless Steel 304 grade burners weighing up to 12 lbs, featuring a lifetime warranty. Designed with a protective lip above the ports to prevent clogging from grease. Guaranteed for life.
• ANGLED HALOGEN INTERNAL LIGHTS - The Echelon Diamond E660 and E790 grills have 2 internal halogen lamps. The E1060 grill has 3 lamps.
• DIGITAL MEAT PROBE - The Fire Magic digital meat probe reads the internal temperature of your meat. Keep the probe in your meat while it is grilling and read the temperature on the face of the grill, or you can read it on your smart phone device.
• RECESSED INFRARED BACKBURNER - The Fire Magic Infrared Backburner is a stainless steel mesh encased efficient ceramic system which provides much more BTU heat for quicker more efficient rotisserie grilling. It includes a Stainless Steel Cover to protect the back burner when not in use.
• ECHELON DRIP TRAY - Built with ball bearings for easy glide. Perfect size for easy handling. Use with Fire Magic drip tray liners for convenient cleanup.

Specs:

• Two (2) High-efficiency backburners & rotisserie kit
• Diamond Sear cooking grids
• Back-lit control knobs
• 120 VAC/12 Volt Hot Surface Ignition
• Charcoal/Smoker Basket included
• Angled, interior halogen lights
• Cast S.S. burners
• Cooking Area: 48″w x 22″d (1,056 sq. in.)
• Warming Rack: 48″w x 8″d (384 sq. in.)
• Main burners: 112,000 BTU’s
• Backburner: 22,000 BTU’s
• Cutout size: 50″w x 23 1/2” d x 11 1/2″ h
• Shipping weight: 350 lbs.
• Carton dimensions: 601⁄4"L x 321⁄2"W x 33"H
