Summit 15" Wide 62 Lb. Built-In Undercounter Commercially Listed Indoor/Outdoor Clear Icemaker with Gravity Drain and Panel ready Door / BIM68OSGDRIF




    Summit 15" Wide 62 Lb. Built-In Undercounter Commercially Listed Indoor/Outdoor Clear Icemaker with Gravity Drain and Panel ready Door / BIM68OSGDRIF

    Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.

    Sized at 15" wide, the BIM68OSGDRIF features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The door is designed with a powerful magnetic gasket to ensure proper insulation. An integrated stainless steel door frame is designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry decor (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick). The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. This model utilizes a gravity drain system.

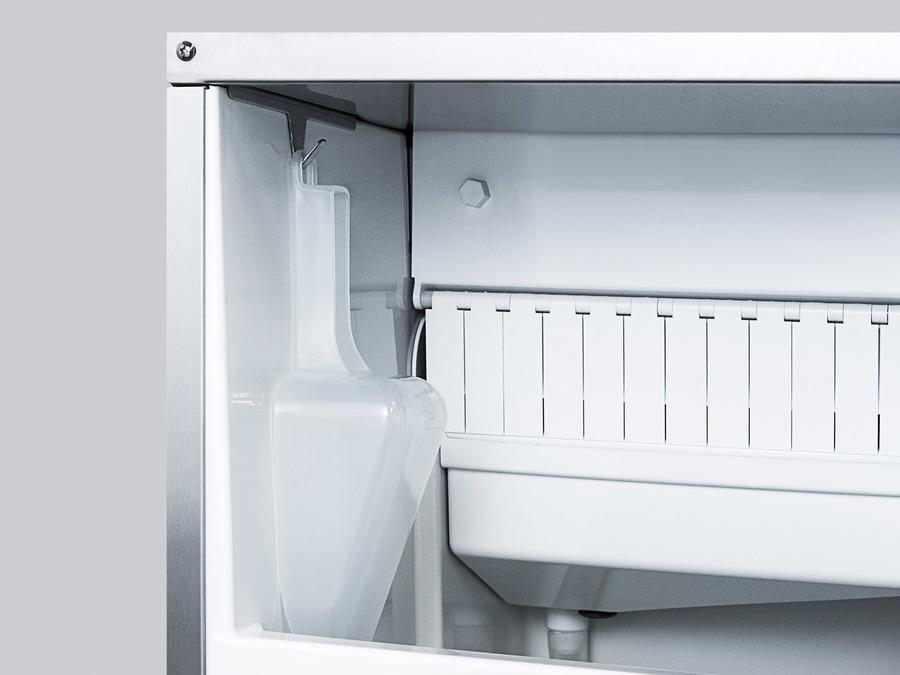

    The BIM68OSGDRIF produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior.

    Designed and manufactured for us in South Korea, the BIM68OSGDRIF is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. For this unit with an internal pump, see the BIM68OSPUMPIF.

    NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.



    100% CFC free - Environmentally friendly design without ozone-damaging chemicals Fully finished cabinet - Allows the unit to be used freestanding
    62 lb. production capacity - Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span Gravity drain setup - Requires connection to gravity drain
    Built-in capable - Make the best use of space by installing your icemaker under the counter and flush with other cabinets Panel-ready door - Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
    Clear ice cube production - Gourmet style rounded dice-style ice cubes Sealed back - Space-saving design with easier cleanability
    Commercially approved - ETL-S listed to NSF-12 commercial standards for use in foodservice settings Stainless steel wrapped exterior - Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance
    Factory-reversible door - Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible Standard water hookup - Operates with a standard 1/4” OD water supply line
    Frost-free operation - No-frost operation for minimum user maintenance Weatherproof design - Durable construction for safe installation in outdoor kitchens





    Height of Cabinet 33.5" (85 cm)
    Height to Hinge Cap 33.63" (85 cm)
    Width 14.88" (38 cm)
    Depth 22.63" (57 cm)
    Depth with door at 90° 37.25" (95 cm)
    Capacity 0.98 cu.ft. (28 L)
    Defrost Type Frost-Free
    Door Panel-Ready
    Cabinet Stainless Steel
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Sanitation ETL-S
    Amps 4
    Voltage/Frequency 115 V AC/60 Hz
    Weight 105.0 lbs. (48 kg)
    Shipping Weight 110.0 lbs. (50 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101061801


    Door Swing RHD
    Reversible Factory Reversible
    Daily Ice Production 62.0 lbs. (28 kg)
    Ice Storage Capacity 26.0 lbs. (12 kg)
    Size of Cube 1 1/4" H x 1 1/8" W x 1 1/8" D
    Number of Ice Cube Sizes 1
    Fan Type Exterior
    Refrigerant Type R134a
    Refrigerant Amount 7.4 oz.
    High Side PSI 210
    Low Side PSI 102
    Interior Height 12.75" (32 cm)
    Interior Width 12.75" (32 cm)
    Interior Depth 9.25" (23 cm)
    Level Legs 4




    LHD - Left hand door swing
    Door reversal to left hand swing
